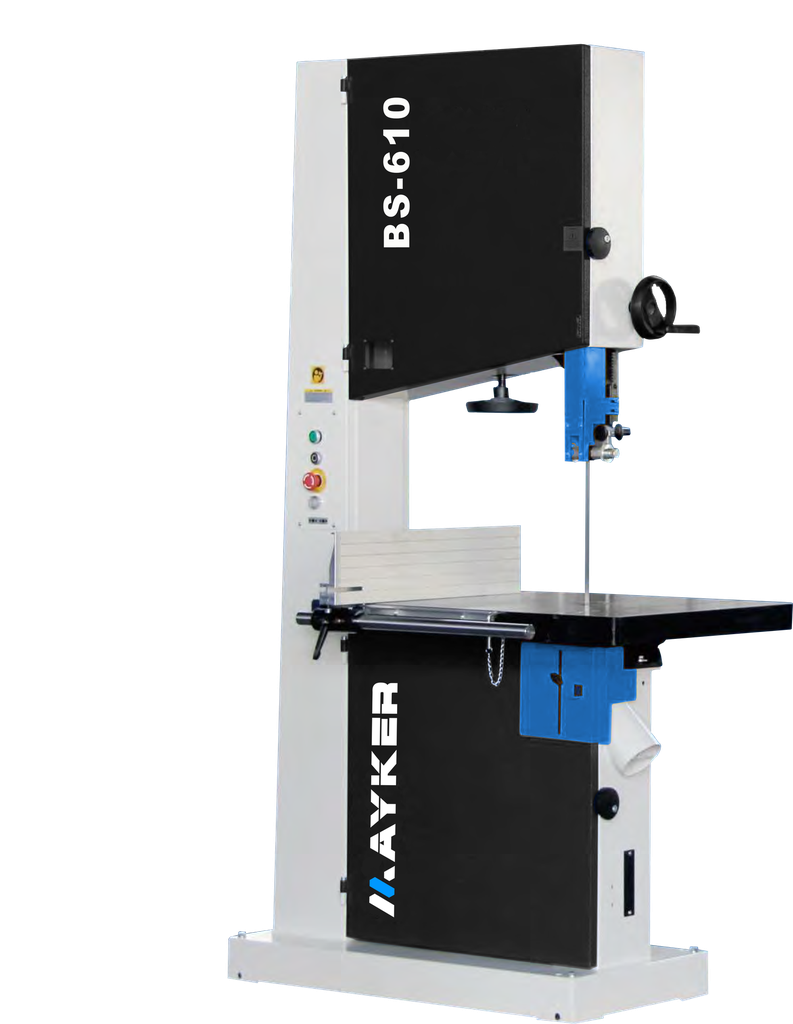

Mayker BS-610 Bandsaw
Industrial-Grade Performance and Precision
The BS-610 Bandsaw is engineered for industrial use, delivering high tension, precision, and exceptional cutting performance. Designed with a heavy-duty box-style welded spine, it withstands high tension from resaw blades and allows blades to be tensioned to 20,000 psi for cleaner, faster cuts and superior finishes. Perfect for larger workshop needs, this 24" bandsaw ensures long-lasting performance and reliability.
- Depth of Cut: 370 mm
- Throat Width: 580 mm
- Wheel Diameter: 600 mm
- Power: 415V, 50Hz, 5.5 HP
Featuring solid cast iron bandwheels, a reliable dual-support blade tension system, and European industrial roller blade guides, the BS-610 guarantees accuracy and durability. Oversized casting trunnions enhance stability, while the table tilt mechanism ensures easy operation for versatile cutting tasks.
Specifications – BS-610
| Feature | Specification |
|---|---|
| Blade Length | 4,470 mm |
| Blade Width | 10–35 mm |
| Blade Speed | 1,500 m/min |
| Max Depth of Cut | 370 mm |
| Throat Width | 580 mm |
| Table Size | 700x608 mm |
| Table Tilt | 0–20° |
| Bandsaw Wheel Diameter | 610 mm |
| Motor Power Output | 4 kW S1 (5.5 HP) |
| Brake | Magnet Motor Brake: N/A |
| Foot Brake: N/A | |
| Extractor Port Diameter | 2x100 mm |
| Net/Gross Weight | 323/359 kg |
| Package Size | 1,119x777x2,070 mm |
| Container Load Qty | 20' Container: 14 |
| 40'GP Container: 28 |
