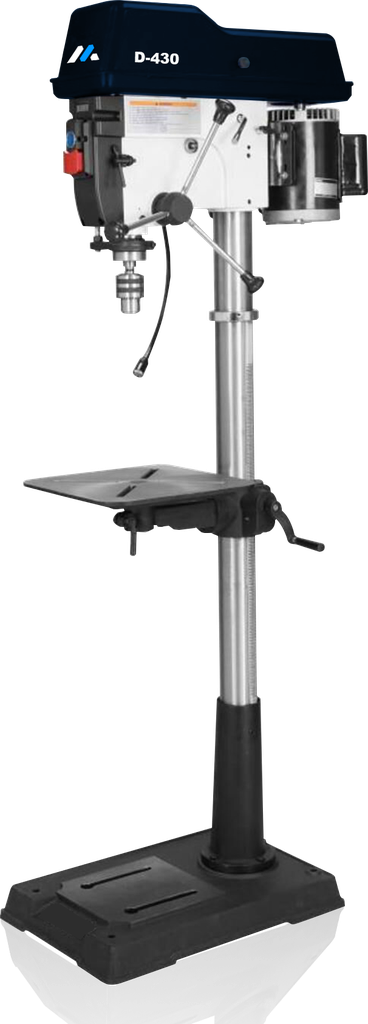

Mayker D-430 Drill Press
Precision Meets Power
The D-430 Variable Speed Drill Press is an excellent choice for small to medium-sized workshops, offering heavy-duty drilling with precision and reliability. Powered by a 1.5HP motor and equipped with a full 6" spindle travel, this machine is perfect for all-around workshop use. Its variable speed drive system provides a stepless range of 190–2000 RPM (50Hz), ensuring smooth and consistent performance.
- Drill Capacity: 25mm
- Chuck Capacity: 20mm
- Speed Range: 190–2000 RPM (50Hz)
- Spindle Travel: 150mm
Designed with a sturdy cast iron head and an adjustable table with a clamping edge, the D-430 delivers exceptional support and usability. An integrated LED work light ensures a shadow-free workspace, making it a versatile and reliable choice for any workshop setup.
Specifications – D-430
| Feature | Specification |
|---|---|
| Drill Capacity | 25mm |
| Chuck Capacity | 20mm |
| Collar Diameter (US/EU) | 66/72mm |
| Swing | 17" |
| Spindle Taper (US/EU) | MT2 / MT3 |
| Speed Range (50Hz) | 190–2000 RPM |
| Speed Range (60Hz) | 200–2200 RPM |
| Spindle Travel | 150mm |
| Column Diameter | 80mm |
| Base Size | 580x415mm |
| Table Size | 356x356mm |
| Motor Power Output | 1.5HP |
| Height | 1820mm |
| Net/Gross Weight | 84kg / 90kg |
| Packing Size | 1525x691x278mm |
| Container Load Qty | 20' Container: 88/77 (w/pallets) |
| 40'GP Container: 192/161 (w/pallets) | |
| 40'HQ Container: 216/207 (w/pallets) |
