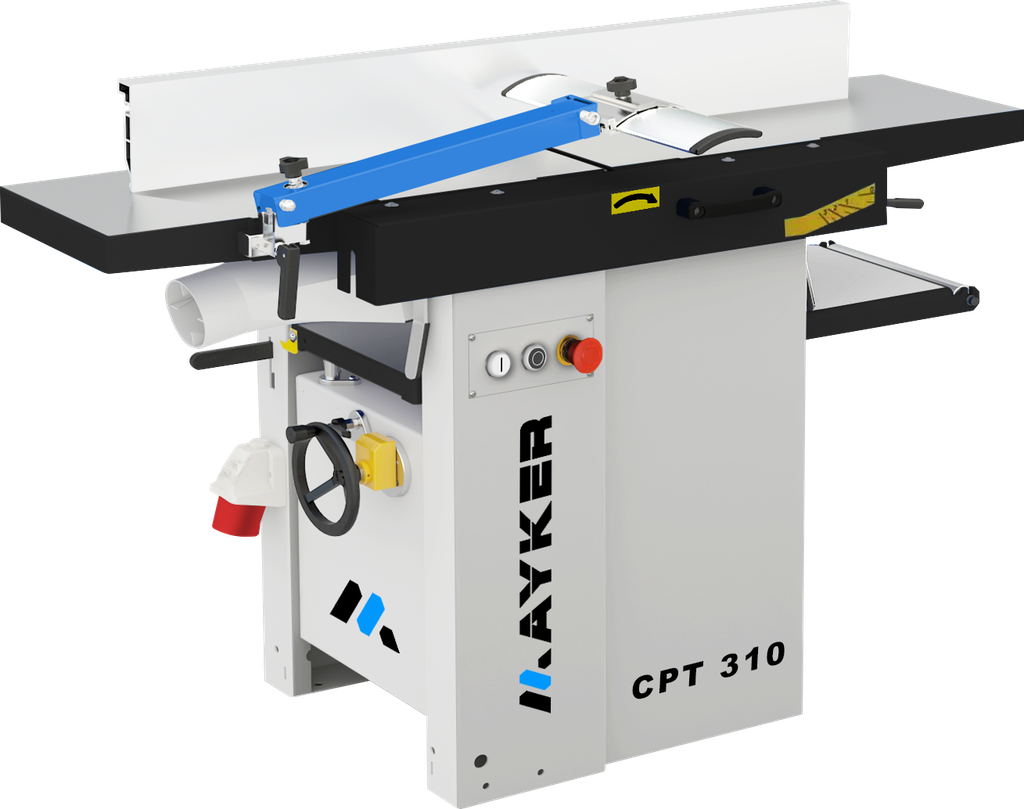

Mayker CPT 310 Combination
Compact and Versatile Woodworking Solution
The CPT 310 Planer/Thicknesser is a versatile, powerful machine designed for serious woodworkers and busy trade workshops. Featuring a 310 x 255mm capacity, this machine simplifies the transition from surface planing to thicknessing with its single-handed table lift. Its sturdy central column ensures stability, while the large aluminum extruded fence provides precision and ease of use for a variety of projects.
- Feed Speed: 7m/min
- Maximum Thickness Height: 225mm
- Maximum Thickness Width: 310mm
- Power Options: Single-phase or three-phase motors
Equipped with a built-in dust chute, the CPT 310 efficiently handles both planing and thicknessing operations while keeping your workspace clean. Whether you're working on small-scale projects or larger timber pieces, this machine is engineered for high performance and durability.
Please Log in to see buy options.
Specifications – CPT 310
| Feature | Specification |
|---|---|
| Feed Speed | 7m/min |
| Cutterblock Speed | 5500 RPM |
| Cutterblock Diameter | 70mm |
| Max Thickness Height | 4–225mm |
| Max Thickness Width | 310mm |
| Min Length of Workpiece | 160mm |
| Max Depth of Cut | 3mm |
| Cutterhead Options | Spiral Cutterhead: 34 pcs (15x15x2.5mm) |
| Planer Table Length | 1409mm |
| Thickness Table Size | 545x307mm |
| Extractor Port Diameter | 100mm |
| Motor Power Output | Single-phase: 2.2kW 3Hp 240 Volt 50Hz |
| Net/Gross Weight | 231kg / 288kg |
| Package Size | 1480x585x1120mm |
