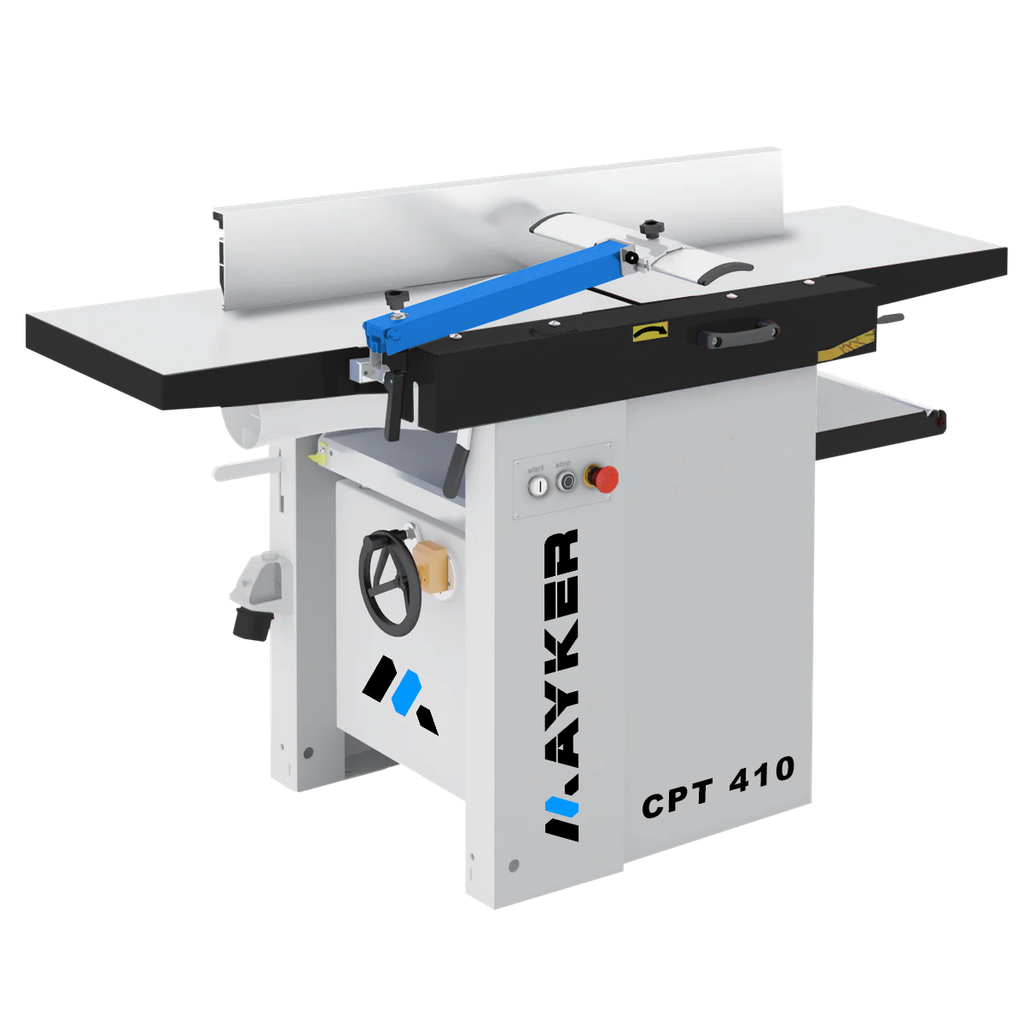

Mayker CPT 410 Planer/Thicknesser
Precision and Efficiency for Advanced Woodworking
The CPT 410 Planer/Thicknesser offers advanced functionality with a large 410 x 255mm capacity, making it ideal for serious woodworkers and busy trade workshops. Transitioning between surface planning and thicknessing is effortless with its single-handed table lift system, requiring no removal of the fence. This versatile machine features a robust aluminum extruded fence with centered controls and cam locking for quick, accurate adjustments.
- Feed Speed: 7m/min
- Maximum Thickness Height: 225mm
- Maximum Thickness Width: 410mm
- Power Options: Single-phase or three-phase motors
Equipped with a built-in dust chute for efficient handling of both planing and thicknessing operations, the CPT 410 ensures a clean and productive workspace. Its sturdy central column and extended table length offer superior stability, making it an essential tool for high-performance woodworking.
Specifications – CPT 410
| Feature | Specification |
|---|---|
| Feed Speed | 7m/min |
| Cutterblock Speed | 5500 RPM |
| Cutterblock Diameter | 70mm |
| Max Thickness Height | 4–225mm |
| Max Thickness Width | 410mm |
| Min Length of Workpiece | 160mm |
| Max Depth of Cut | 4mm |
| Cutterhead Options | Straight Knives: 3 pcs (410x30x3mm) |
| Spiral Cutterhead: 44 pcs (15x15x2.5mm) | |
| Planer Table Length | 1659mm |
| Thickness Table Size | 650x407mm |
| Extractor Port Diameter | 120mm |
| Motor Power Output | Single-phase: 3kW S6 |
| Three-phase: 4kW S6 | |
| Net/Gross Weight | 294kg / 352kg |
| Package Size | 1710x740x1117mm |
| Container Load Qty | 20' Container: 20 |
| 40'GP Container: 40 |
