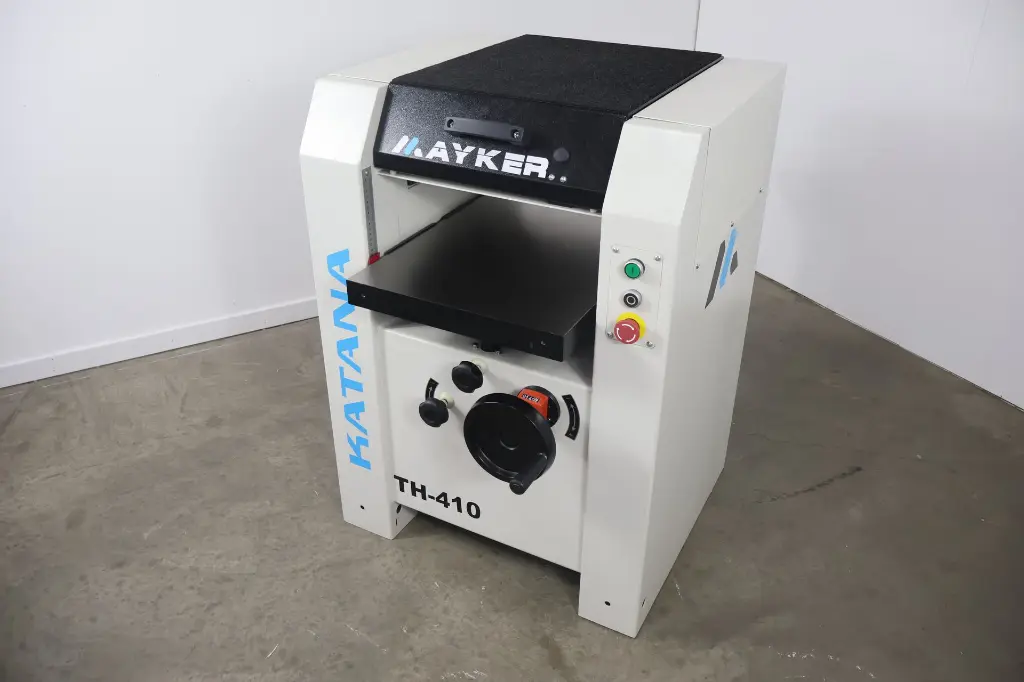

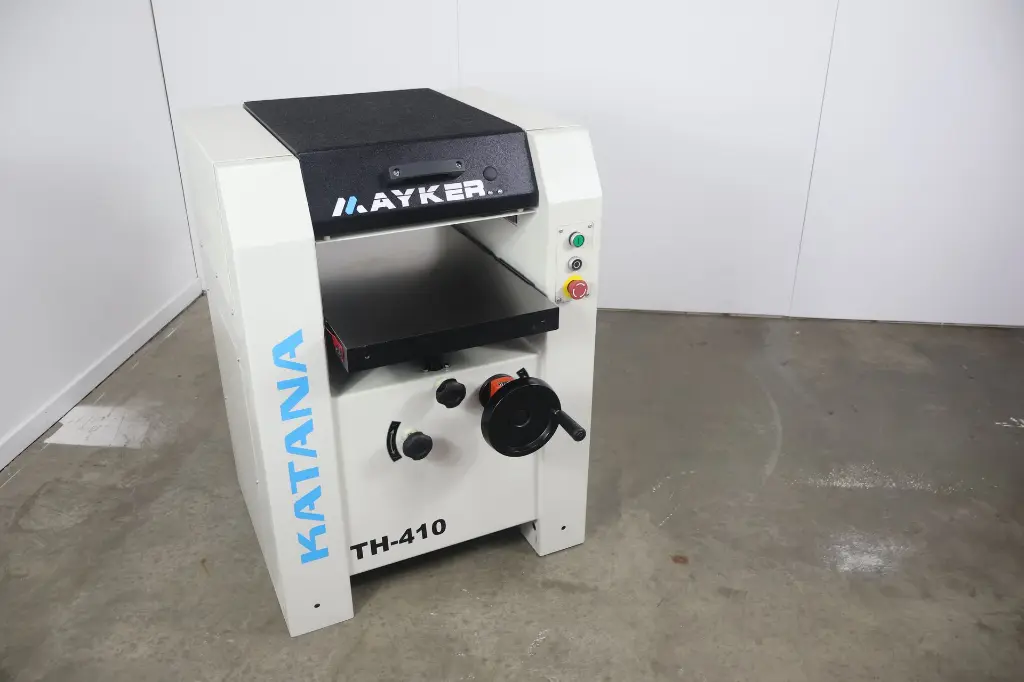

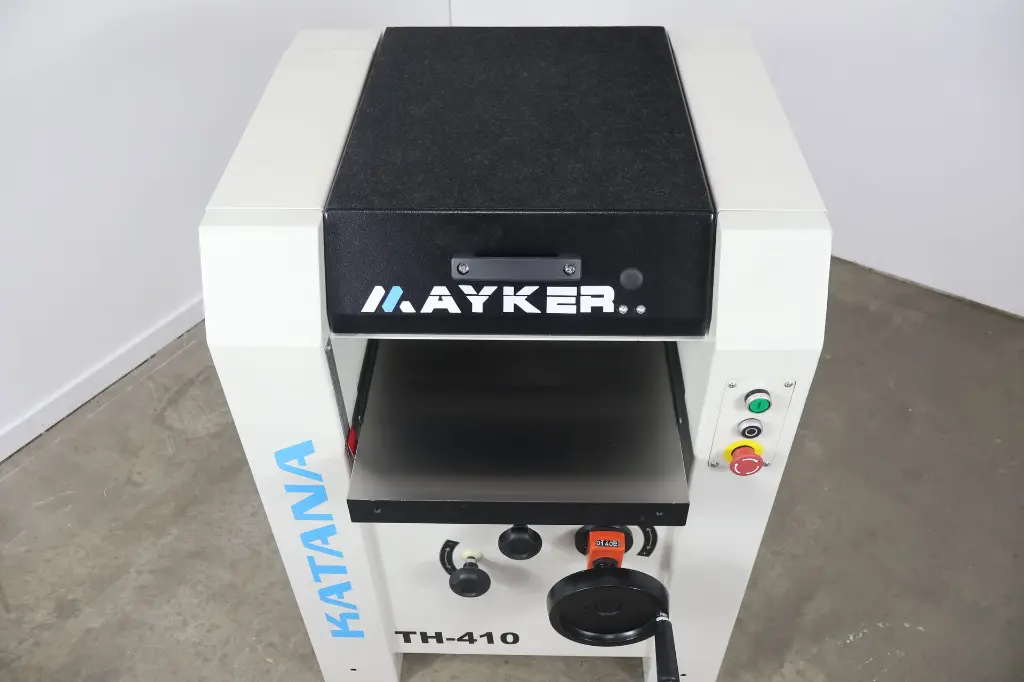

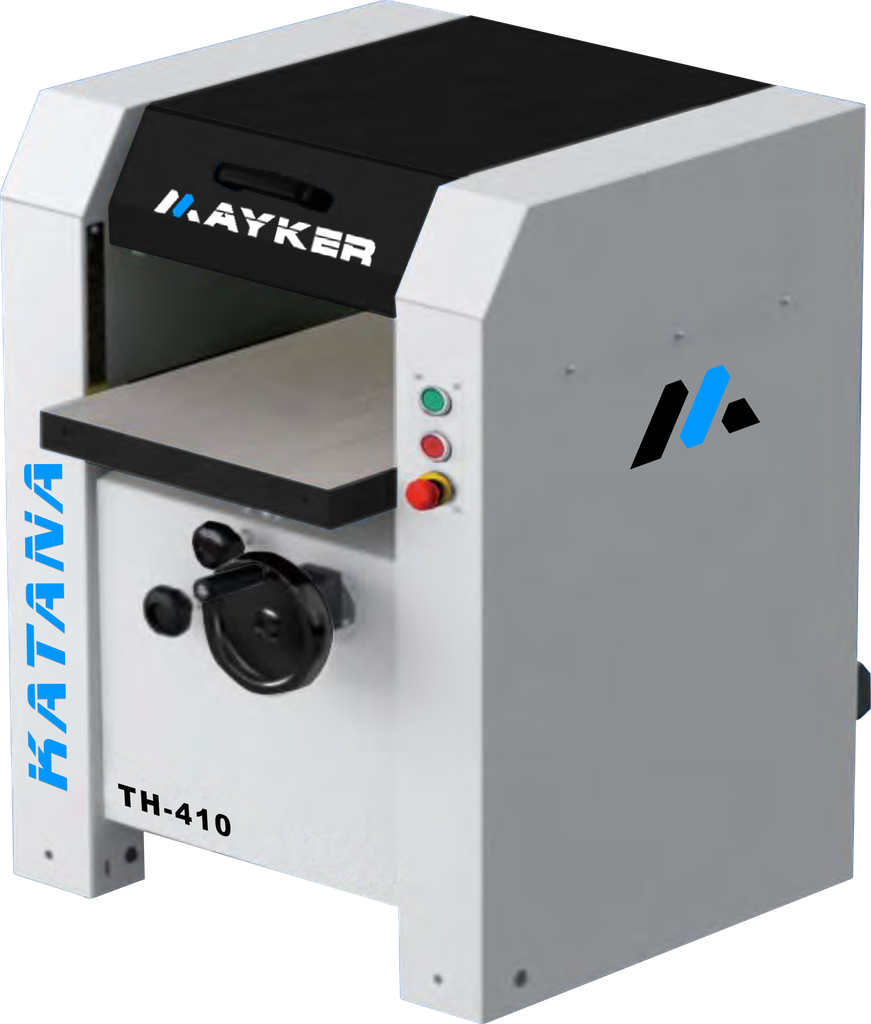

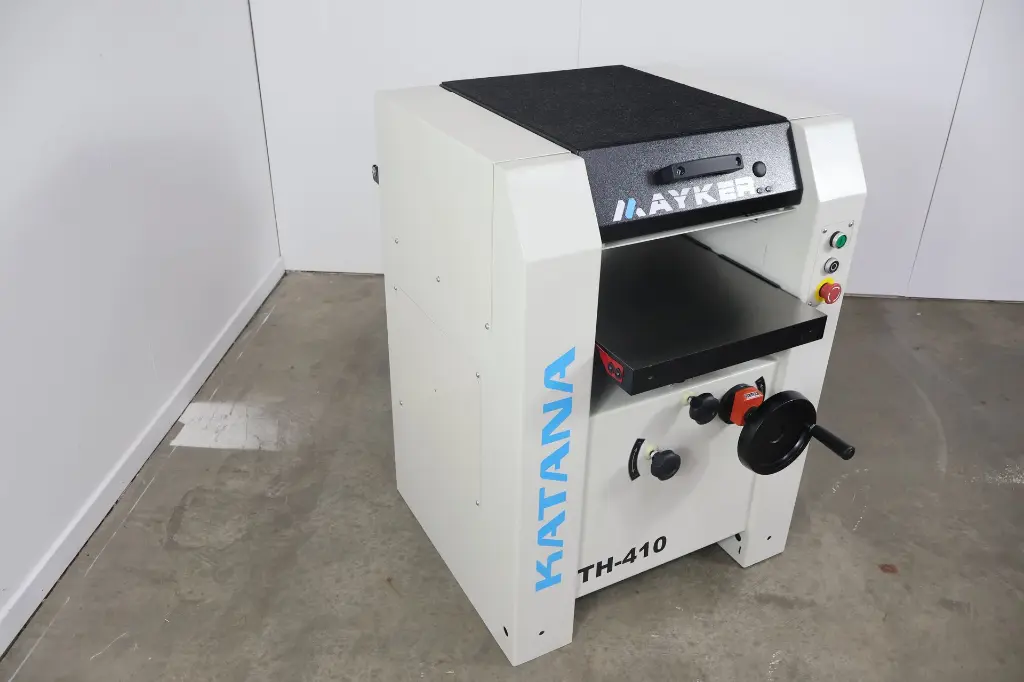

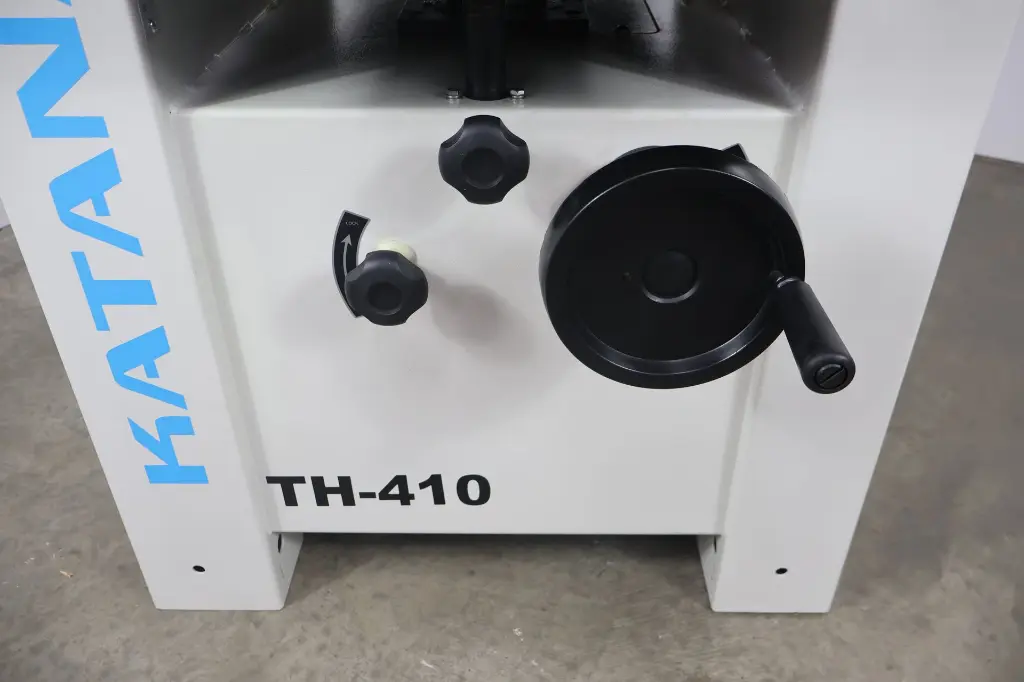

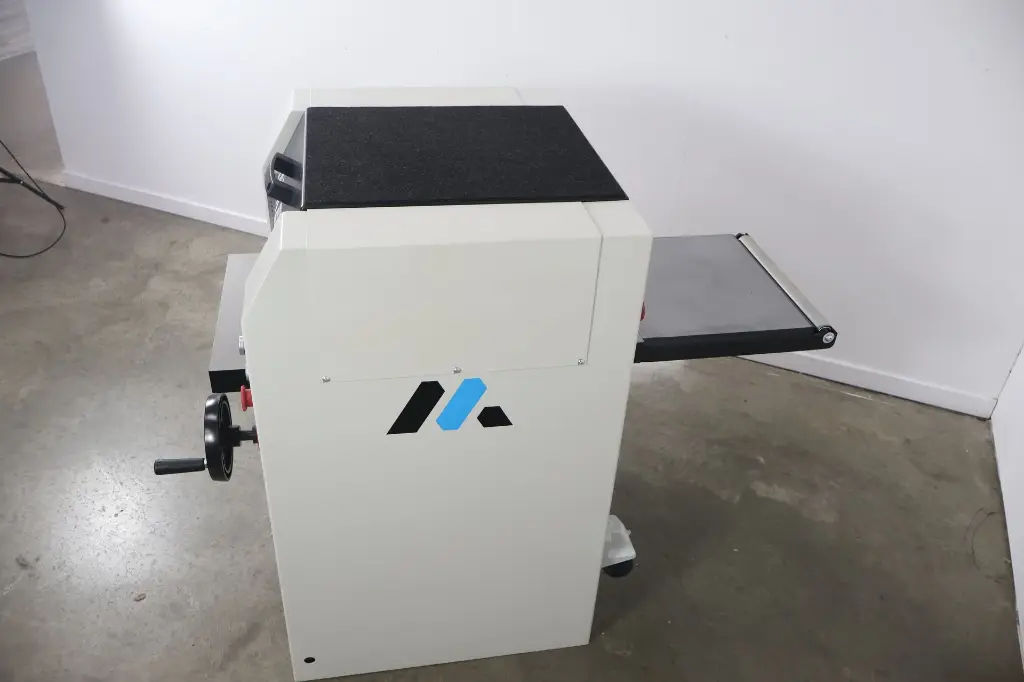

Mayker Katana TH-410 Thicknesser
Heavy-Duty and Compact Solution
The TH-410 Thicknesser is engineered for high-performance surfacing across a range of workshop environments. With a 405mm cutting width and a 4mm maximum pass depth, it handles wide and dense hardwoods with ease. Its 72-tip spiral cutter block delivers smooth, clean results with minimal sanding required—ideal for cabinetry, furniture making, and timber prep.
- Cutting Width: 405mm
- Cutting Height: 220mm
- Power Output: 240V, 50Hz, 4HP. (Available in 3Ph)

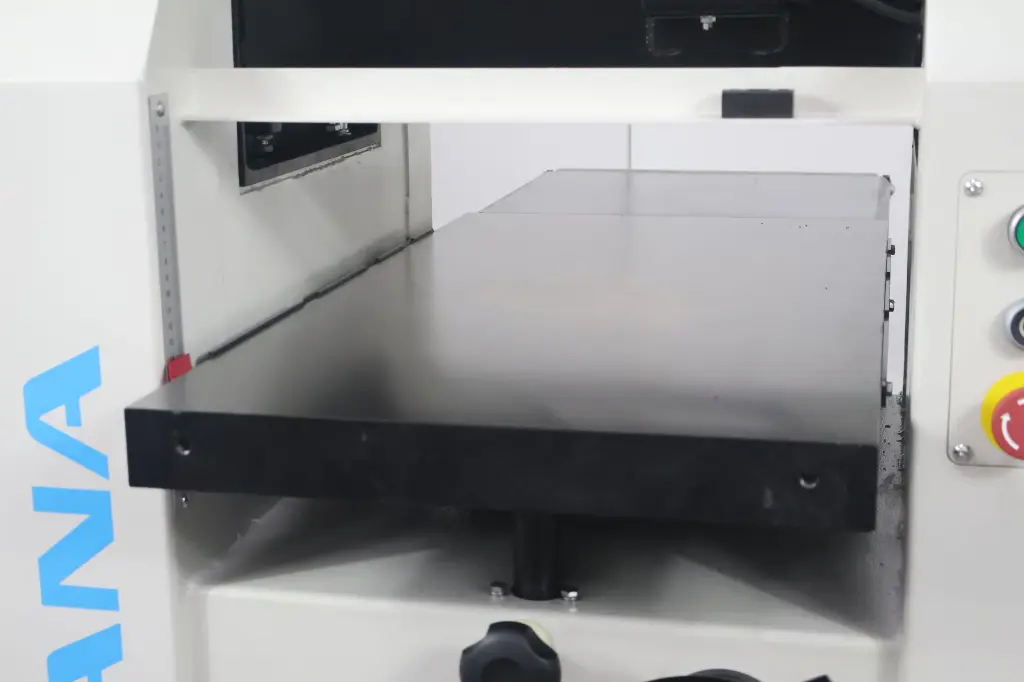

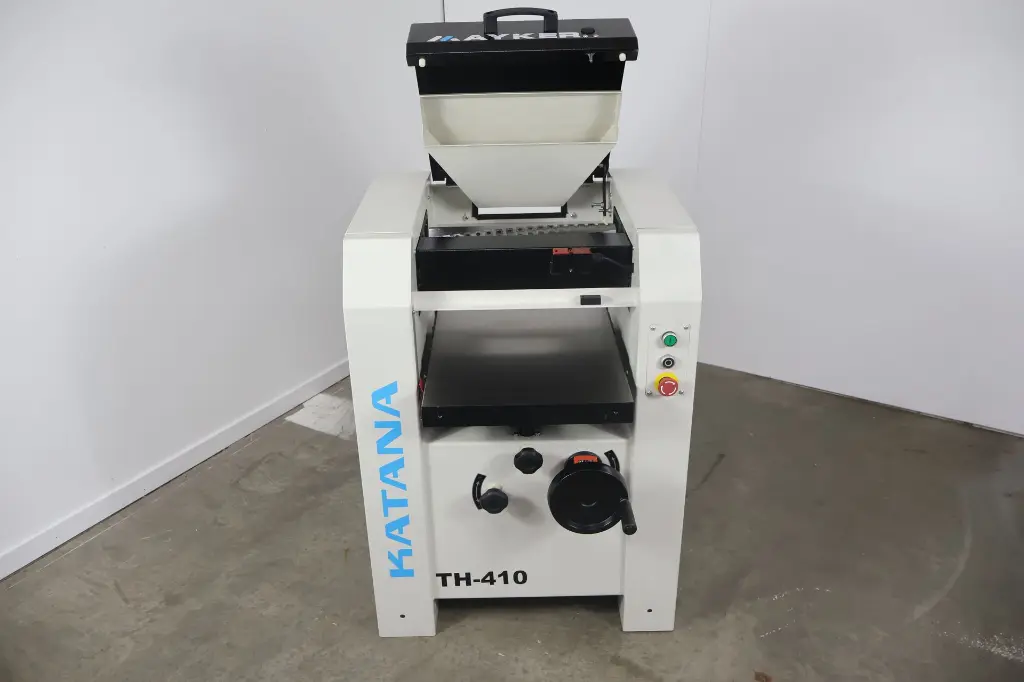

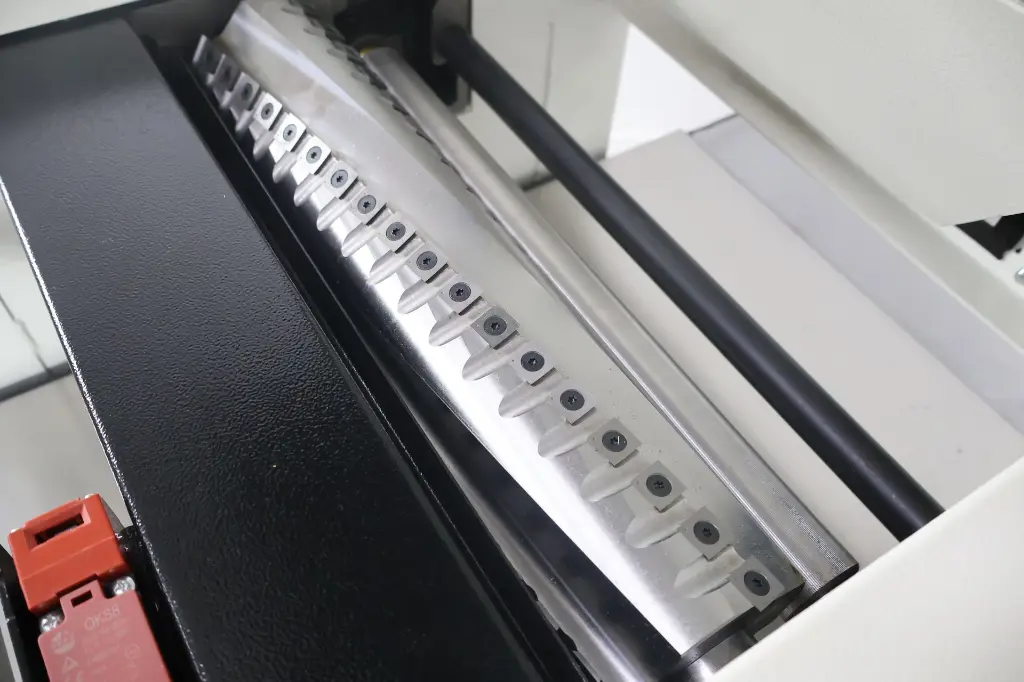

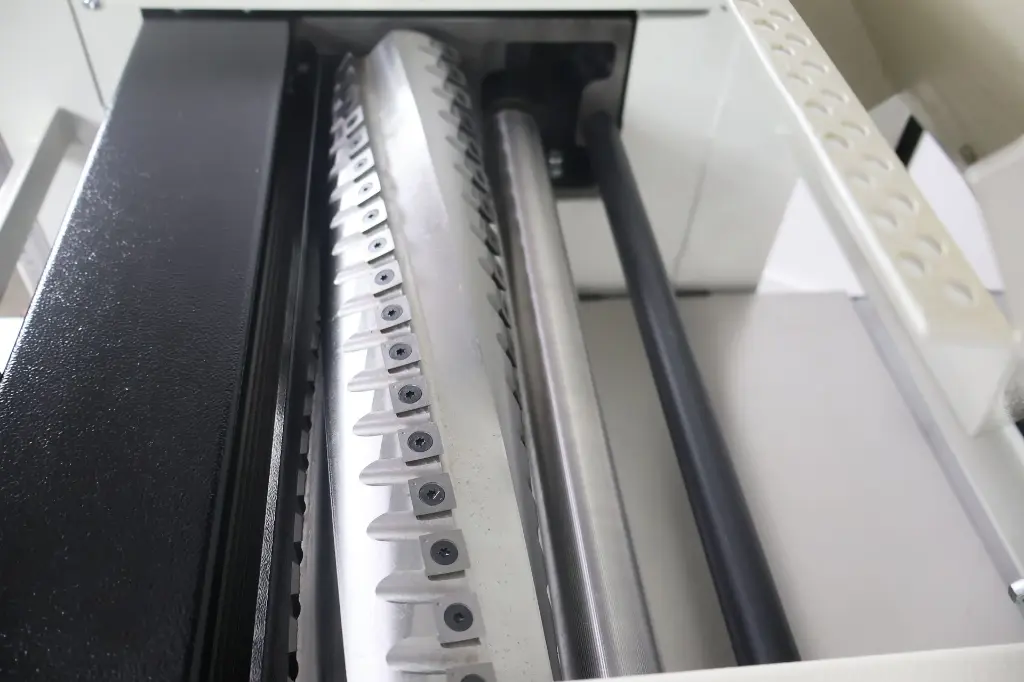

Equipped with a 97mm diameter cutterblock spinning at 4,200 RPM, the TH-410 features four rows of carbide tips, a 750 x 408mm heavy-duty cast table, 120mm dust port, and 6.5m/min feed rate—making it a serious machine for precise thicknessing, even in demanding conditions.
Please Log in to see buy options.
Specifications – TH-410
| Feature | Specification |
|---|---|
| Feed Speed | 6.5m/min |
| Cutterblock Speed | 4200 RPM |
| Cutterblock Diameter | 95mm |
| Max Thickness Height | 4–220mm |
| Max Thickness Width | 410mm |
| Min Length of Workpiece | 156mm |
| Max Depth of Cut | 5mm |
| Cutterhead | 4 Slot Spiral Cutterhead: 72 pcs (15x15x2.5mm) |

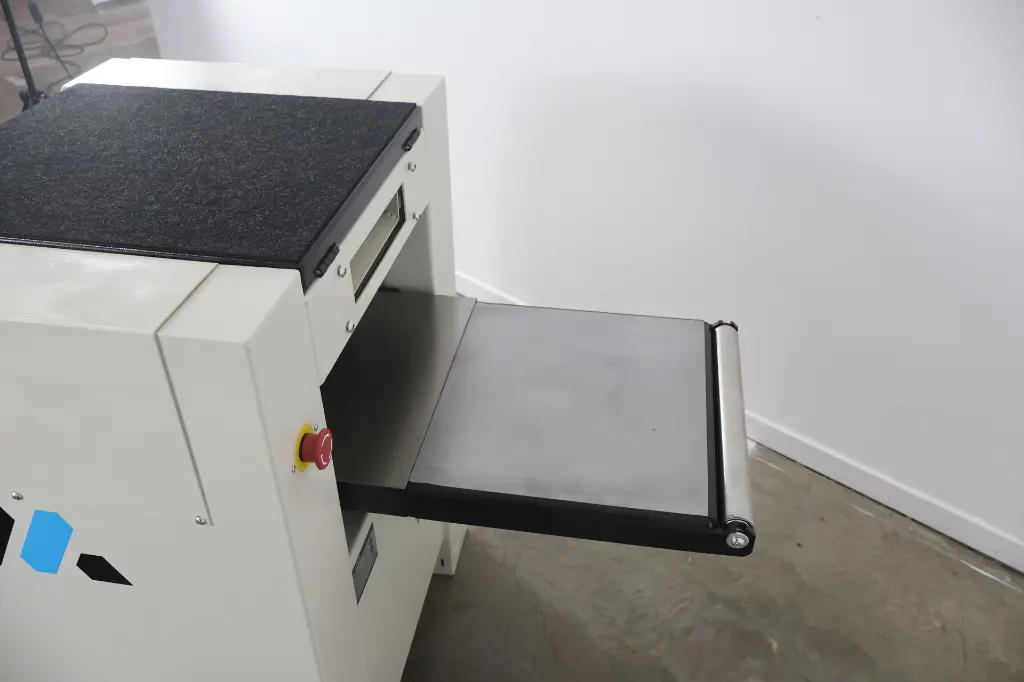

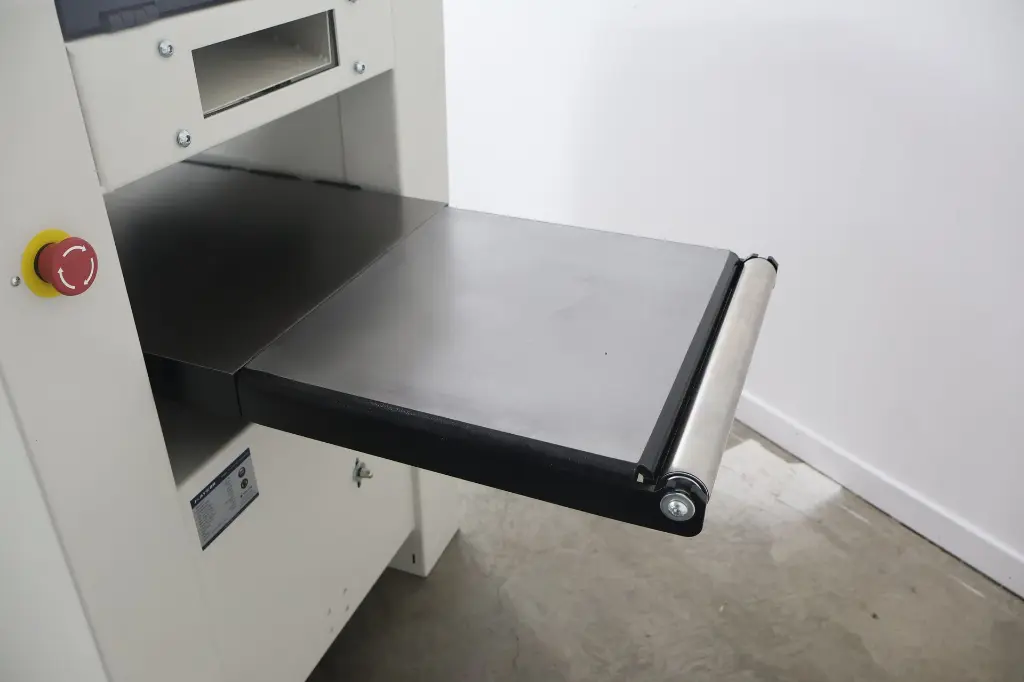

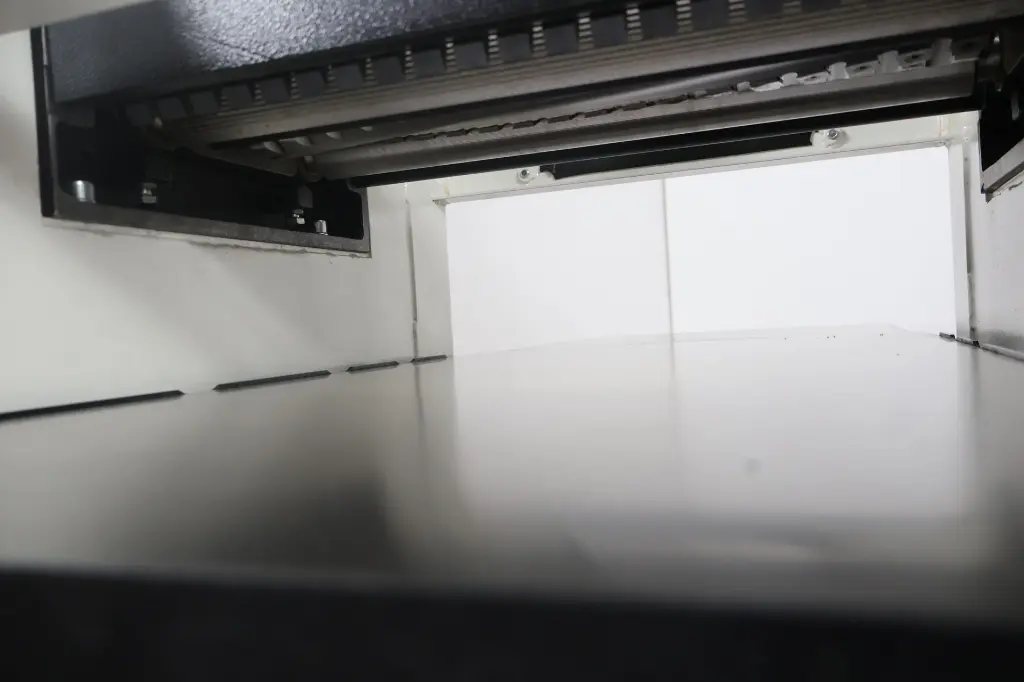

| Thickness Table Size | 750x408mm |
| Extractor Port Diameter | 120mm |
| Motor Power Output | Single-phase: 3Kw 4Hp 240V/50Hz |
| Net/Gross Weight | 306kg / 367kg |
| Package Size | 740x710x1117mm |
