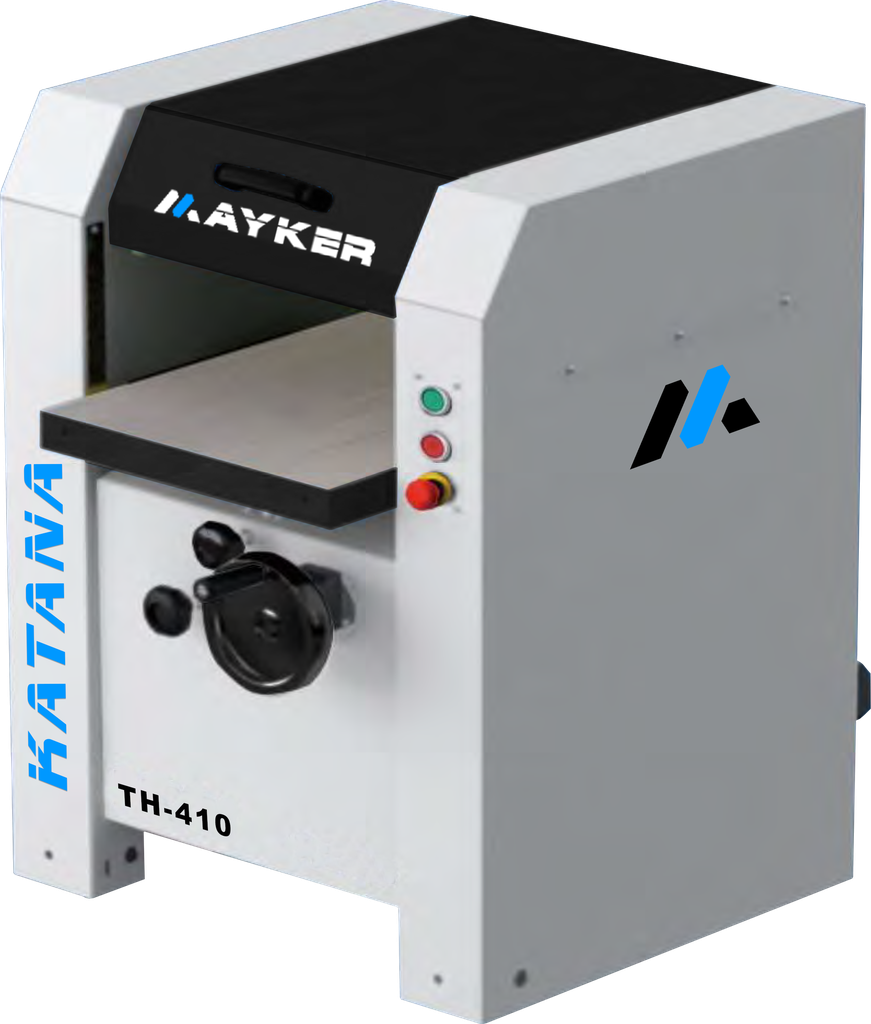

Mayker Katana TH-410 Thicknesser
Heavy-Duty and Compact Solution
The TH-410 Thicknesser is designed to handle larger pieces of stock with precision and ease. With a 410mm width capacity, this versatile machine gives you the ability to join boards and then thickness them accurately for your projects. The TH-410 can make a 4mm pass even on the most challenging timbers, making it suitable for small workshops at home, industrial, or club environments.
- Cutting Width: 410mm
- Cutting Height: 220mm
- Power Output: 240V, 50Hz, 4HP
Equipped with a 97mm cutterblock for heavy loading, it supports straight knives as well as optional spiral cutterheads for enhanced efficiency and durability. Its column-supported cast table ensures stability, while the integrated guard and dust hood enable convenient knife changes and efficient dust extraction.
Please Log in to see buy options.
Specifications – TH-410
| Feature | Specification |
|---|---|
| Feed Speed | 6.5m/min |
| Cutterblock Speed | 4200 RPM |
| Cutterblock Diameter | 95mm |
| Max Thickness Height | 4–220mm |
| Max Thickness Width | 410mm |
| Min Length of Workpiece | 156mm |
| Max Depth of Cut | 5mm |
| Cutterhead | 4 Slot Spiral Cutterhead: 72 pcs (15x15x2.5mm) |
| Thickness Table Size | 750x408mm |
| Extractor Port Diameter | 120mm |
| Motor Power Output | Single-phase: 3kW S6 |
| Three-phase: 4kW S6 | |
| Net/Gross Weight | 306kg / 367kg |
| Package Size | 740x710x1117mm |
| Container Load Qty | 20' Container: 42 |
| 40'GP Container: 84 |
