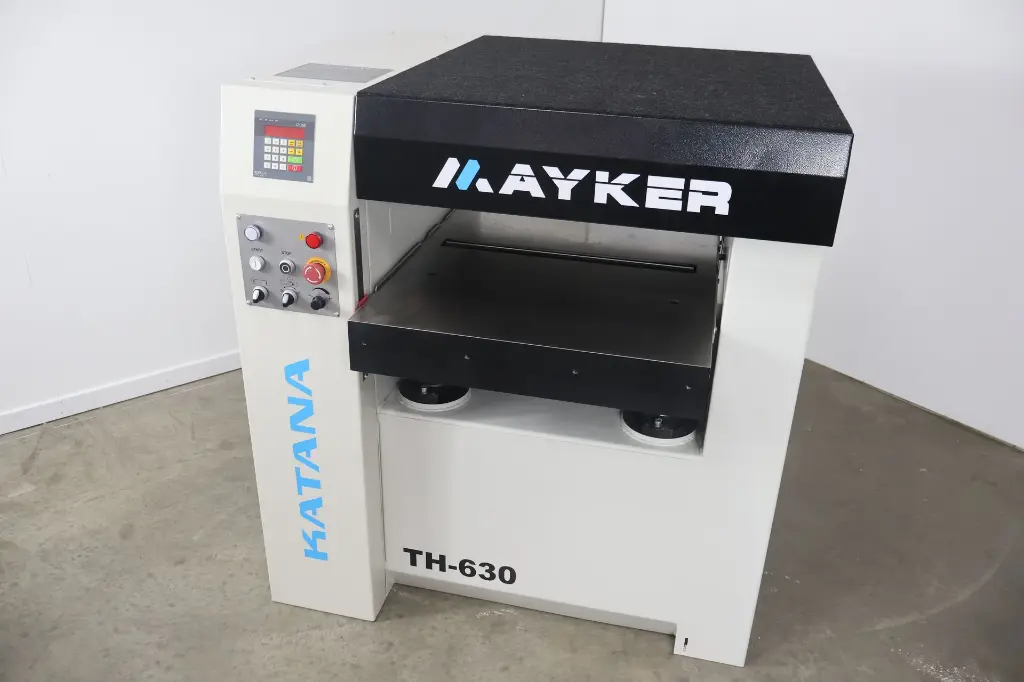

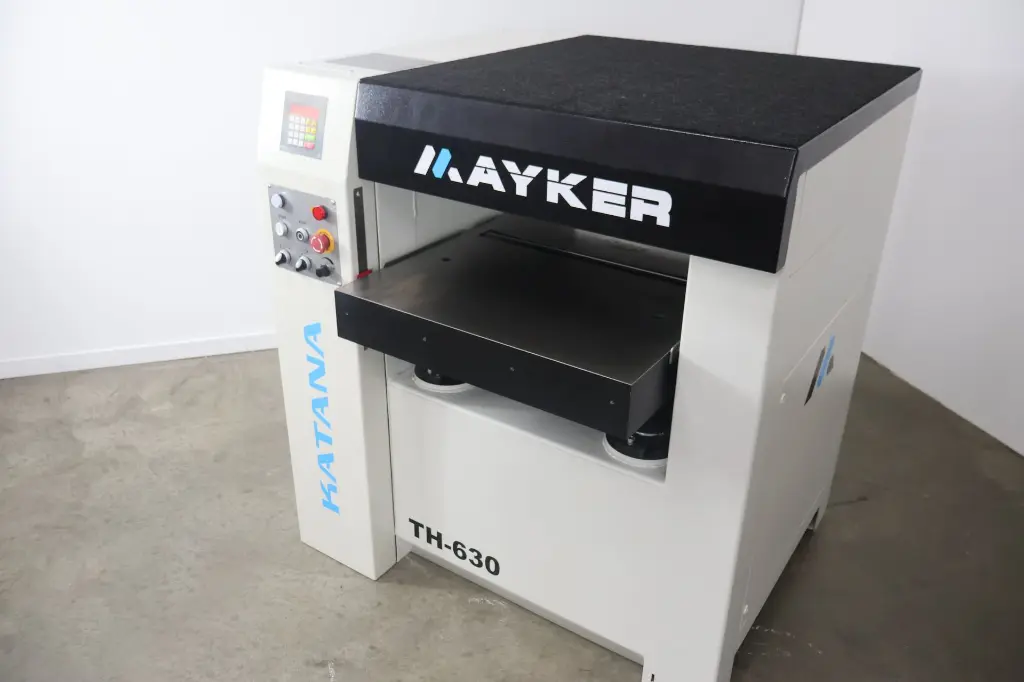

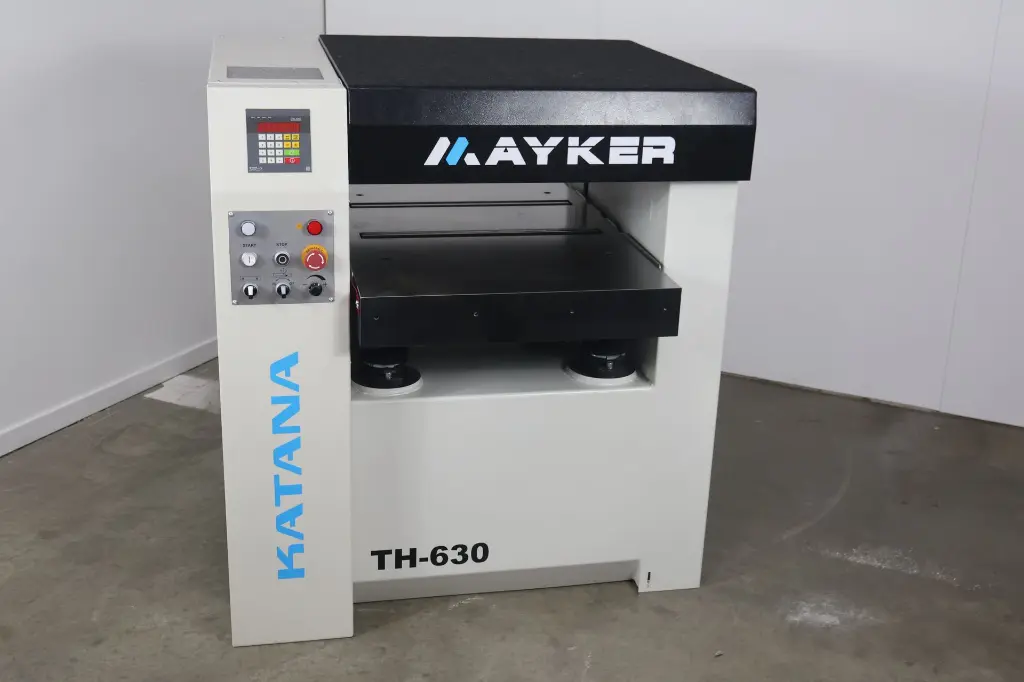

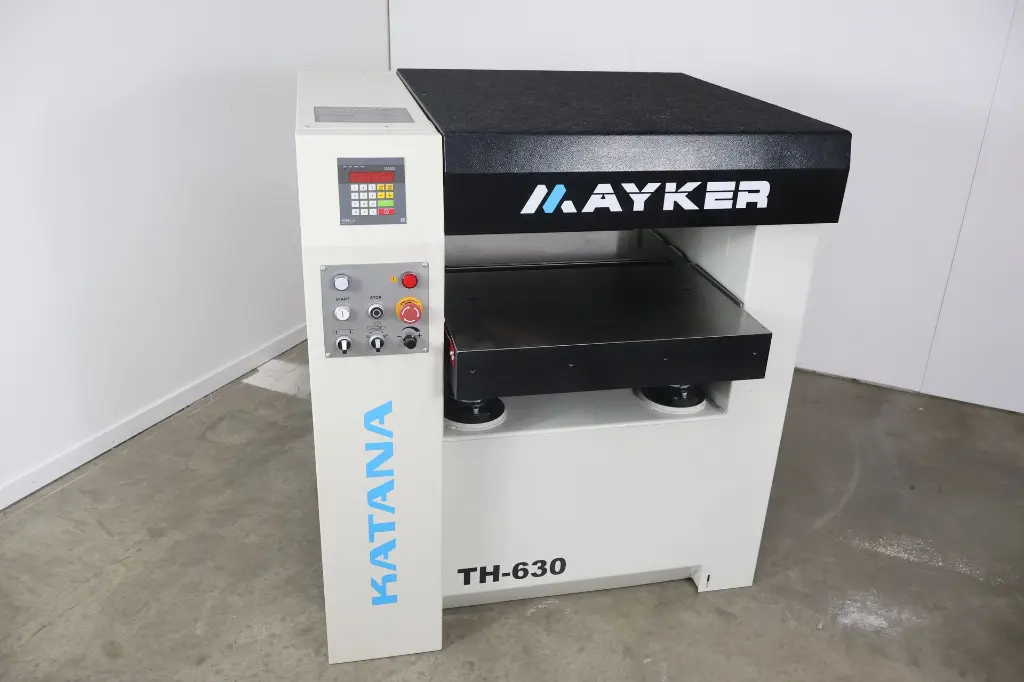

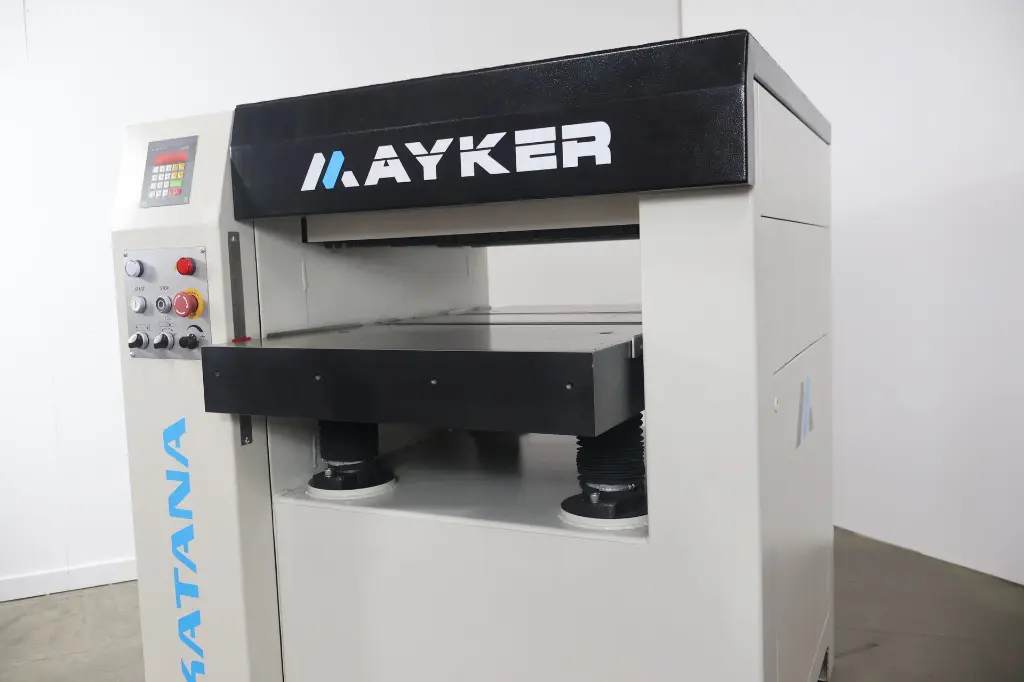

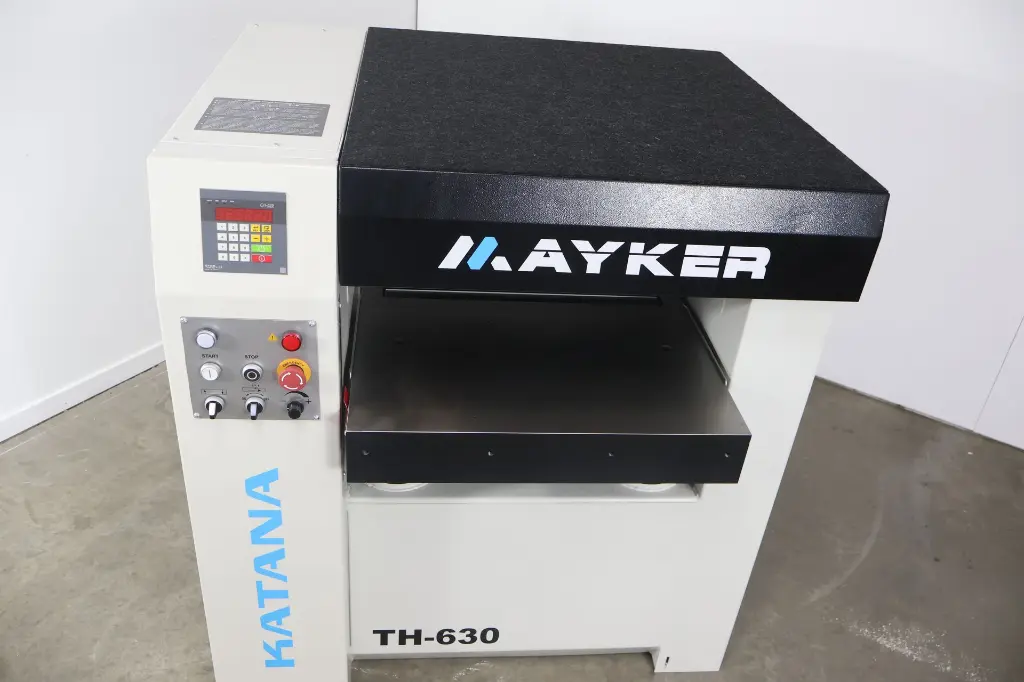

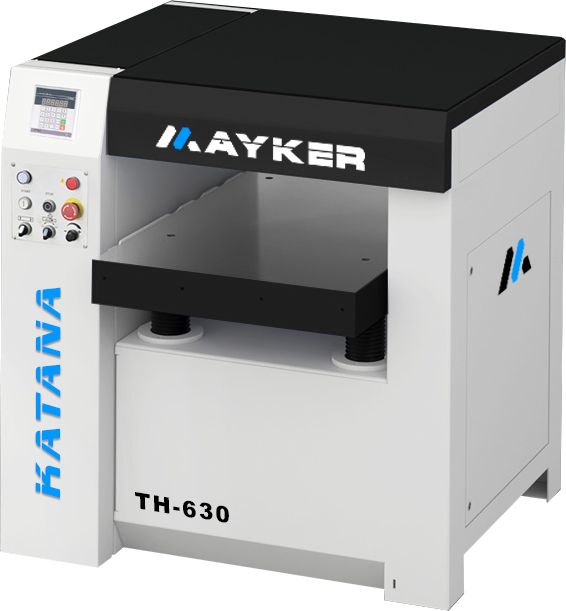

Mayker Katana TH-630 Thicknesser
Industrial Precision for Heavy-Duty Use

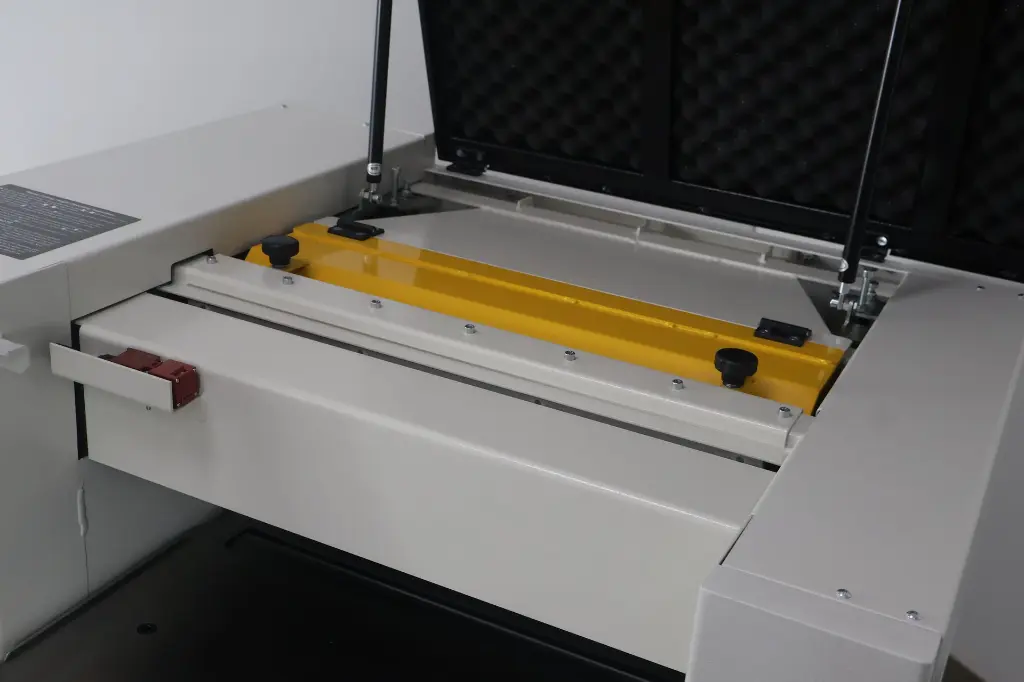

The TH-630 Thicknesser is the ideal solution for industrial workshops requiring robust performance and high precision. With a 25-inch cutting width, this heavy-duty machine is designed to handle demanding workloads. Featuring variable feed speeds, electronic table adjustment, and spring-loaded pressure bars, the TH-630 ensures smooth and accurate processing of large timber pieces.
- Cutting Width: 630mm
- Cutting Height: 300mm
- Power Output: 400V, 50Hz, 7.5HP

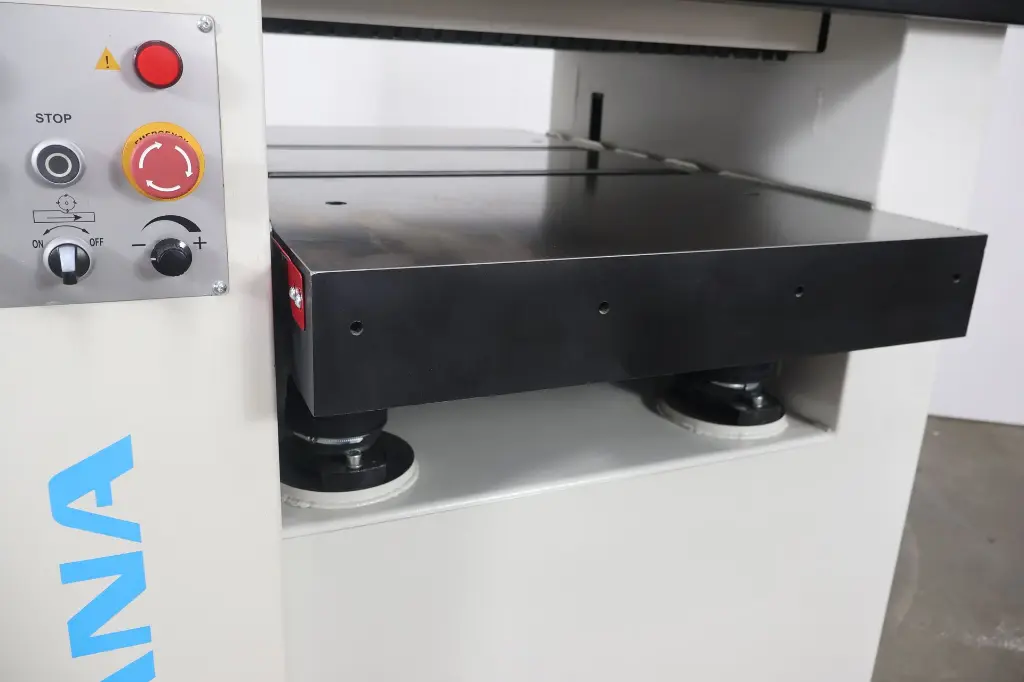

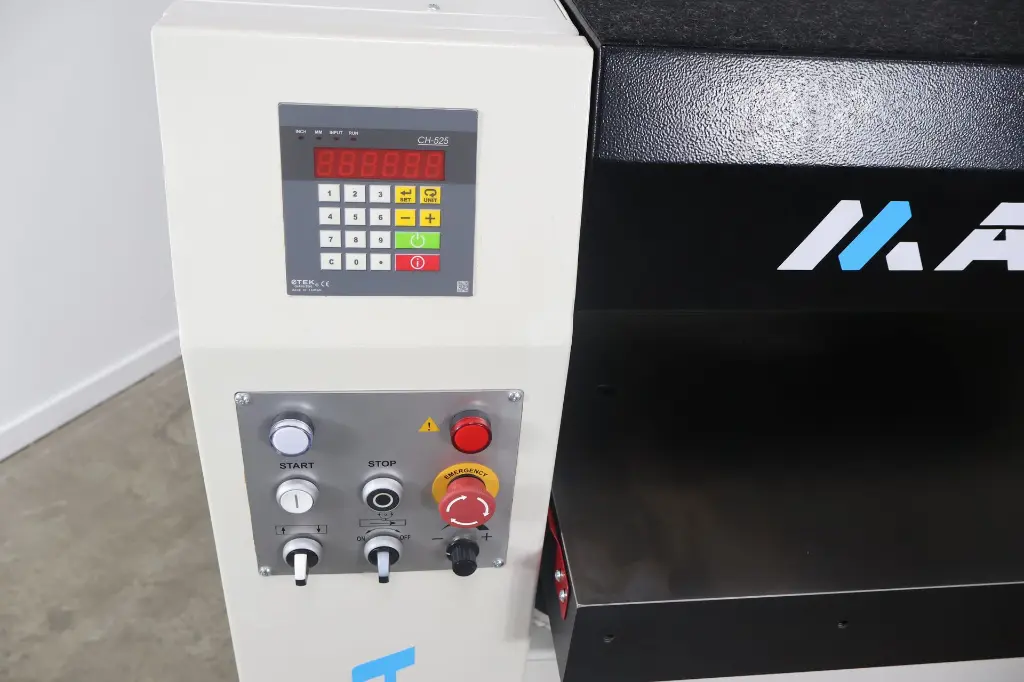

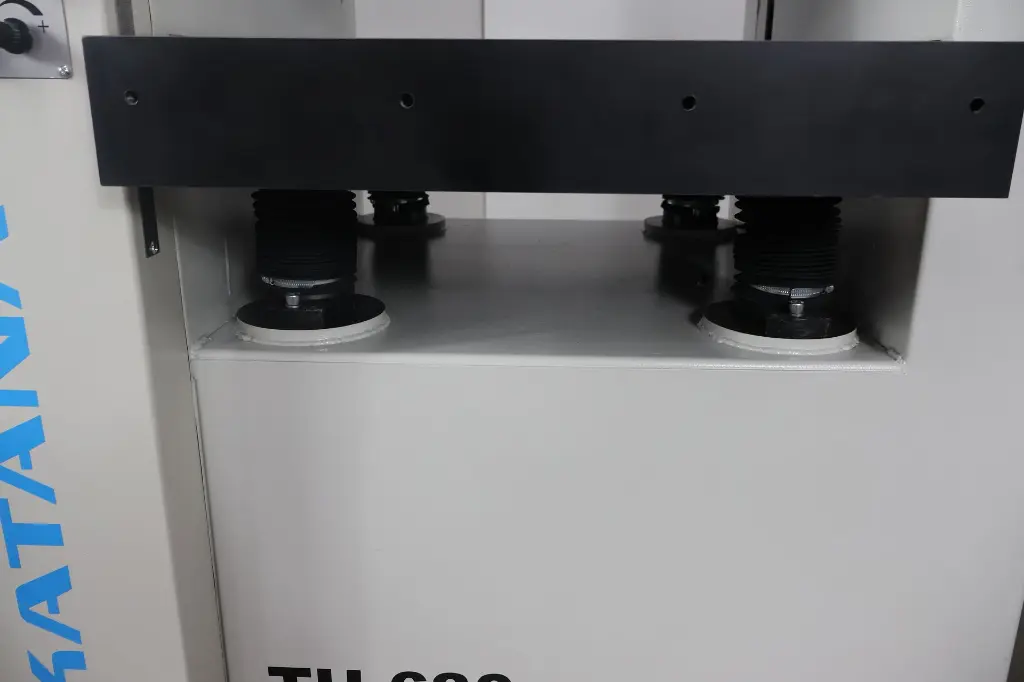

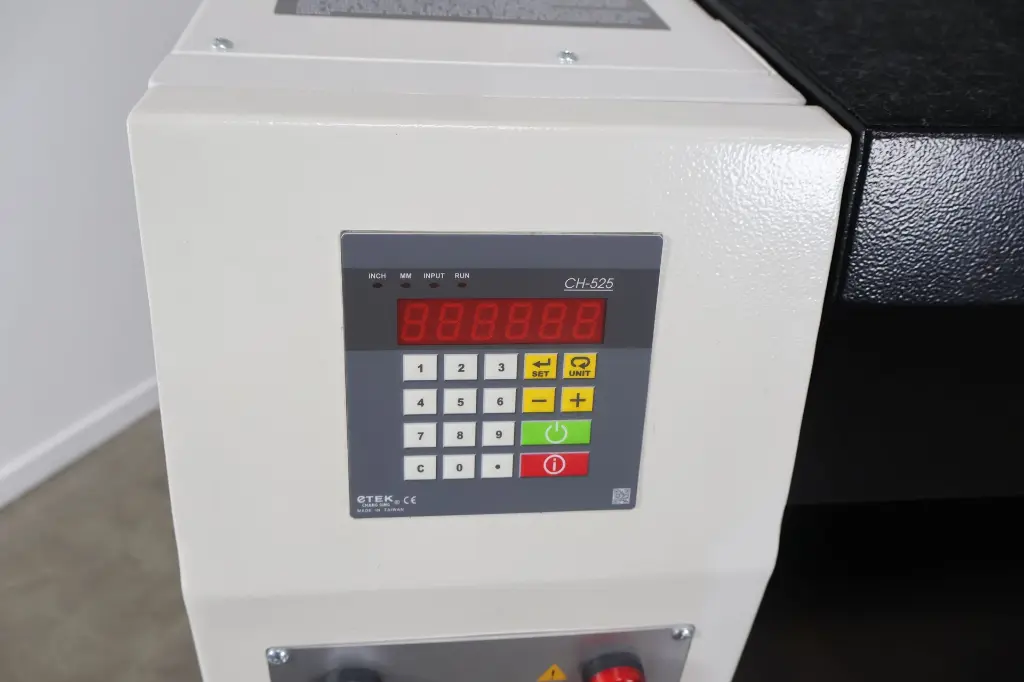

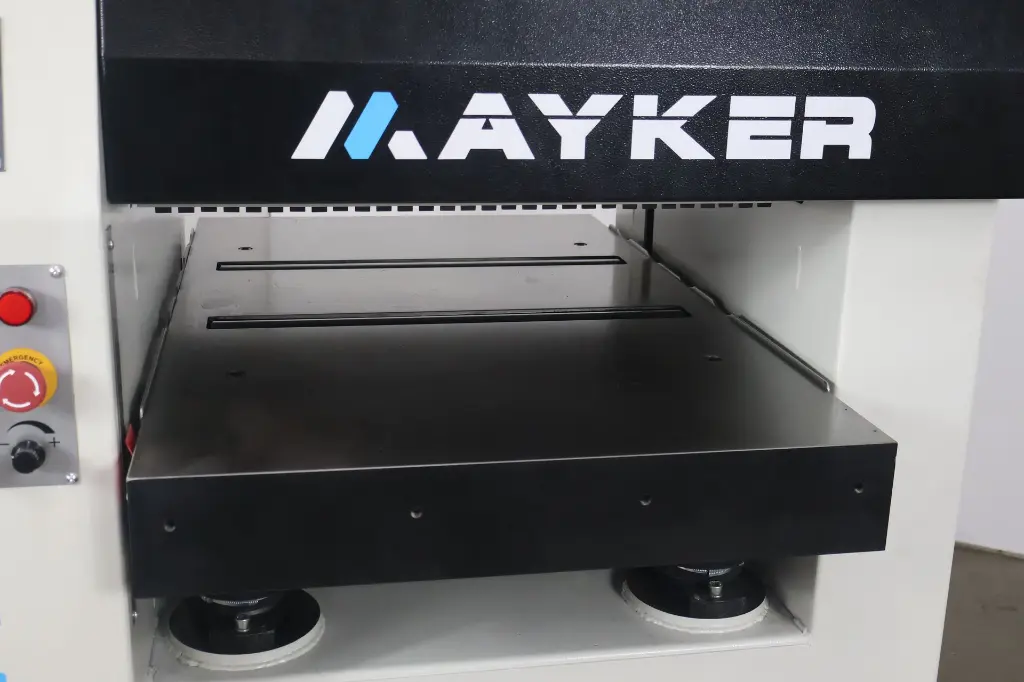

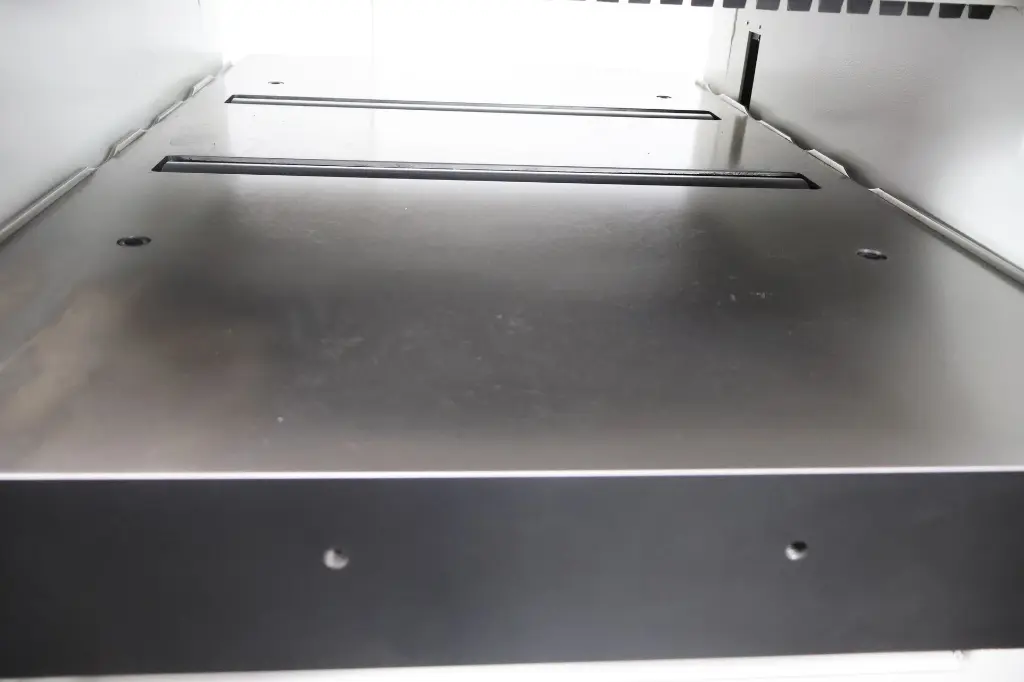

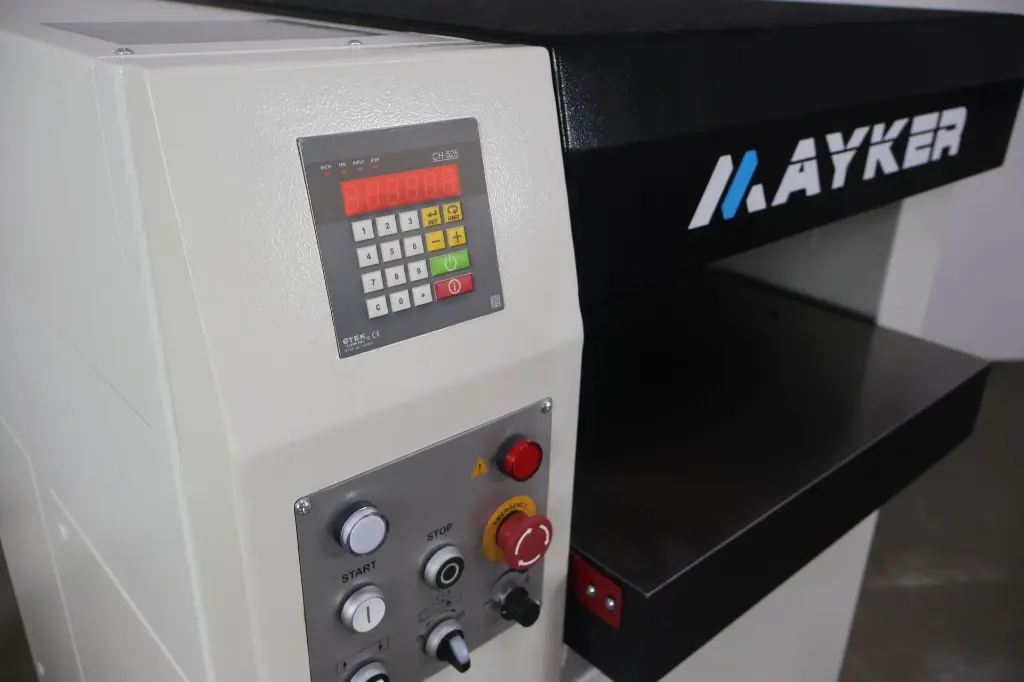

Built with a cast iron table mounted on 4 heavy-duty pillars, the TH-630 offers excellent stability and support without locking during operation. With its advanced positioning control and vibration-resistant design, this thicknesser is perfect for achieving professional results in every project.
Please Log in to see buy options.
Specifications – TH-630
| Feature | Specification |
|---|---|
| Feed Speed | 4–16m/min (variable) |
| Cutterblock Speed | 5500 RPM |
| Cutterblock Diameter | 115mm |
| Max Thickness Height | 5–300mm |
| Max Thickness Width | 630mm |
| Min Length of Workpiece | 280mm |
| Max Depth of Cut | 8mm |

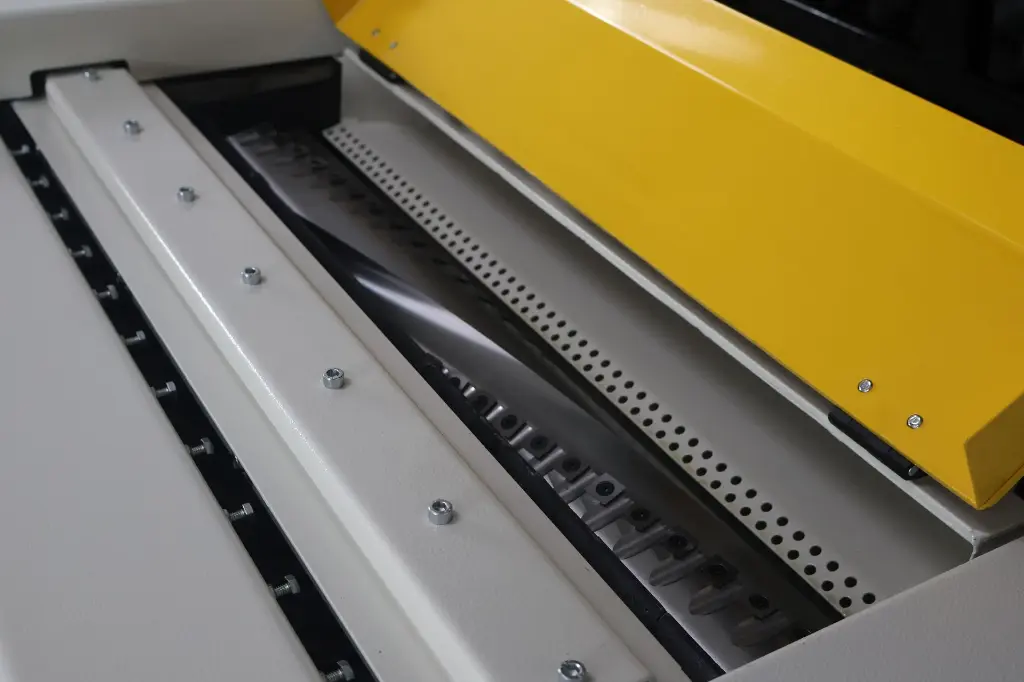

| Cutterhead | 4 Slot Spiral Cutterhead: 104 pcs (15x15x2.5mm) |
| Thickness Table Size | 1050x630mm |
| Extractor Port Diameter | 150mm |
| Cutting Motor Output | 5.5kW S1 (7.5HP) |
| Lifting Motor Output | 0.25kW |
| Feeding Motor Output | 0.75kW |
| Net/Gross Weight | 650kg / 716kg |
| Package Size | 1220x1150x1315mm |
| Container Load Qty | 20' Container: 8 |
| 40'HQ Container: 36 |
