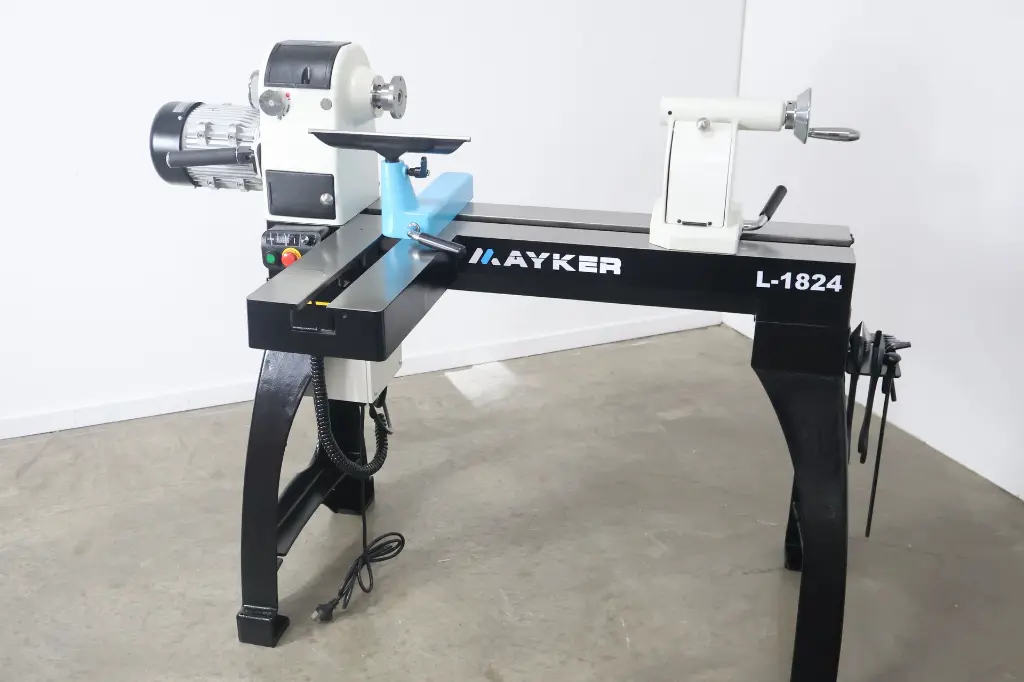

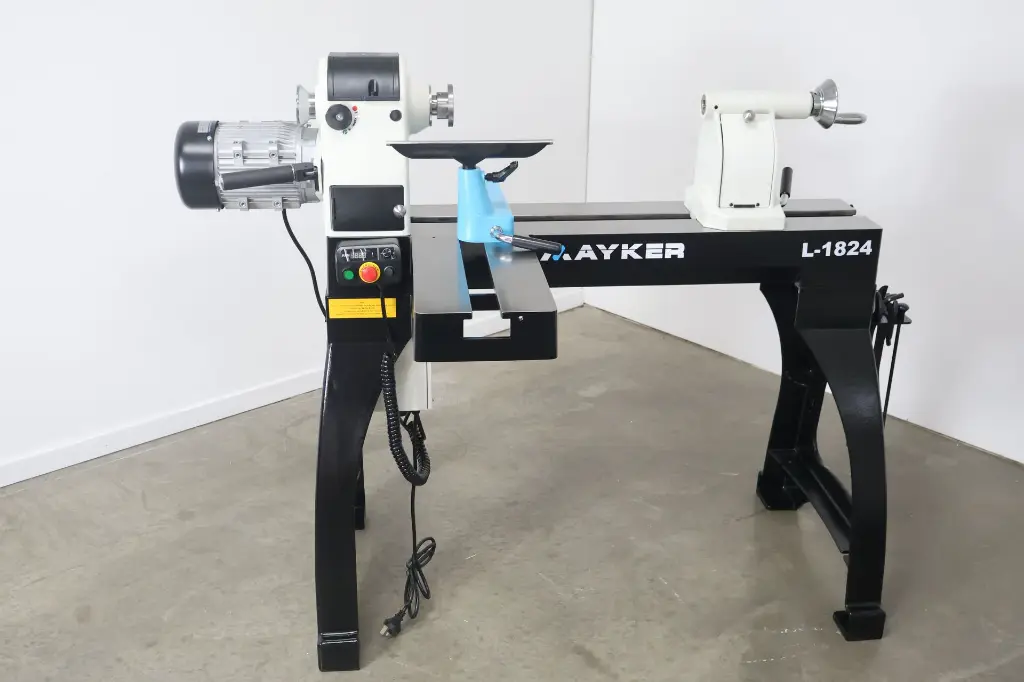

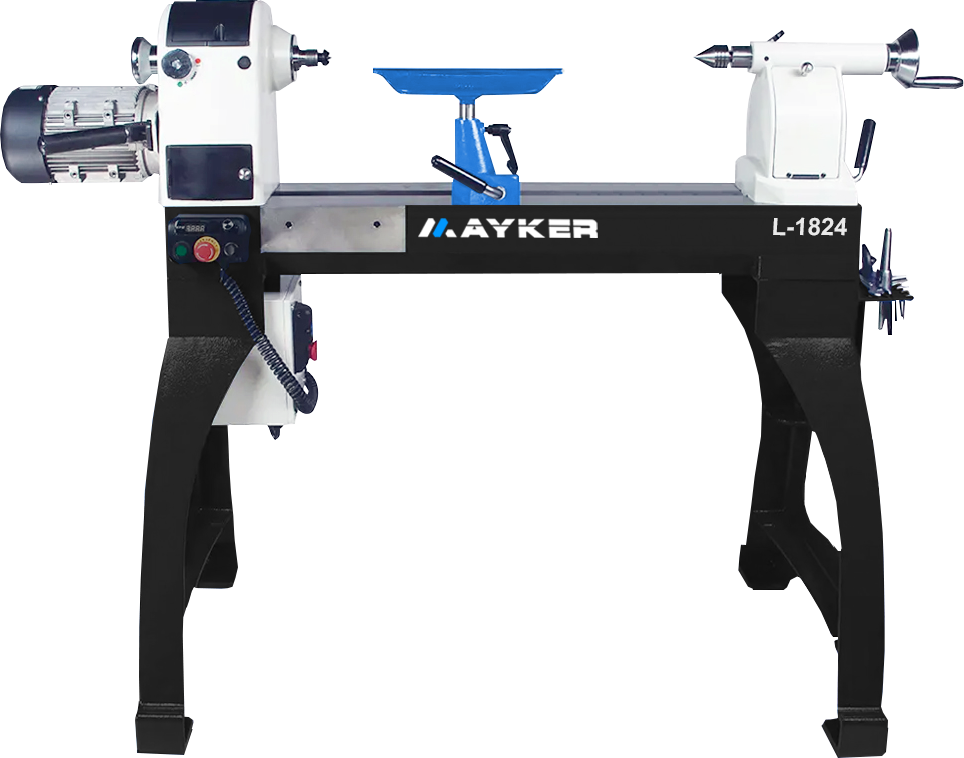

Mayker L1824 Wood Lathe
Versatile and Robust for Professional Woodturning

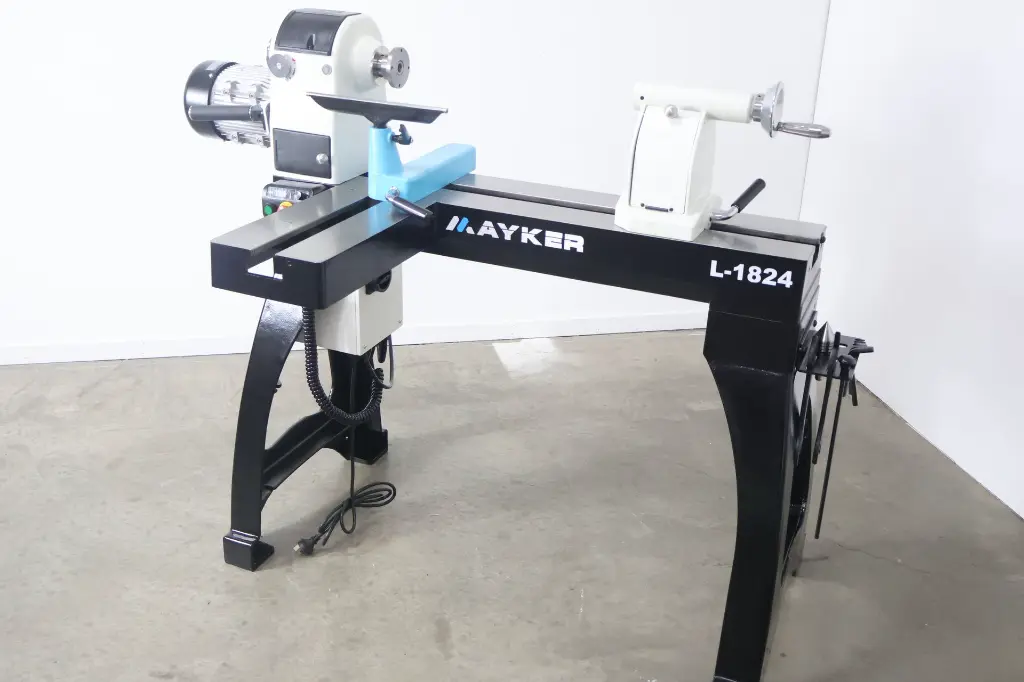

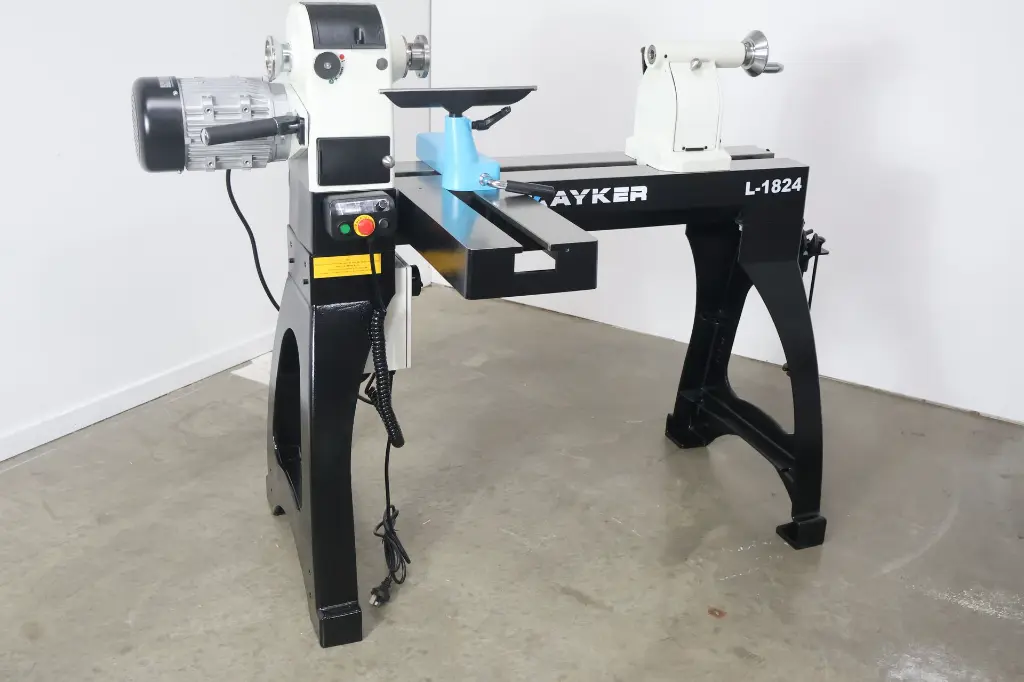

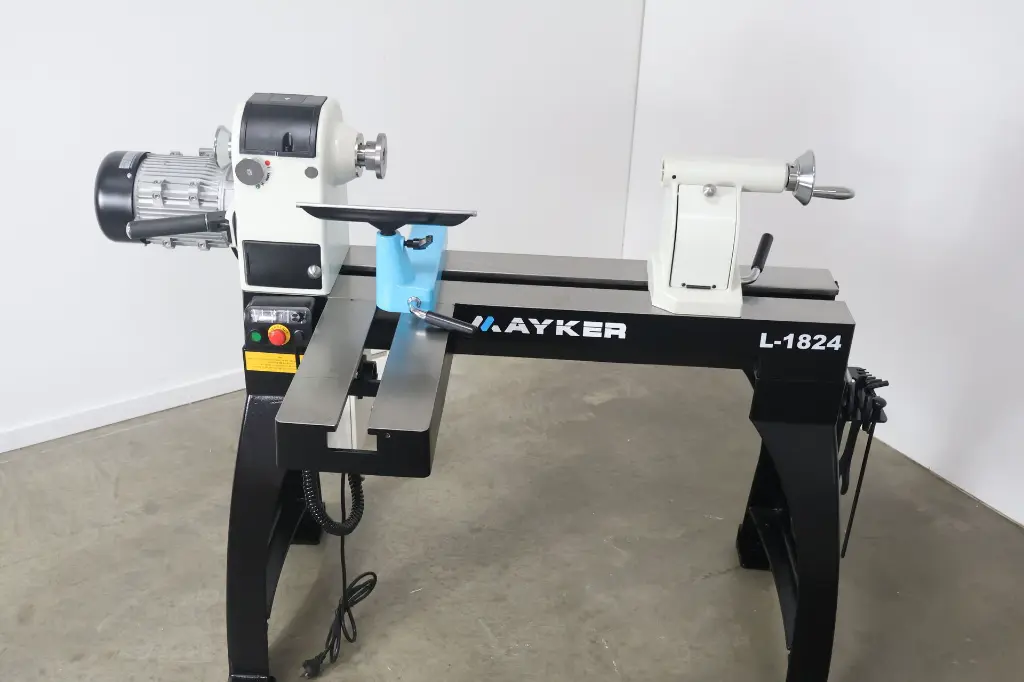

The L1824 Wood Lathe is HBW’s most versatile lathe, combining robust construction with innovative features to meet the needs of professional woodturners. Made from heavy cast iron and classically shaped legs, the L1824 delivers over 170kgs of stability during operation. The swivel headstock rotates 180 degrees for outboard turning, while three machined surfaces on the sides of the bed allow for extension mounting to tackle larger projects such as oversized bowls or spindle work.
- Swing Over Bed: 457mm
- Working Distance Between Centers: 610mm

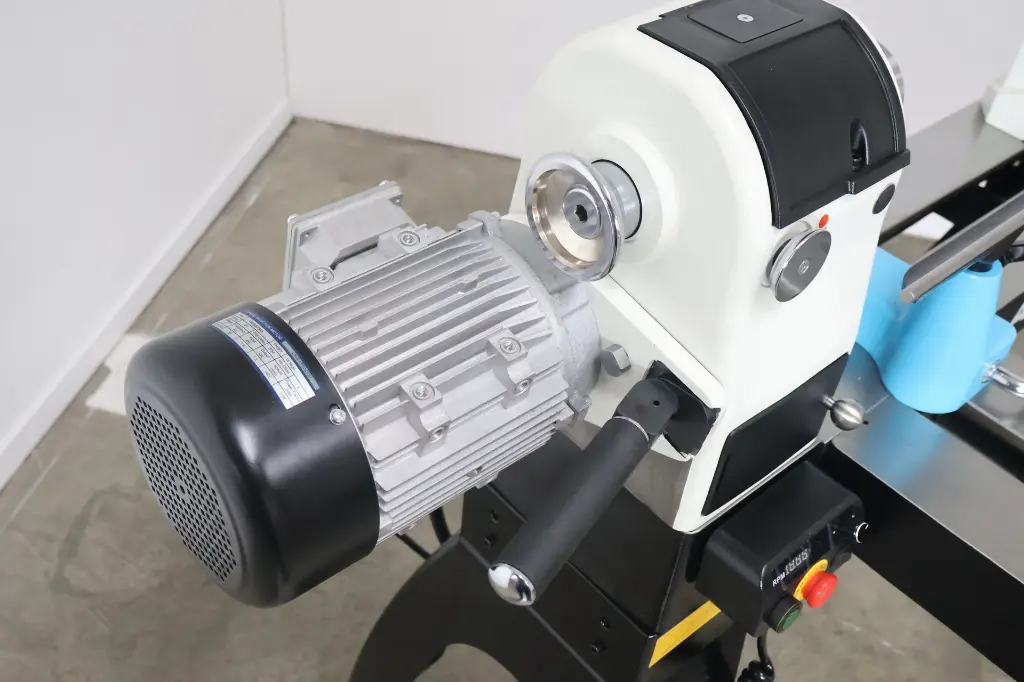

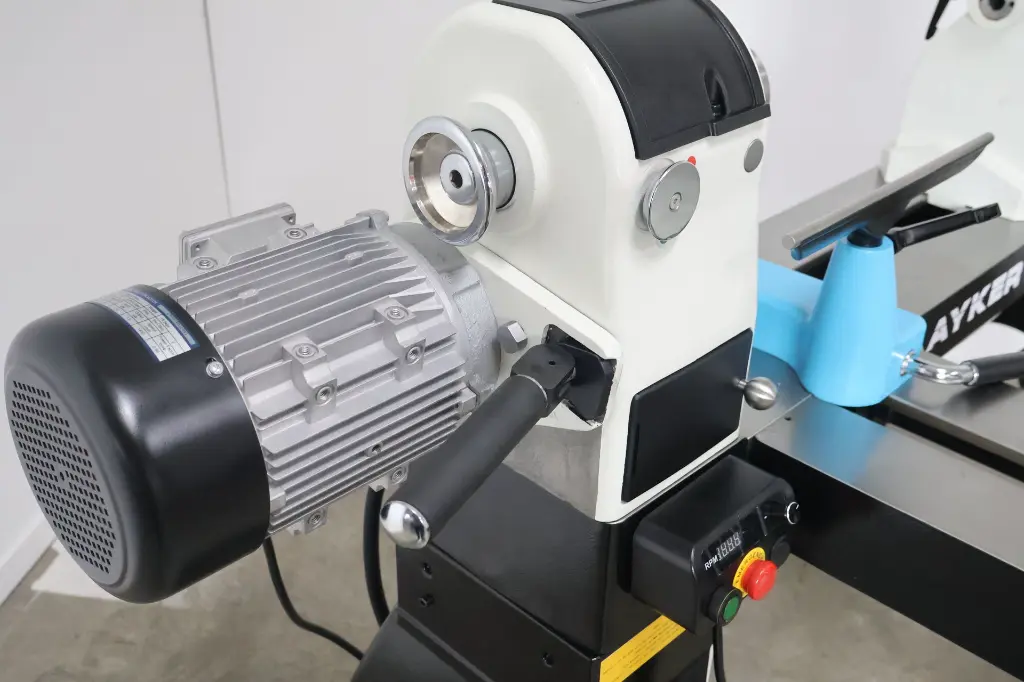

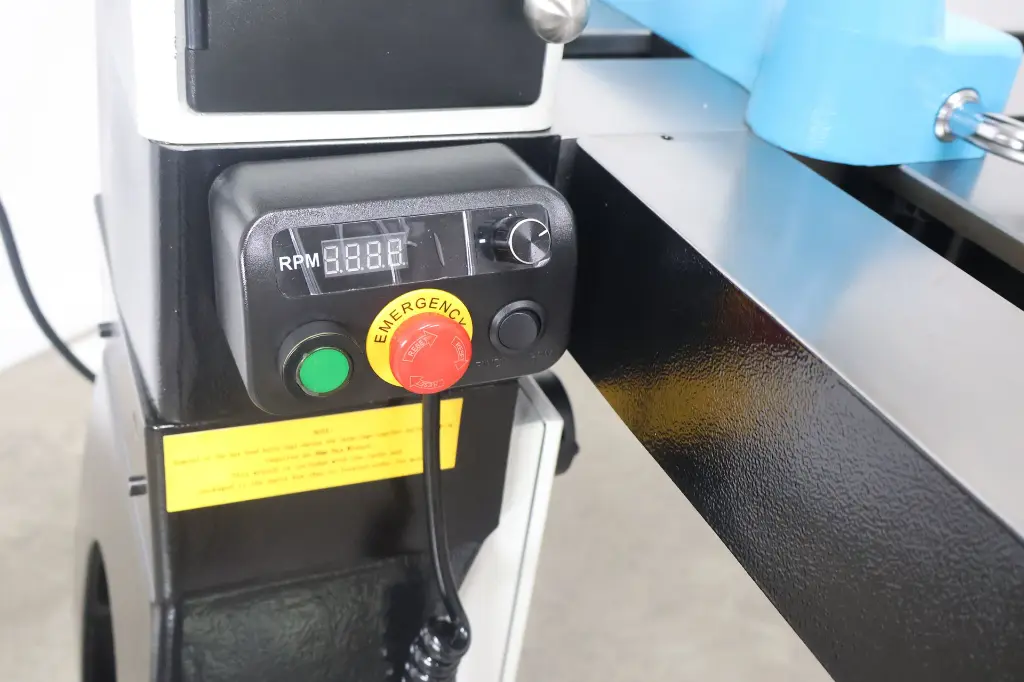

- Motor Power: 2HP, Inverter-Controlled

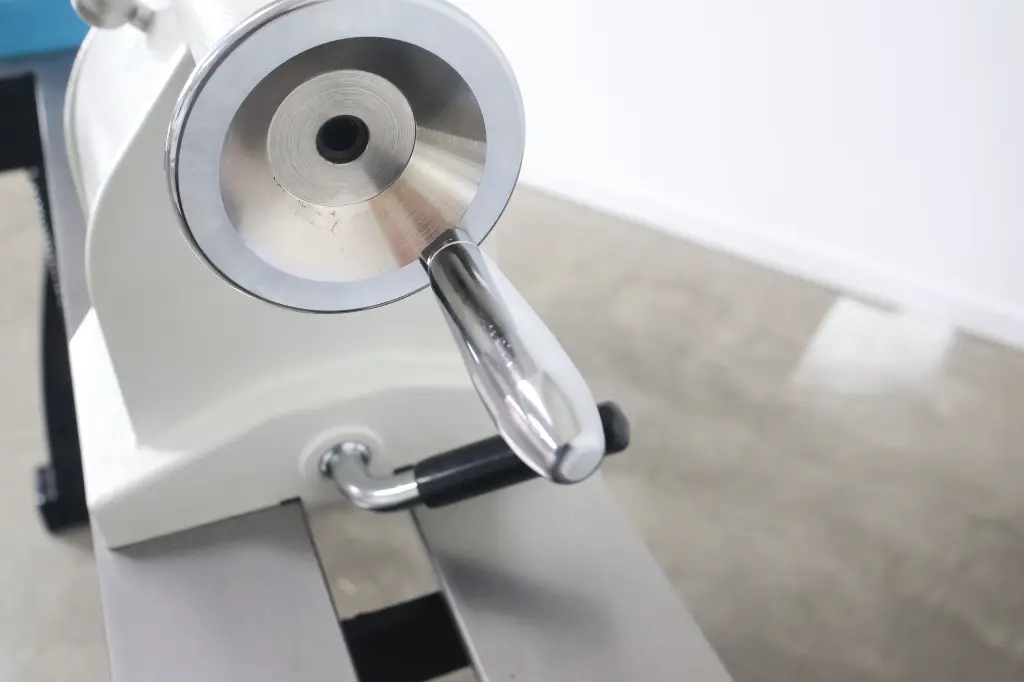

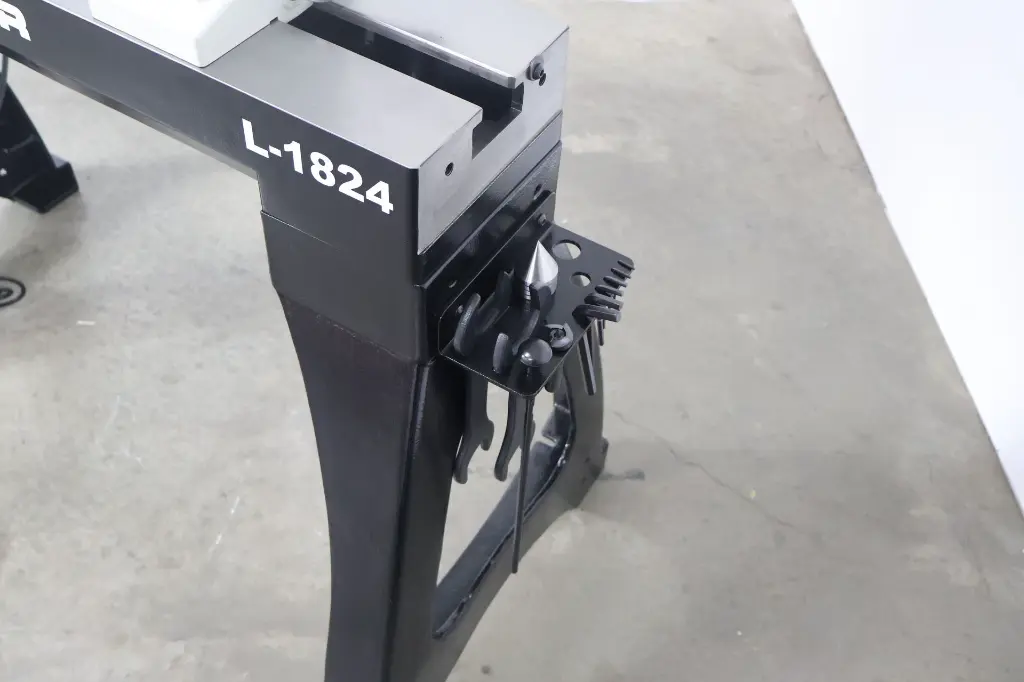

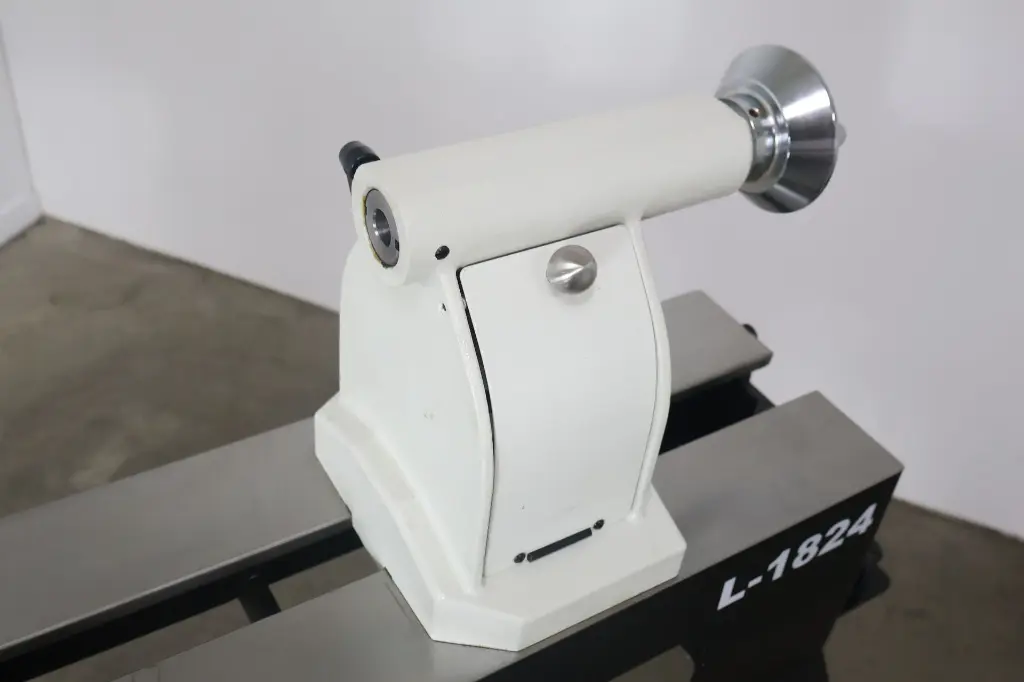

With additional features like a spindle lock, indexing, and tool storage inside the tailstock, the L1824 offers functionality and convenience, making it the perfect tool for demanding woodturning tasks.
Please Log in to see buy options.
Specifications – L1824
| Feature | Specification |
|---|---|
| Motor Power (P1 Input) | 2–1/2HP |
| Motor Power (P2 Output) | 2HP |
| Spindle Speed Ranges | 3 (50–900/100–1850/200–3850) |
| Swing Over Bed | 457mm |
| Swing Over Tool Rest | 349mm |
| Working Distance Between Centers | 610mm |
| Tool Rest Post Diameter | 1" |
| Headstock Taper | MT2 |
| Tailstock Taper | MT2 |
| Ram Travel | 115mm |
| Indexing Positions | 24 |
| Bottom of Base to Spindle | 1100mm |

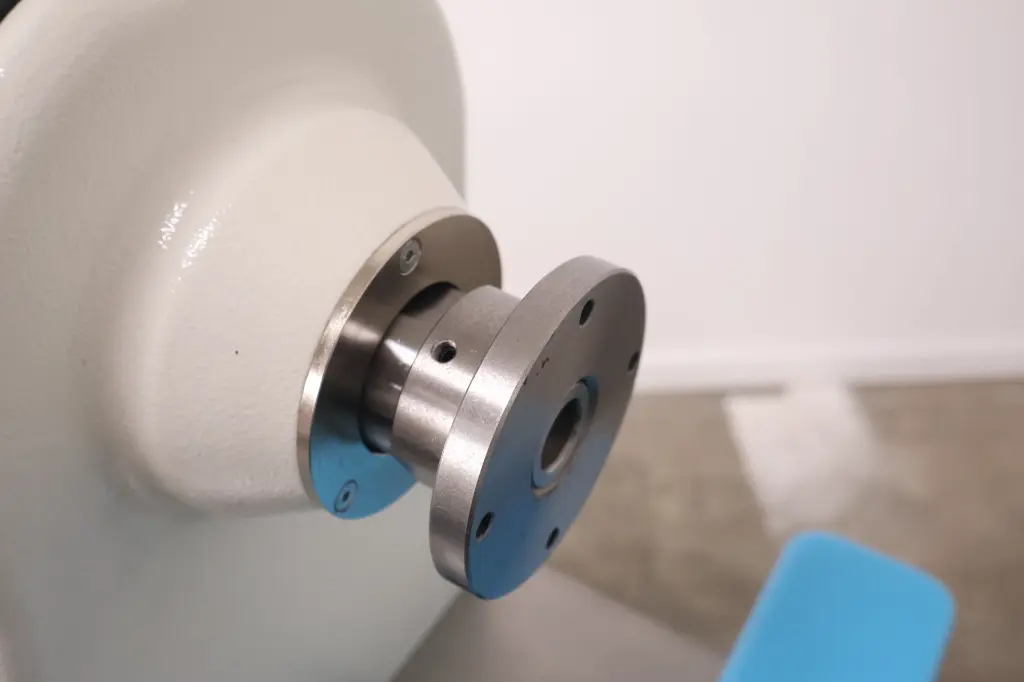

| Spindle Nose Options | Standard: M33x3.5mm |
| Option: M30x3.5mm | |
| Option: 1-1/4"x8TPI | |

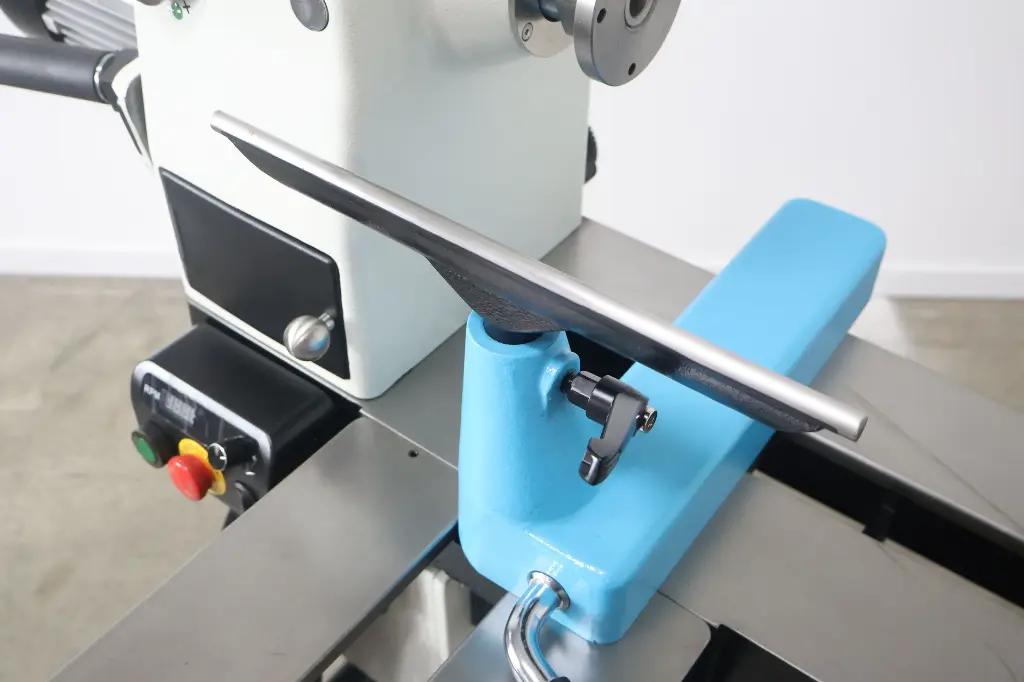

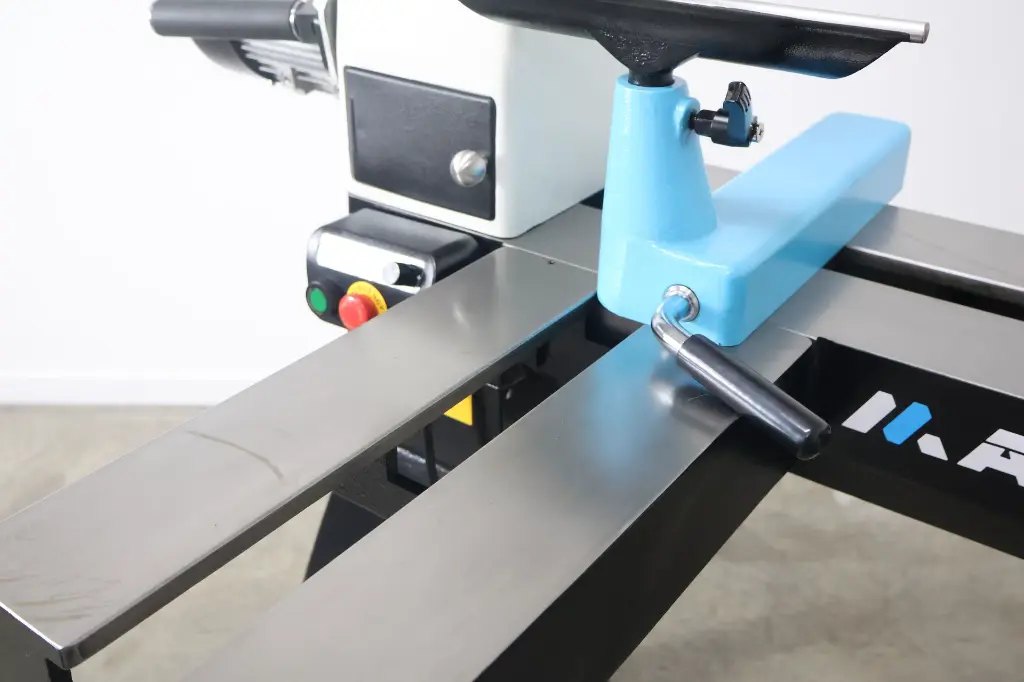

| Tool Rest Options | Standard: 12" |
| Option: 4", 6", 8" | |
| Face Plate Options | Standard: 3" |
| Option: 6" | |
| Net/Gross Weight | 170kg / 210kg |
| Shipping Carton | 1470x668x660mm |
| Container Load Qty | 20' Container: 33 |
| 40'GP Container: 72 |
