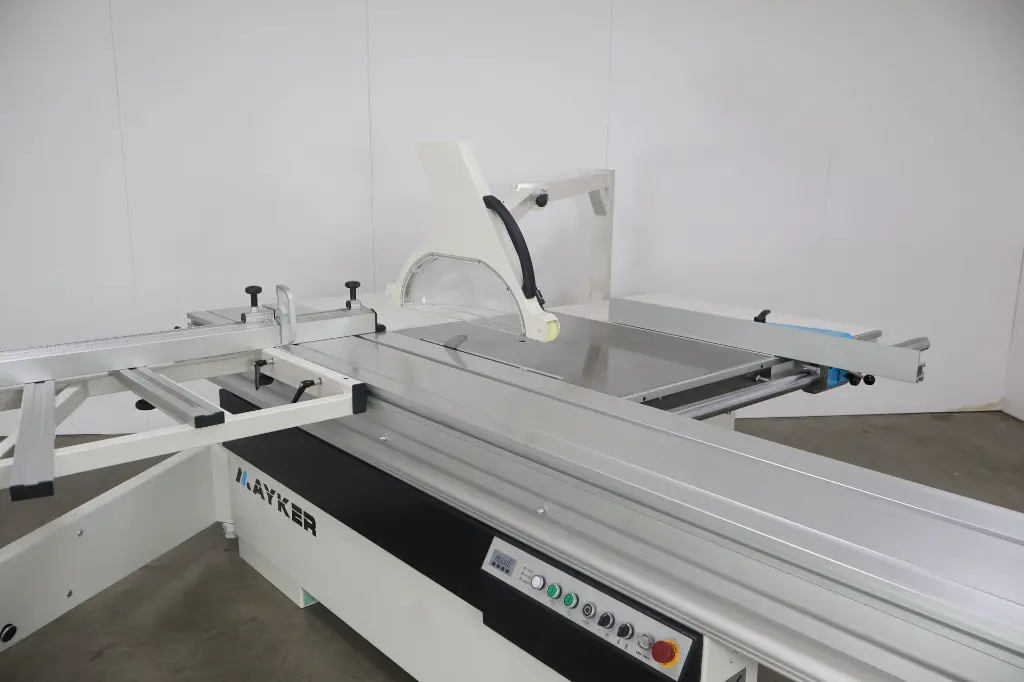

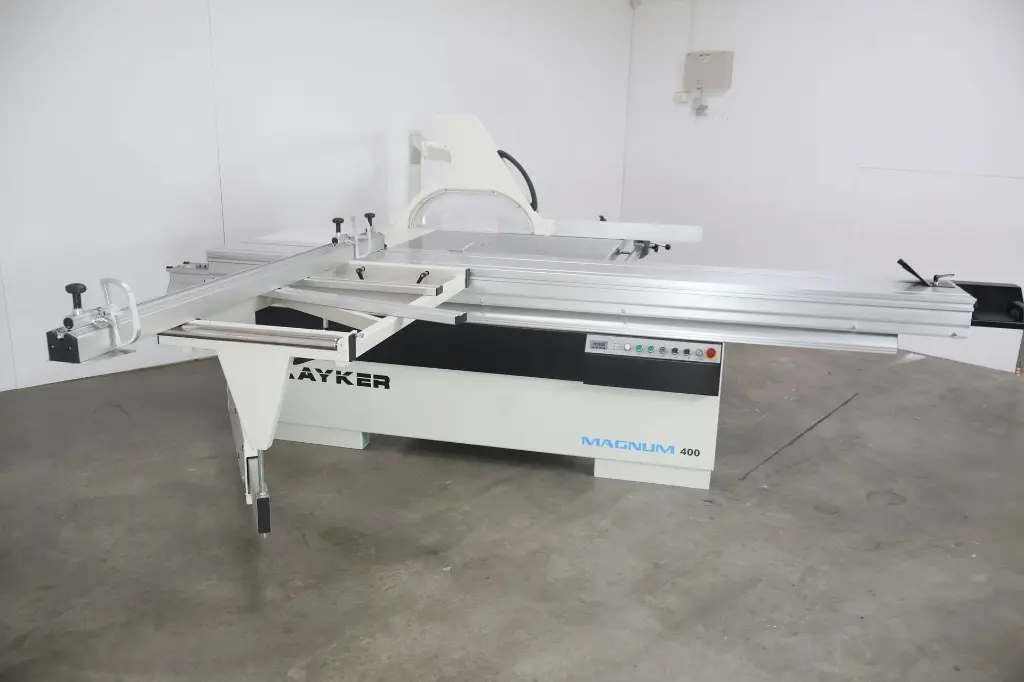

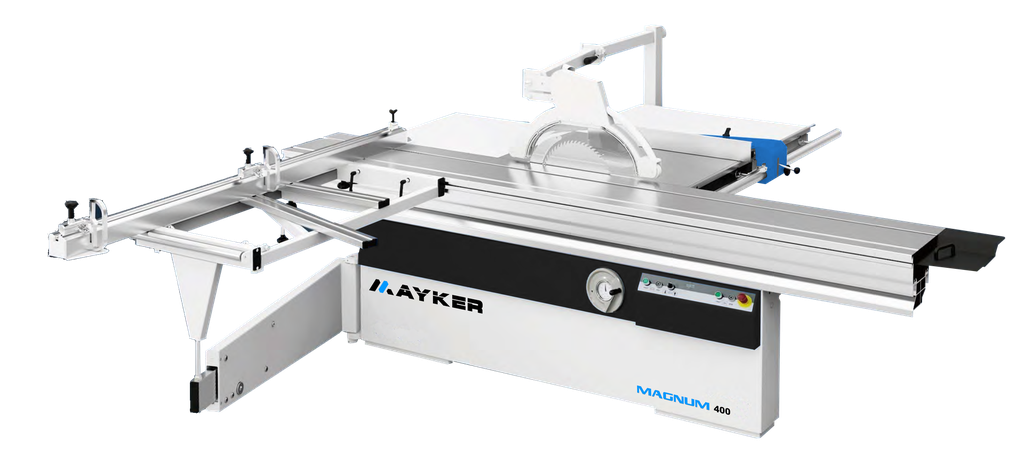

Mayker Magnum Panel Saw 3200 (3PH)
Professional Quality for Medium-Sized Businesses

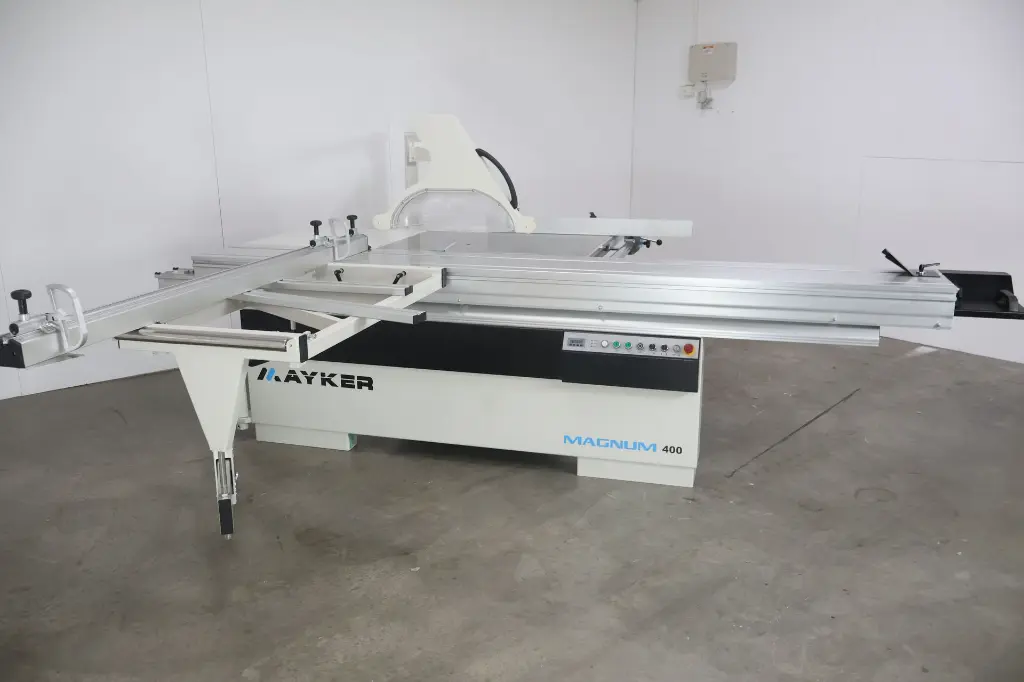

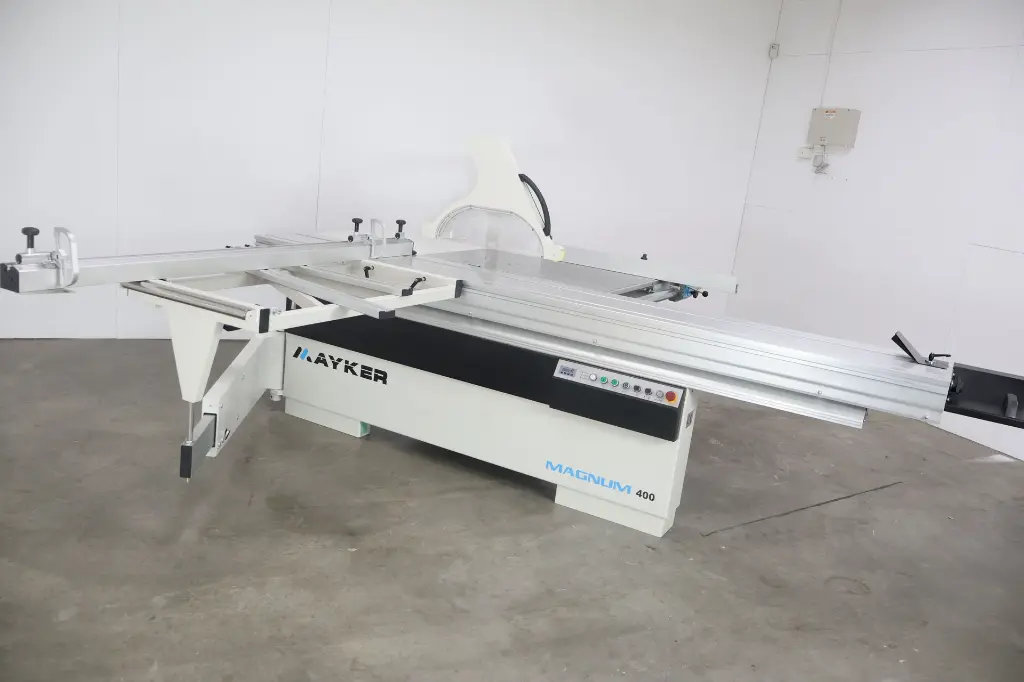

The Magnum Panel Saw 3200 (3PH) is a heavy-duty, professional-grade machine, designed for medium-sized businesses. Its precision and power make it the perfect solution for cutting panels up to 3200mm long with ease and accuracy. Everything about this machine reflects its professional build quality and reliability, ensuring flawless performance in demanding woodworking environments.
- Main Blade Diameter: 315mm
- Main Blade Speed: 3000/4000/5000 RPM

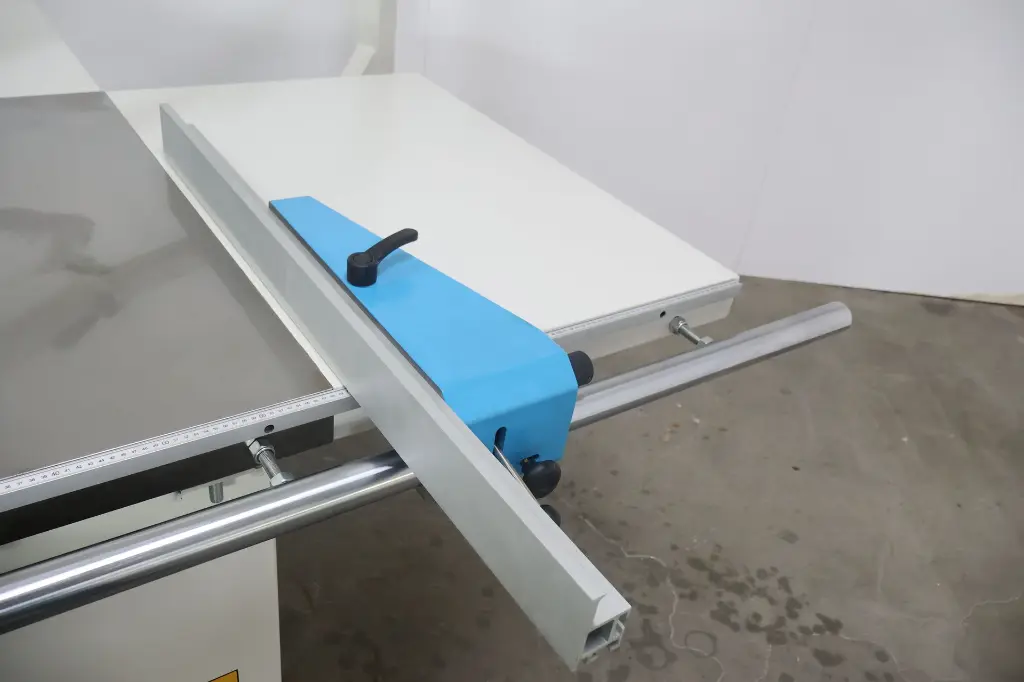

- Max Rip Capacity: 1250mm

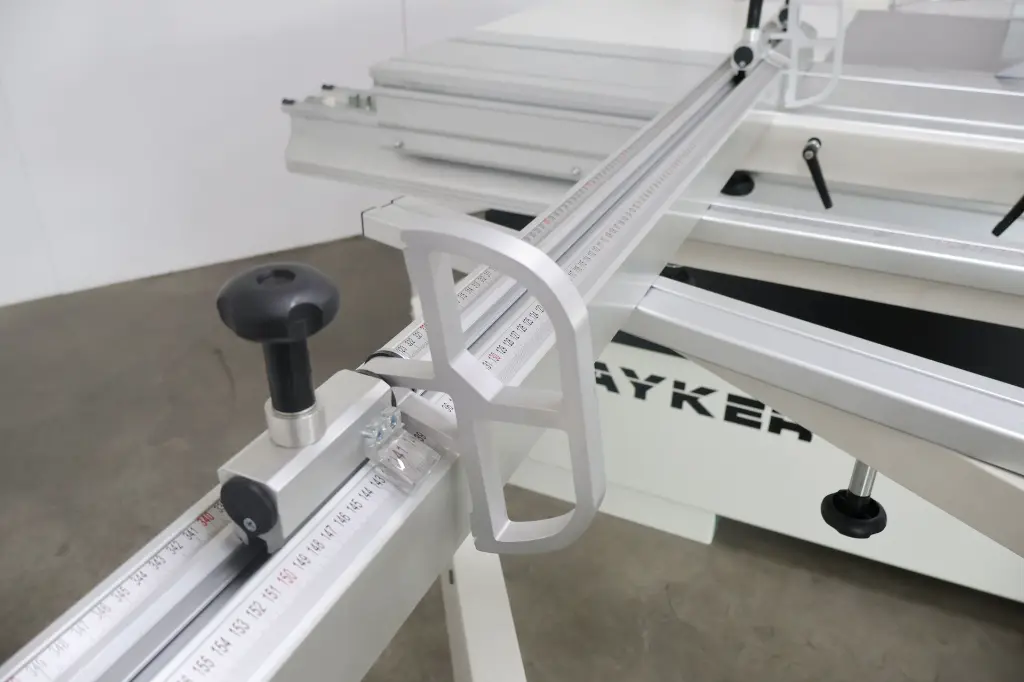

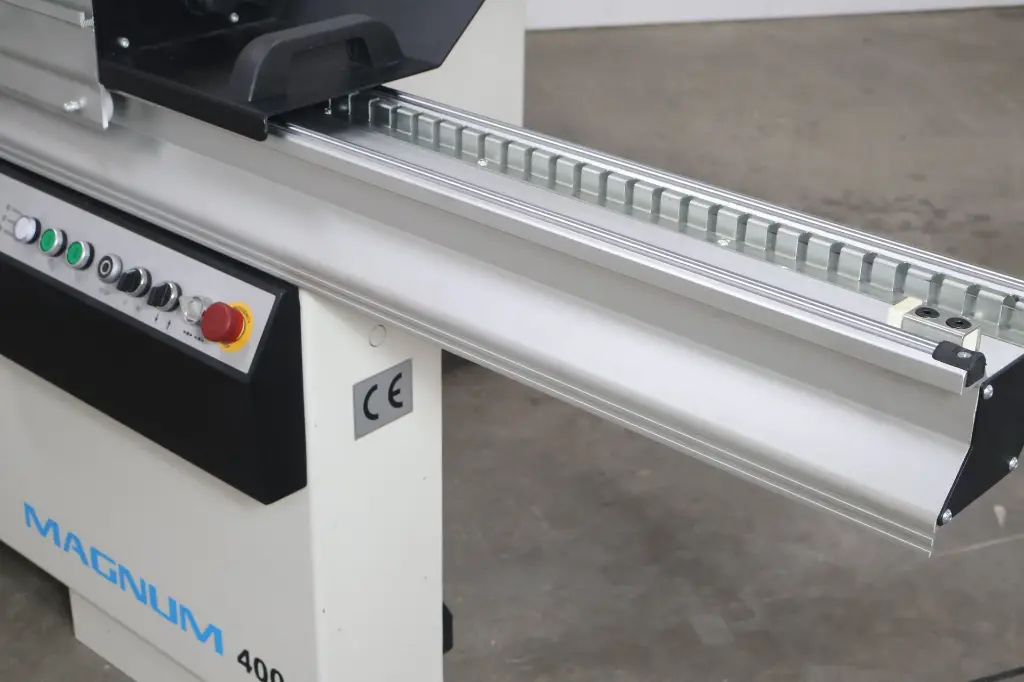

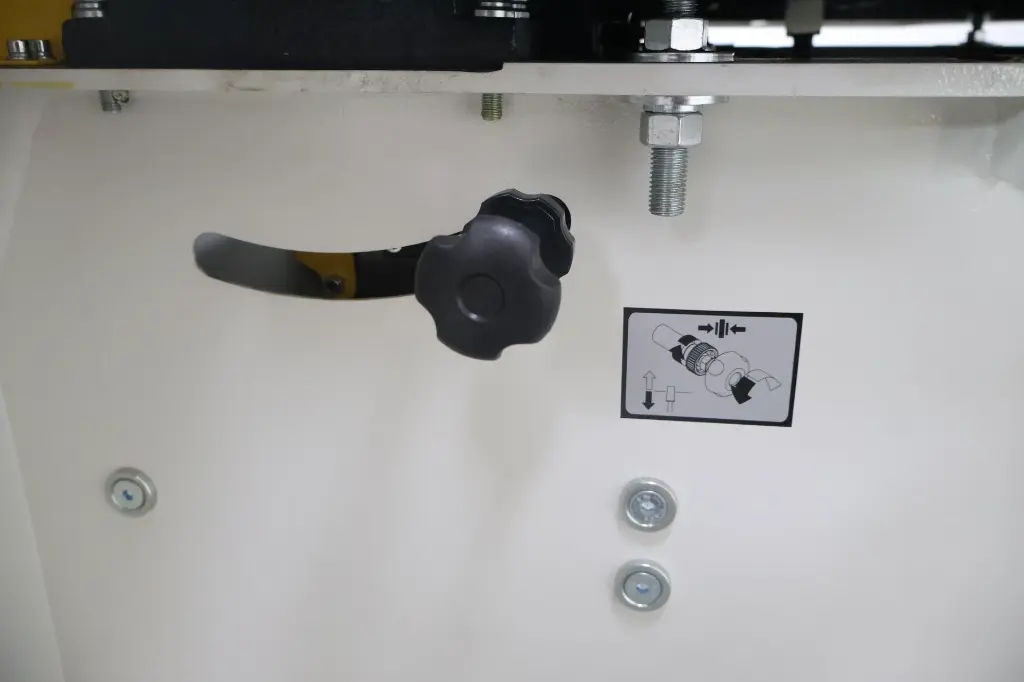

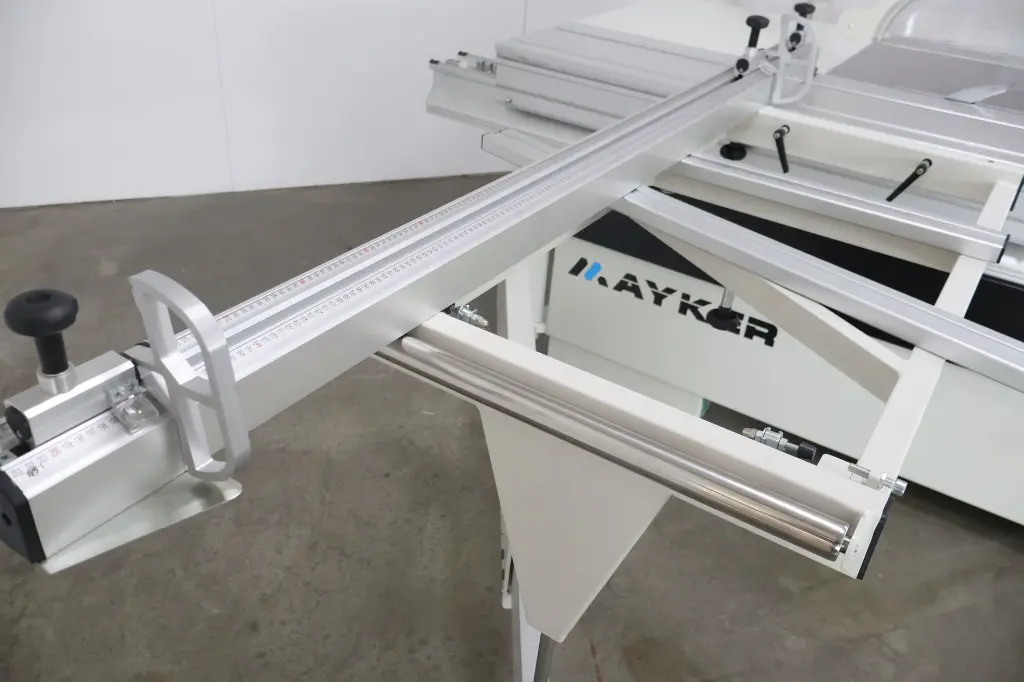

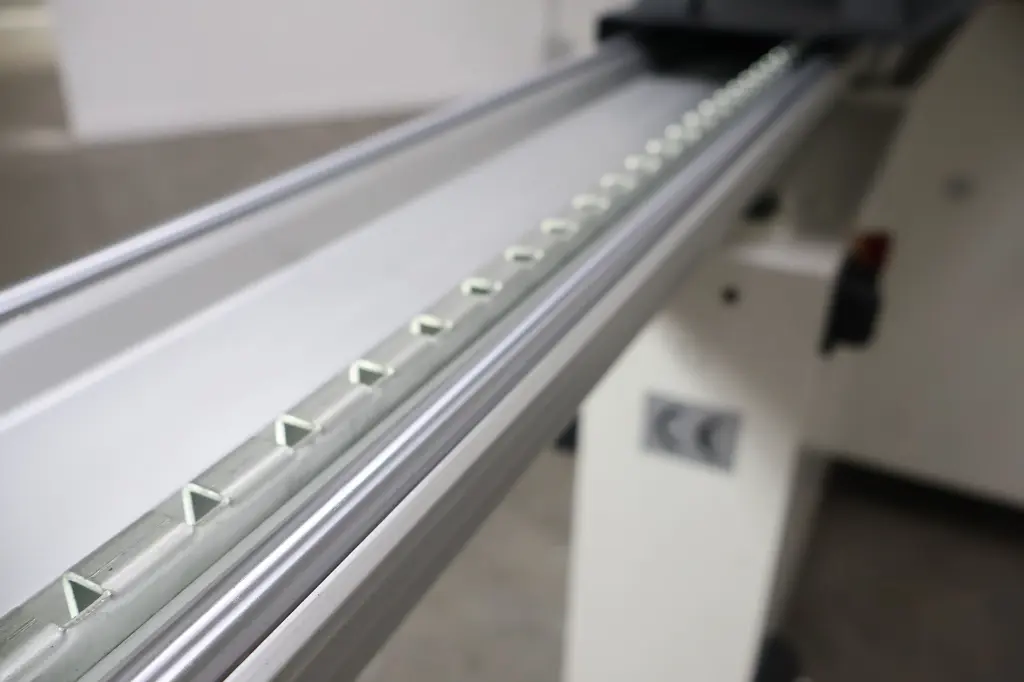

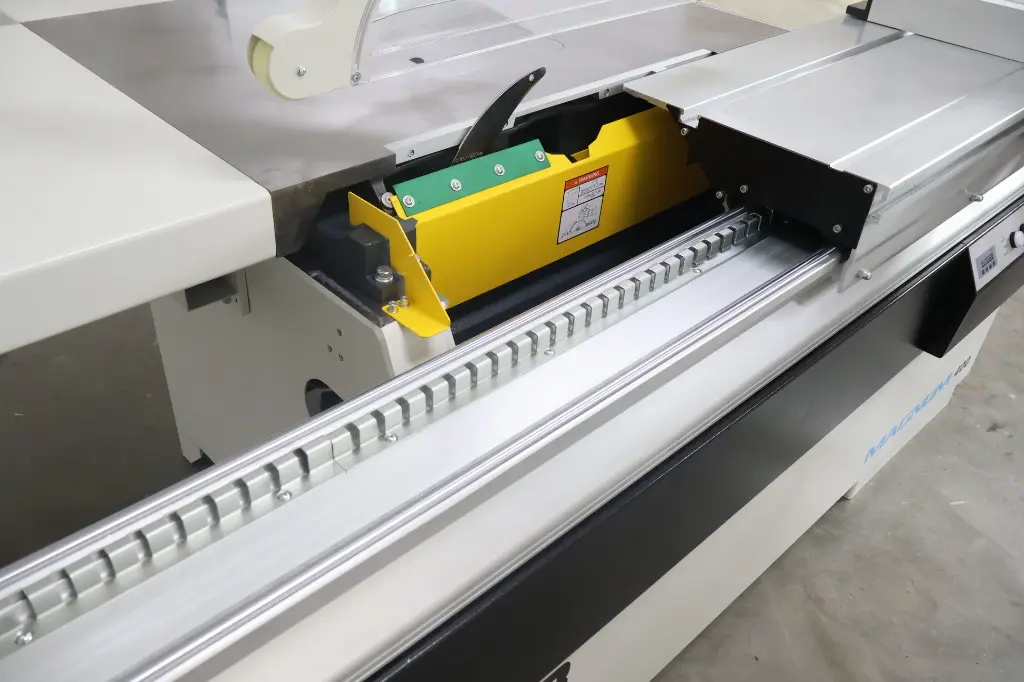

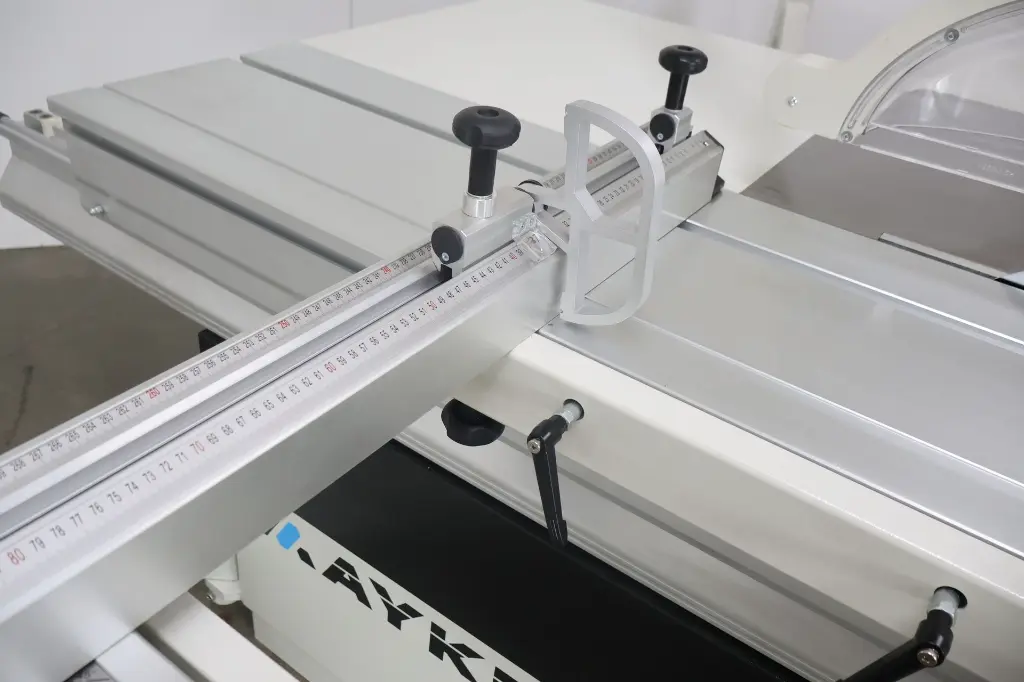

Equipped with a dual-shaft sliding saw unit for enhanced stability and reduced vibration, the Mayker Magnum Panel Saw also features a large-section crosscutting fence with reversible stops and a quick speed-change system for effortless adjustments. This panel saw is built to deliver consistent, high-quality results for any woodworking project
Specifications – 3200 (3PH)
| Feature | Specification |
|---|---|
| Main Blade Diameter | 315mm |
| Main Blade Speed | 3000/4000/5000 RPM |

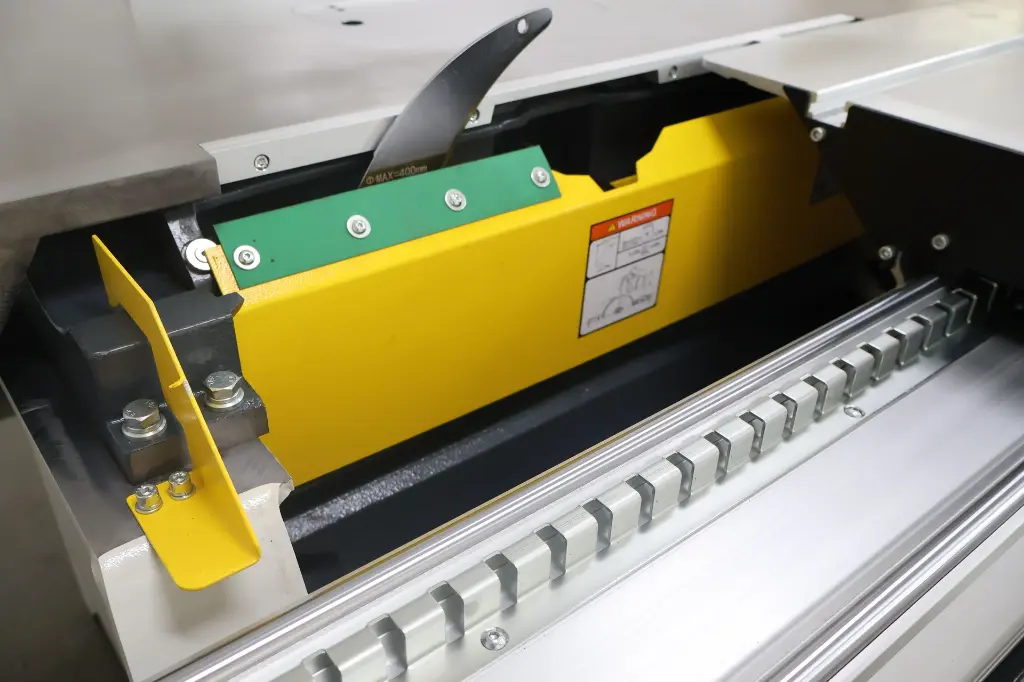

| Scoring Blade Diameter | 120mm |
| Scoring Blade Speed | 8000 RPM |
| Blade Tilt | 0–45° |
| Max Depth of Cut @ 45° | 67mm |
| Max Depth of Cut @ 90° | 95mm |
| Max Rip Capacity | 1250mm |
| Sliding Table | Standard: 3200mm |
| Blade Rising | Manual |
| Blade Tilting | Manual |
| Table Size | 800 x 530mm |
| Dust Extraction Outlet | 100mm |
| Main Motor Output | 3*400V, 5.5kW S1 |
| Scoring Motor Output | 0.75kW S1 |
| Net/Gross Weight | 680kg |
