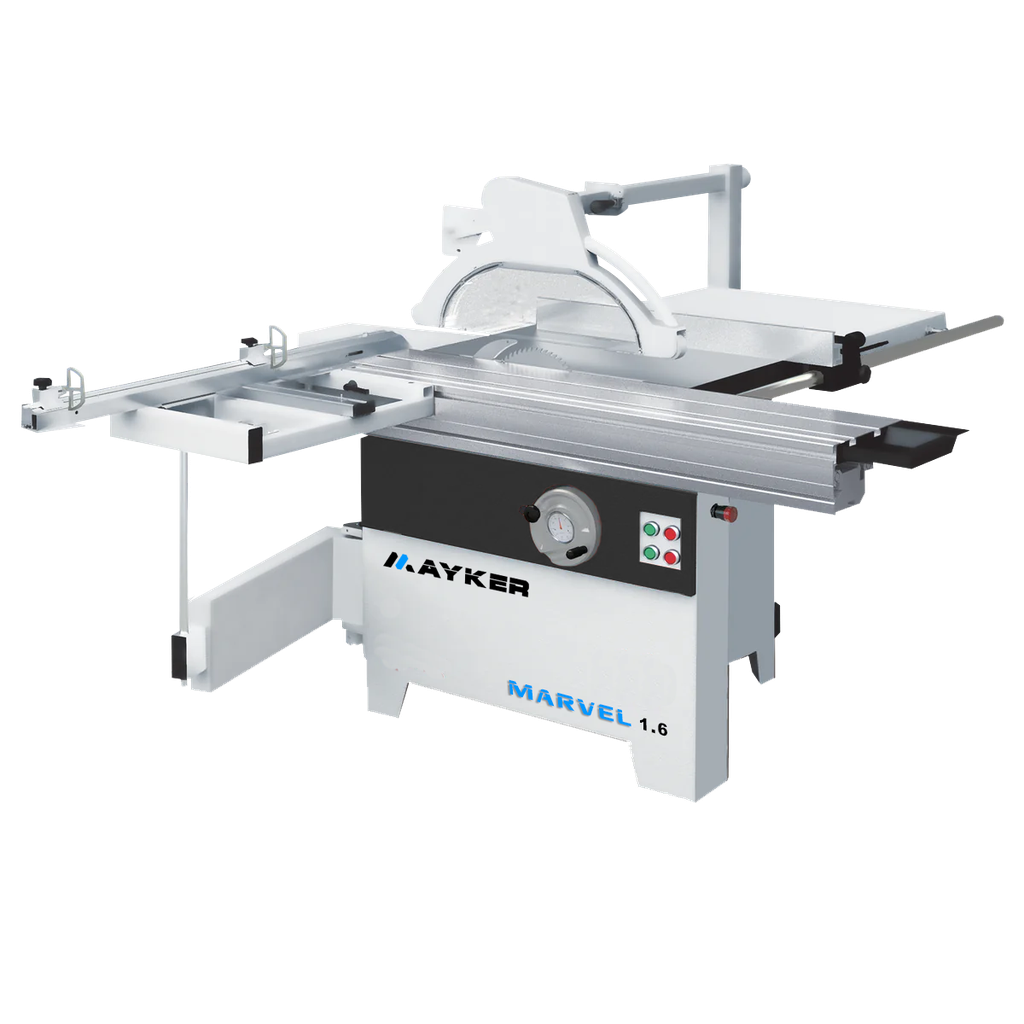

Mayker Marvel Panel Saw
Compact and Fully Featured for Precision Cutting
The Marvel Panel Saw 315 is the perfect compact alternative for workshops that don’t require a large panel saw. Built with a robust chassis of heavy-gauge steel and grey cast iron trunnion, this saw delivers excellent stability and vibration-free operation. Ideal for precise and efficient panel cutting, it combines durability and ease of use in a space-saving design.
- Main Blade Diameter: 315mm
- Main Blade Speed: 4500 RPM
- Max Rip Capacity: 1250mm
Equipped with a dual-shaft sliding saw unit for enhanced stability, reversible saw fence for efficient handling of large panels, and a ball-bearing sliding carriage for precision cutting, the Marvel Panel Saw 315 ensures flawless performance in any woodworking project.
| Brand: Mayker |
Specifications – Marvel Panel Saw 315
| Feature | Specification |
|---|---|
| Main Blade Diameter | 315mm |
| Main Blade Speed | 4500 RPM |
| Scoring Blade Diameter | 120mm |
| Scoring Blade Speed | 8000 RPM |
| Blade Tilt | 0–45° |
| Max Depth of Cut @ 45° | 67mm |
| Max of Cut @ 90° | 95mm |
| Max Rip Capacity | Standard: 1250mm |
| Sliding Table | 1600 mm |
| Table Size | 800x530mm |
| Dust Extraction Outlet | 125mm & 100mm |
| Main Motor Output | 1*230V, 3kW S1 |
| Scoring Motor Output | 0.75kW S1 |
| Net/Gross Weight | 400kg / 460kg |
| Package Size | 1300x1000x1100mm |
