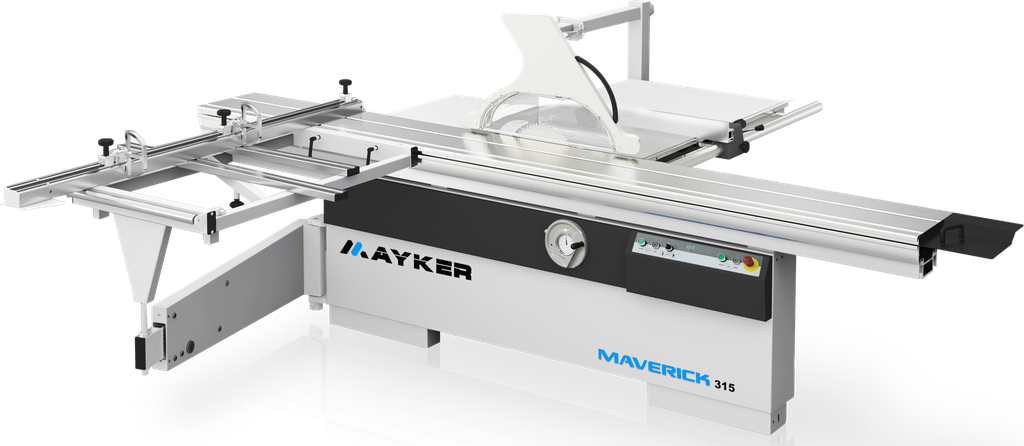

Mayker Maverick Panel Saw 2600 (1PH)
Professional Panel Saw
The Maverick Panel Saw 2600 (1PH) is a professional-grade machine designed for small-sized businesses seeking precision and efficiency. Compact yet powerful, it provides an ideal solution for cutting panels up to 2600mm long with exceptional accuracy. Standard with manual rise, fall & tilt of the main blade, this saw ensures easy and smooth operation, making it a reliable choice for busy workshops.
- Main Blade Diameter: 315mm
- Main Blade Speed: 4500 RPM
- Max Rip Capacity: 1250mm
Built with a dual-shaft sliding saw unit for added stability, the Maverick Panel Saw 2600 features a large-section crosscutting fence with reversible stops and a roller guide system for precise and vibration-free sliding cuts. Designed for professional woodworking, this panel saw guarantees flawless performance in every use.
Specifications – Maverick Panel Saw 2600 (1PH)
| Feature | Specification |
|---|---|
| Main Blade Diameter | 315mm |
| Main Blade Speed | 4500 RPM |
| Scoring Blade Diameter | 120mm |
| Scoring Blade Speed | 8000 RPM |
| Blade Tilt | 0–45° |
| Max Depth of Cut @ 45° | 67mm |
| Max Depth of Cut @ 90° | 95mm |
| Max Rip Capacity | 1250mm |
| Sliding Table Size | 2600x360mm |
| Sliding Table Cutting Capacity | 2600mm |
| Blade Rising | Manual |
| Blade Tilting | Manual |
| Table Size | 800x(530+820)mm |
| Dust Extraction Outlet | 120mm |
| Main Motor Output | 1*230V, 4kW S1 |
| Scoring Motor Output | 0.75kW S1 |
| Net/Gross Weight | 650kg / 680kg |
| Package Size | Pallet: 2300x1160x915mm |
