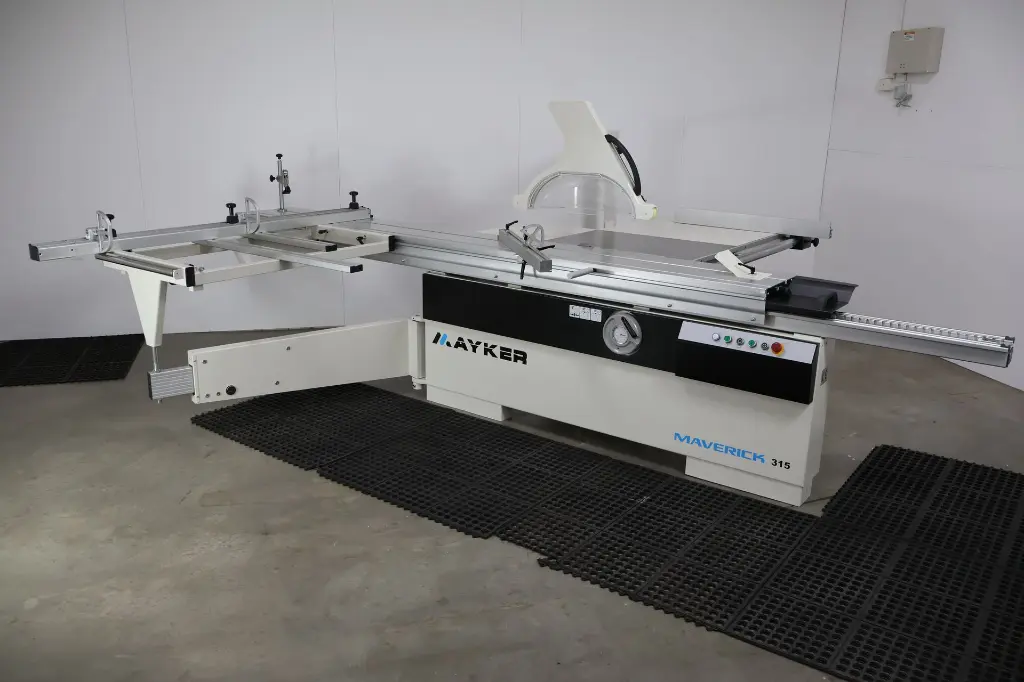

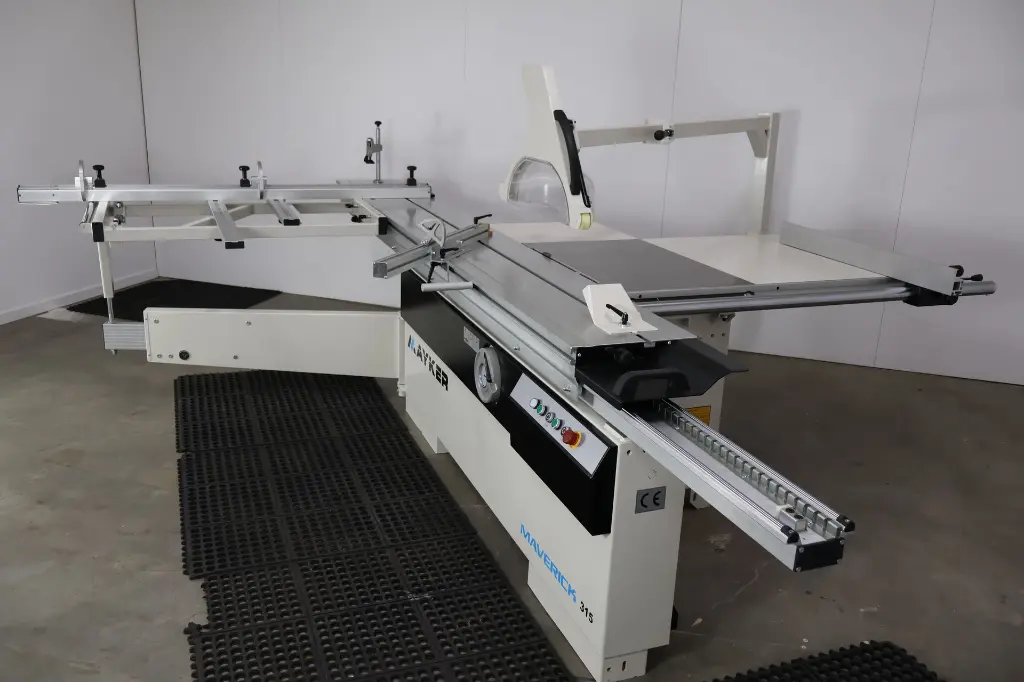

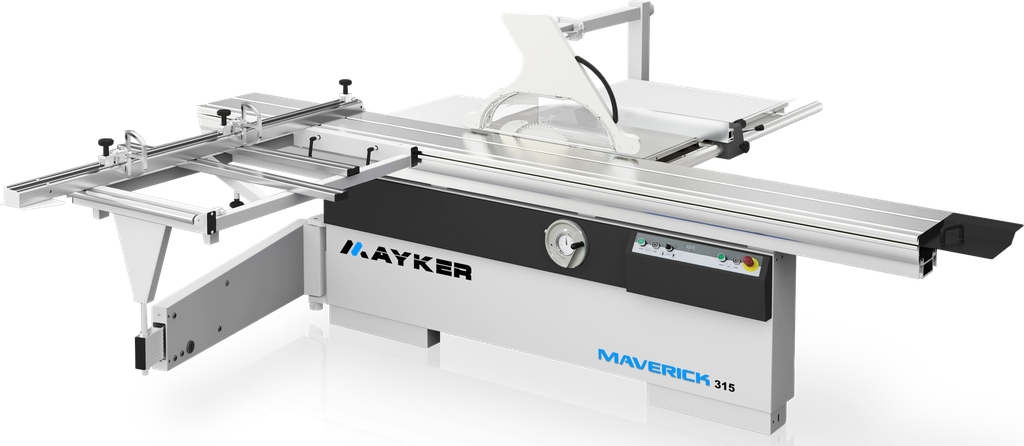

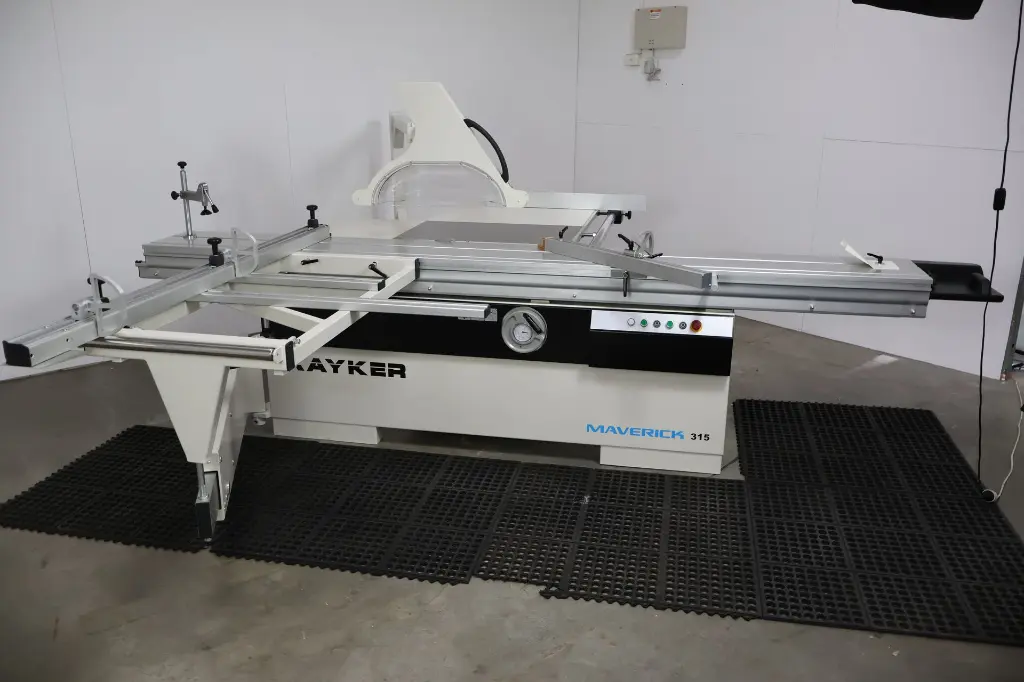

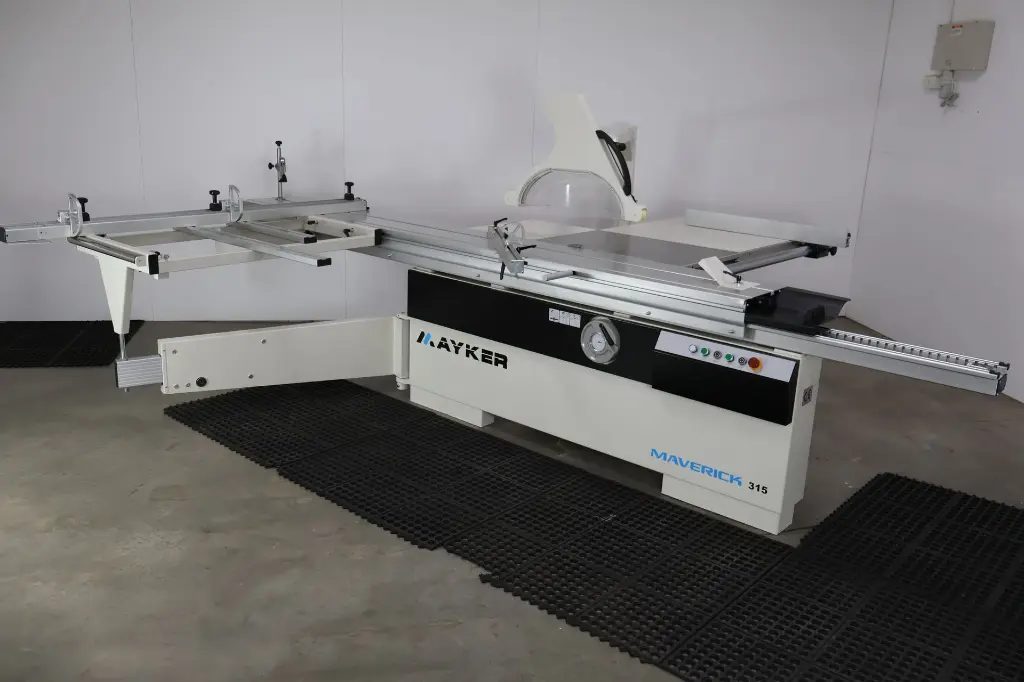

Mayker Maverick Panel Saw 2600 (1PH)
Professional Panel Saw
The Maverick Panel Saw 2600 (1PH) is a professional-grade machine designed for small-sized businesses seeking precision and efficiency. Compact yet powerful, it provides an ideal solution for cutting panels up to 2600mm long with exceptional accuracy. Standard with motorised blade rising, this saw ensures easy and smooth operation, making it a reliable choice for busy workshops.
- Main Blade Diameter: 315mm
- Main Blade Speed: 4500 RPM
- Max Rip Capacity: 1250mm

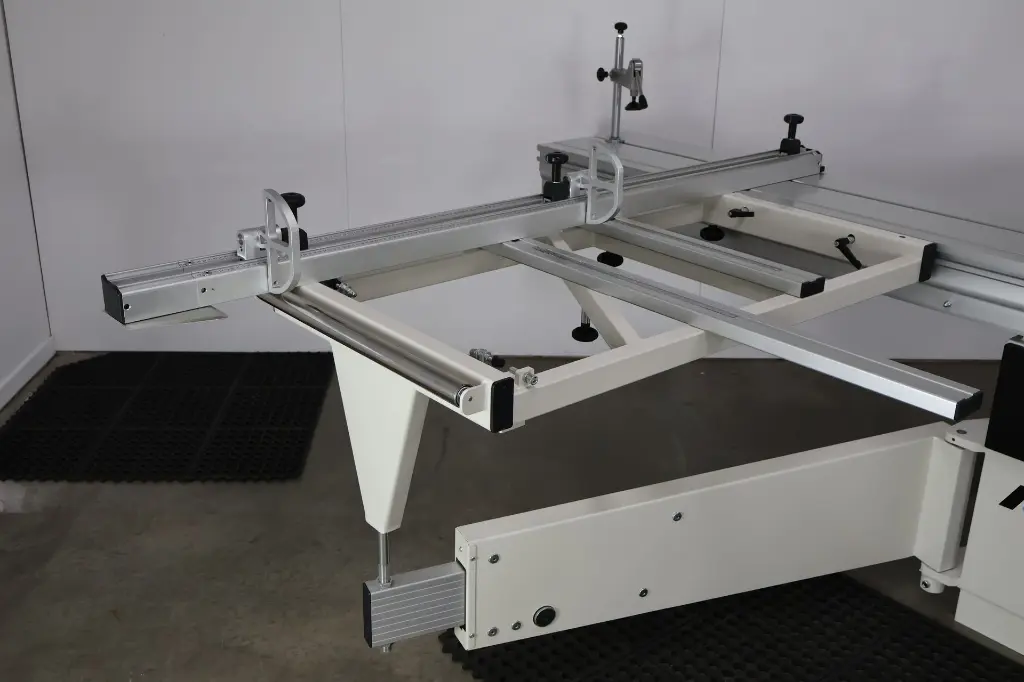

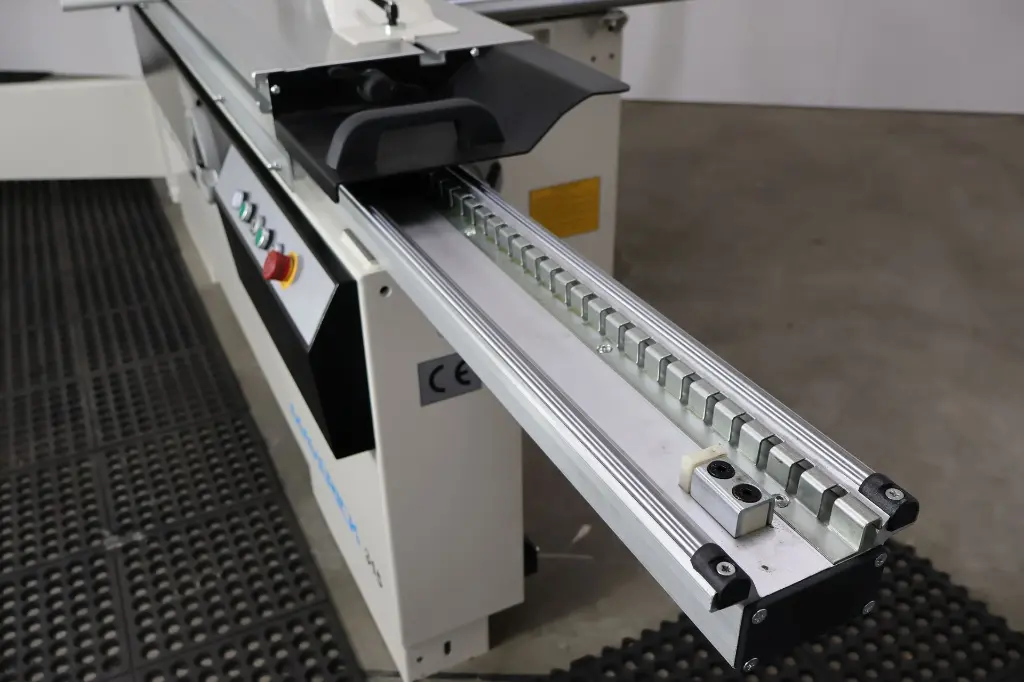

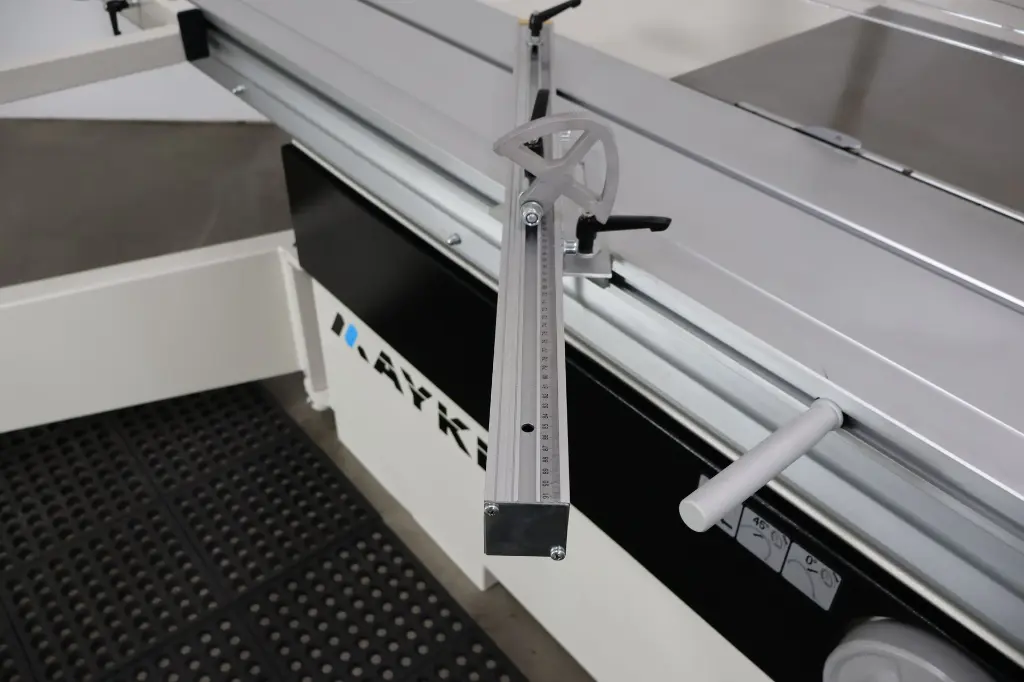

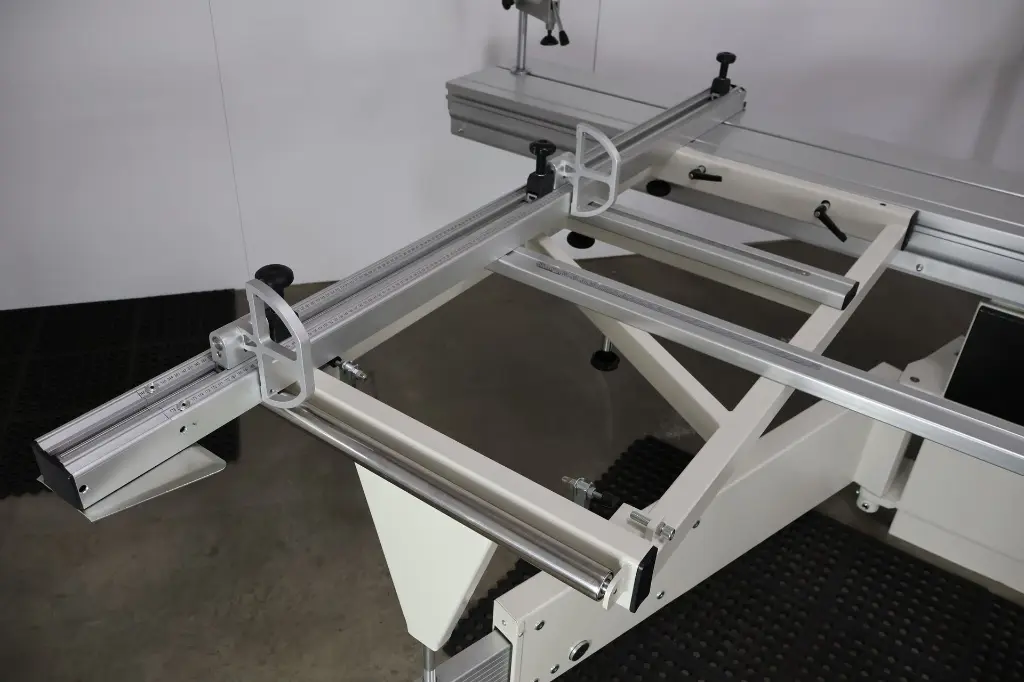

Built with a dual-shaft sliding saw unit for added stability, the Maverick Panel Saw 2600 features a large-section crosscutting fence with reversible stops and a roller guide system for precise and vibration-free sliding cuts. Designed for professional woodworking, this panel saw guarantees flawless performance in every use.
Please Log in to see buy options.
Specifications – Maverick Panel Saw 2600 (1PH)
| Feature | Specification |
|---|---|
| Main Blade Diameter | 315mm |
| Main Blade Speed | 4500 RPM |
| Scoring Blade Diameter | 120mm |
| Scoring Blade Speed | 8000 RPM |
| Blade Tilt | 0–45° |
| Max Depth of Cut @ 45° | 67mm |
| Max Depth of Cut @ 90° | 95mm |
| Max Rip Capacity | 1250mm |
| Sliding Beam Size | Standard: 2600x360mm |
| Option: 3200x360mm / 3800x360mm | |
| Sliding Beam Cutting Capacity | Standard: 2600mm |
| Option: 3200mm / 3800mm | |
| Blade Rising | Standard: Manual Rised |
| Option: Motor Rised | |

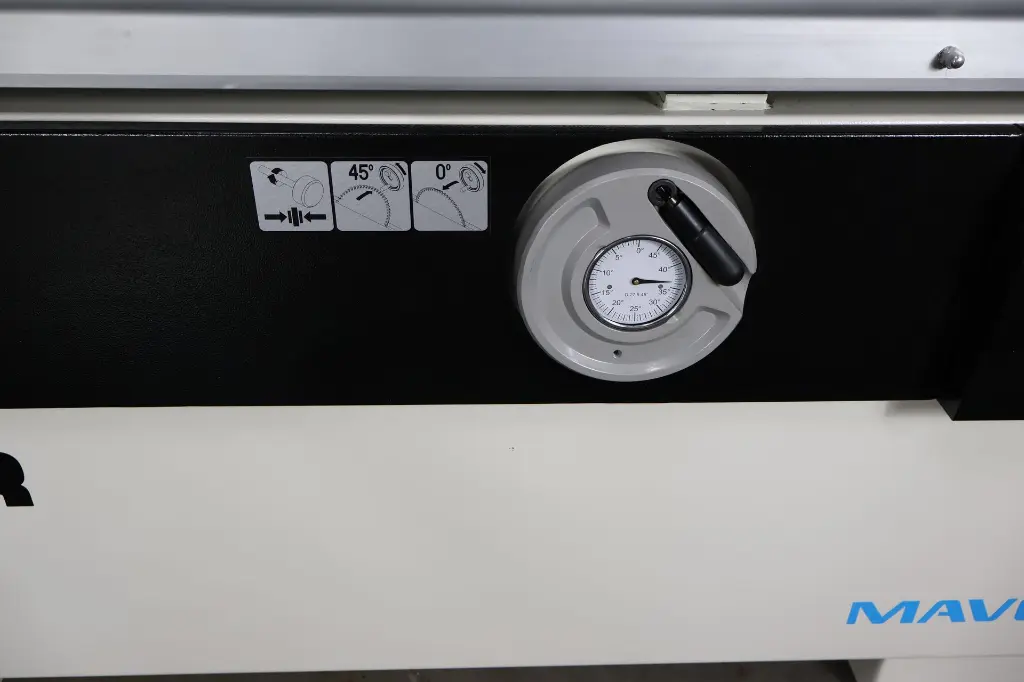

| Blade Tilting | Standard: Manual Tilting |
| Option: Motor Tilting | |
| Table Size | 800x(530+820)mm |
| Dust Extraction Outlet | 120mm |
| Main Motor Output | 1*230V, 4kW S1 |
| Scoring Motor Output | 0.75kW S1 |
| Net/Gross Weight | 650kg / 680kg |
| Package Size | Pallet: 2300x1160x915mm |
