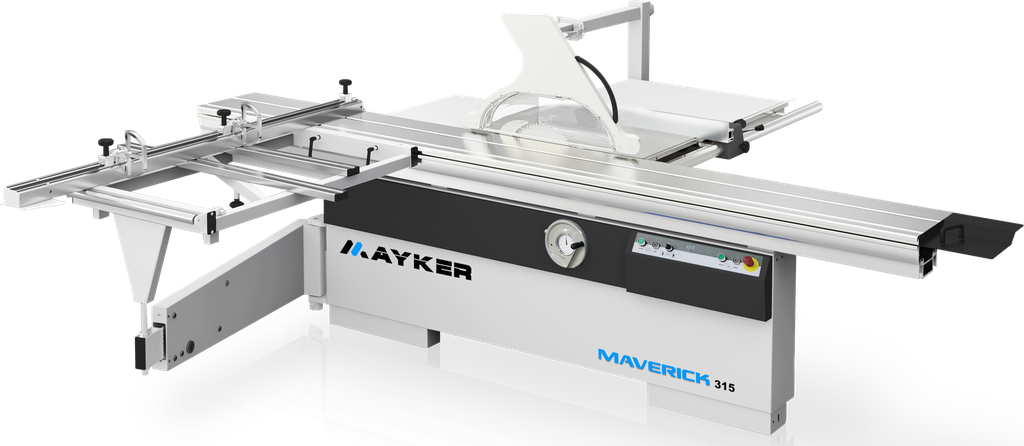

Mayker Maverick Panel Saw 3200 (3PH)
Professional Quality for Medium-Sized Businesses
The Maverick Panel Saw 3200 (3PH) is a heavy-duty, professional-grade machine, ideal for medium-sized businesses. This panel saw is the perfect solution for cutting panels up to 3200mm in length with accuracy and ease. Built with durability in mind, the Maverick Panel Saw showcases exceptional stability and reliability to meet the needs of professional woodworking environments.
- Main Blade Diameter: 400mm
- Main Blade Speed: 3000/4000/5000 RPM
- Max Rip Capacity: 1250mm
Equipped with a dual-shaft sliding saw unit for added stability, a reversible saw fence for handling large panels, and a quick speed-change system for convenient adjustments, the Maverick Panel Saw 3200 (3PH) is designed to deliver precision and efficiency for any woodworking project.
Please Log in to see buy options.
Specifications – Maverick Panel Saw 3200 (3PH)
| Feature | Specification |
|---|---|
| Main Blade Diameter | 400mm |
| Main Blade Speed | 3000/4000/5000 RPM |
| Scoring Blade Diameter | 120mm |
| Scoring Blade Speed | 8000 RPM |
| Blade Tilt | 0–45° |
| Max Depth of Cut @ 45° | 85mm |
| Max Depth of Cut @ 90° | 125mm |
| Max Rip Capacity | 1250mm |
| Sliding Beam Size | Standard: 3200x418mm |
| Option: 3800x418mm | |
| Sliding Beam Cutting Capacity | Standard: 3200mm |
| Option: 3800mm | |
| Blade Rising | Standard: Manual Rised |
| Option: Motor Rised | |
| Blade Tilting | Standard: Manual Tilting |
| Option: Motor Tilting | |
| Table Size | 1020x(690+720)mm |
| Dust Extraction Outlet | 100mm |
| Main Motor Output | 3*400V, 5.5kW S1 or 7kW S1 |
| Scoring Motor Output | 0.75kW S1 |
| Net/Gross Weight | 760kg / 870kg |
| Package Size | Pallet: 2300x1190x910mm |
| Wood Box: 2300x1190x910mm | |
| Container Load Qty | Pallet Load: 18 pcs/40' |
| Wood Box Load: 17 pcs/40' |
