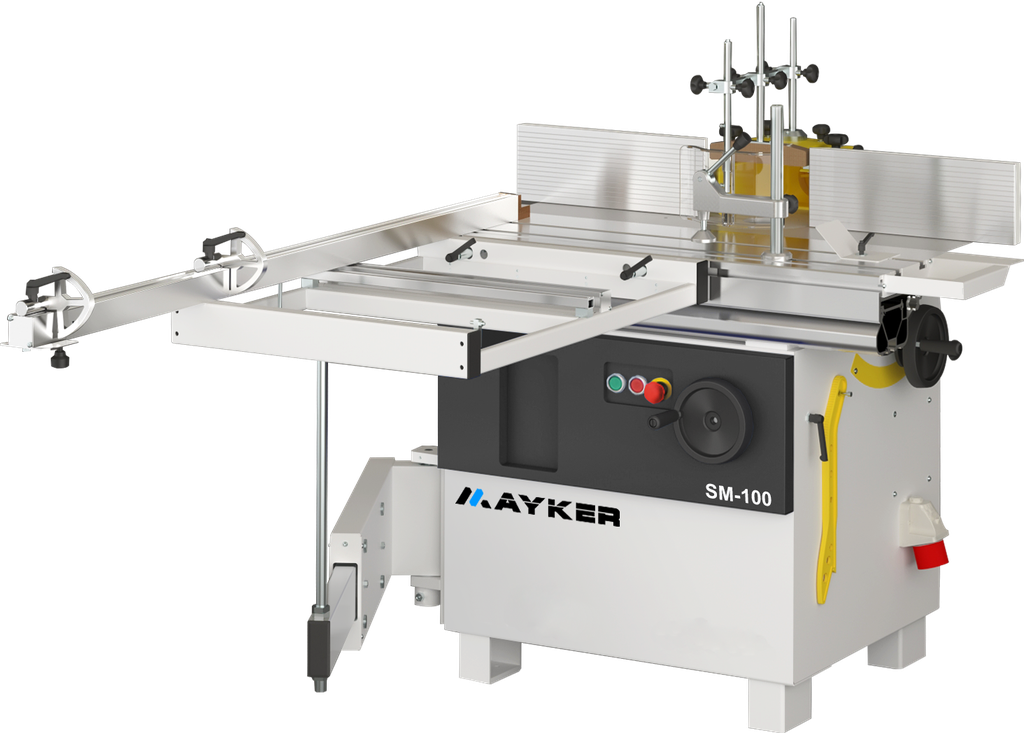

Mayker SM100 Spindle Moulder
Precision and Durability for Professional Workshops
The SM100 Spindle Moulder is expertly crafted for professional workshops, offering unmatched accuracy and durability. Its cast iron bed, precision-ground surface, and robust construction ensure both stability and longevity. This machine is designed to handle intricate moulding tasks with ease, making it an essential tool for any woodworking professional.
- Spindle Diameter: 30mm (optional 32, 35, or 40mm)
- Spindle Speed Range: 1400/3500/6000/8000 RPM
- Maximum Tool Diameter (Under Table): 175mm
With a 1200mm sliding table for ultra-smooth gliding and a tilting spindle that adjusts from -5° to 45°, the SM100 delivers versatility for a wide range of applications. Whether handling small blocks or larger panel fielding cutters up to 200mm, this spindle moulder ensures precision and control at every stage.
Please Log in to see buy options.
Specifications – SM100 Spindle Moulder
| Feature | Specification |
|---|---|
| Spindle Diameter | 30mm (32/35/40mm optional) |
| Spindle Speeds | 1400/3500/6000/8000 RPM |
| Max Spindle Stroke | 140mm |
| Spindle Length | 130mm |
| Spindle Tilting | -5° to 45° |
| Max Diameter of Table Opening | 220mm |
| Max Tool Diameter (Under Table) | 175mm |
| Max Tool Diameter (Above Table) | 200/250mm |
| Height of Table | 890mm |
| Max Height of Machine | 1300mm |
| Table Size | 1000x350mm |
| Suction Dust Hood Diameter | 100mm |
| Motor Options | Single-phase: 3kW S6 |
| Three-phase: 4kW S6 | |
| Net/Gross Weight | 235kg / 280kg |
| Package Size | 1150x900x1085mm |
| Container Load Qty | 20' Container: 24 |
| 40'GP Container: 52 |
