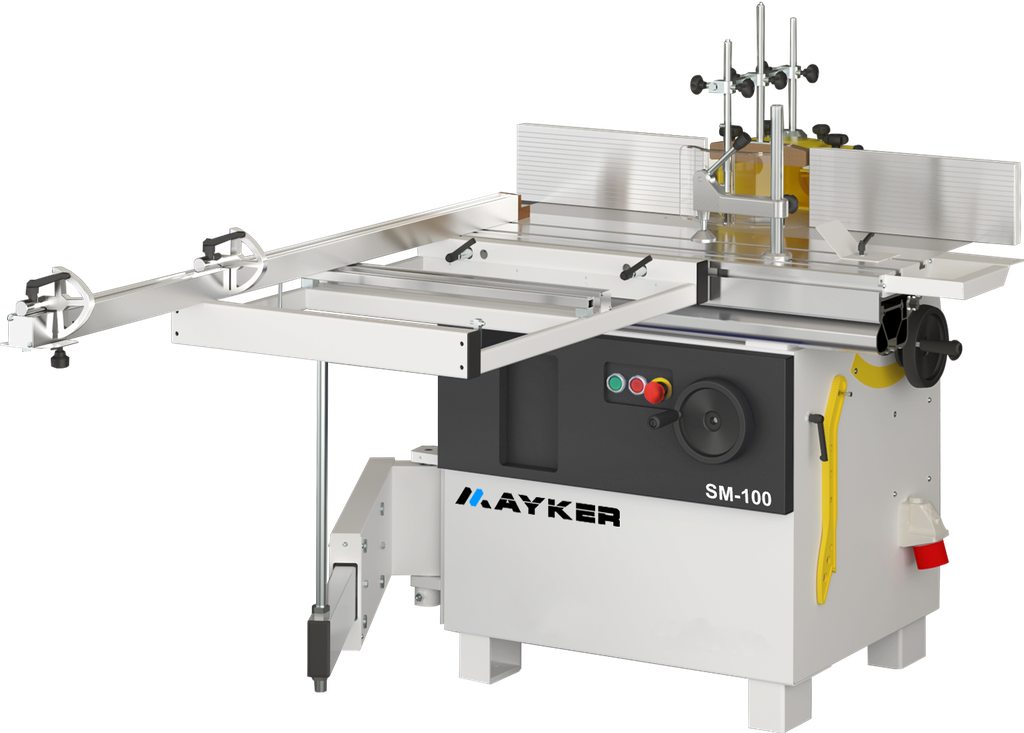

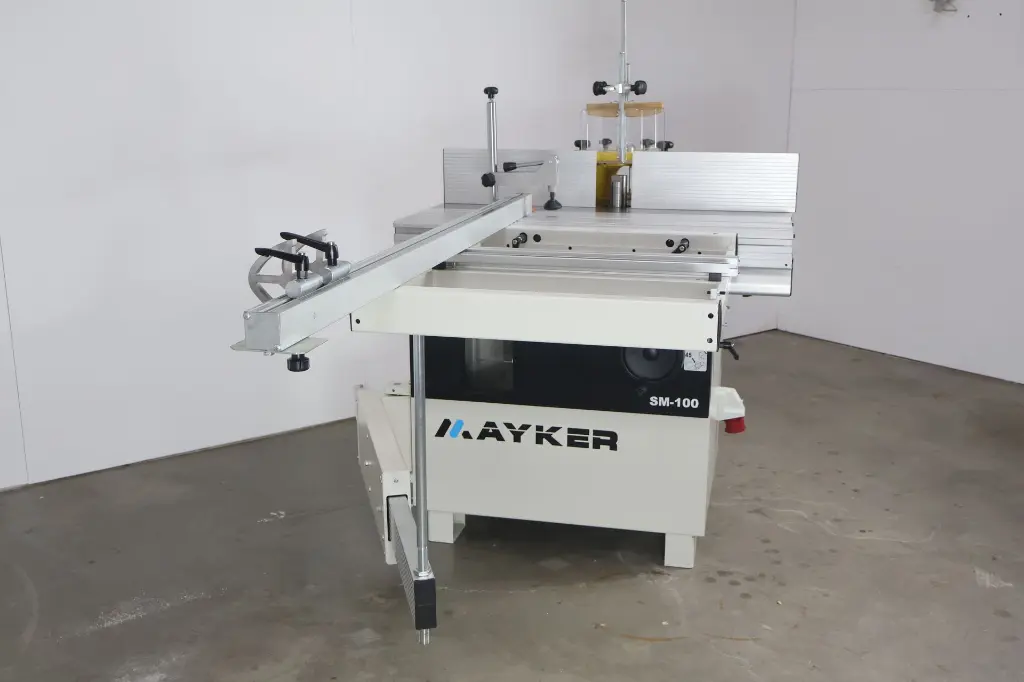

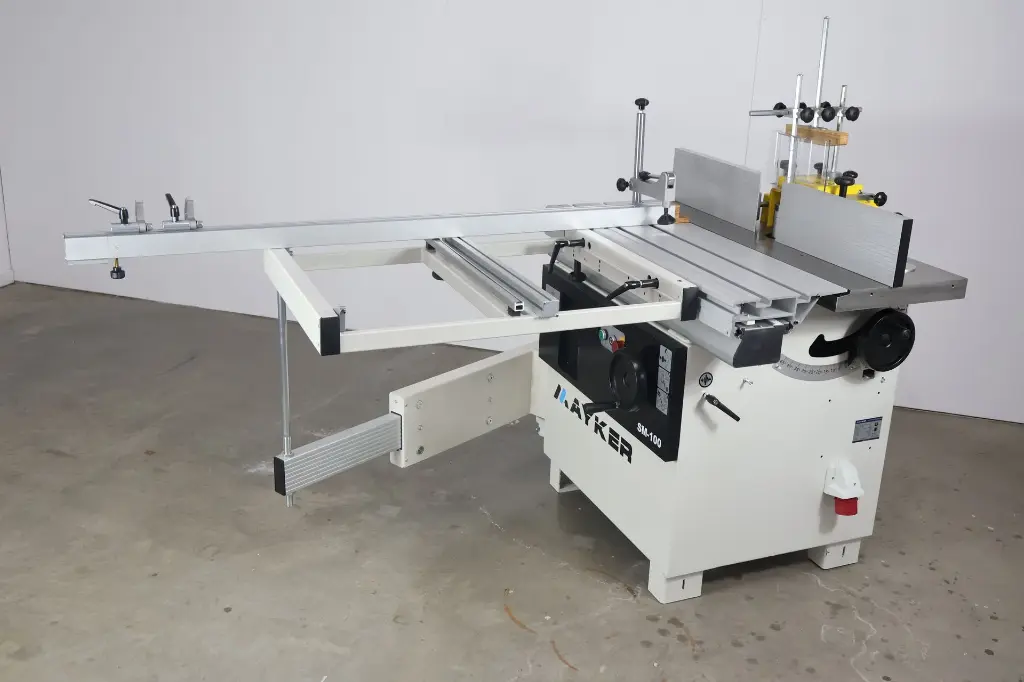

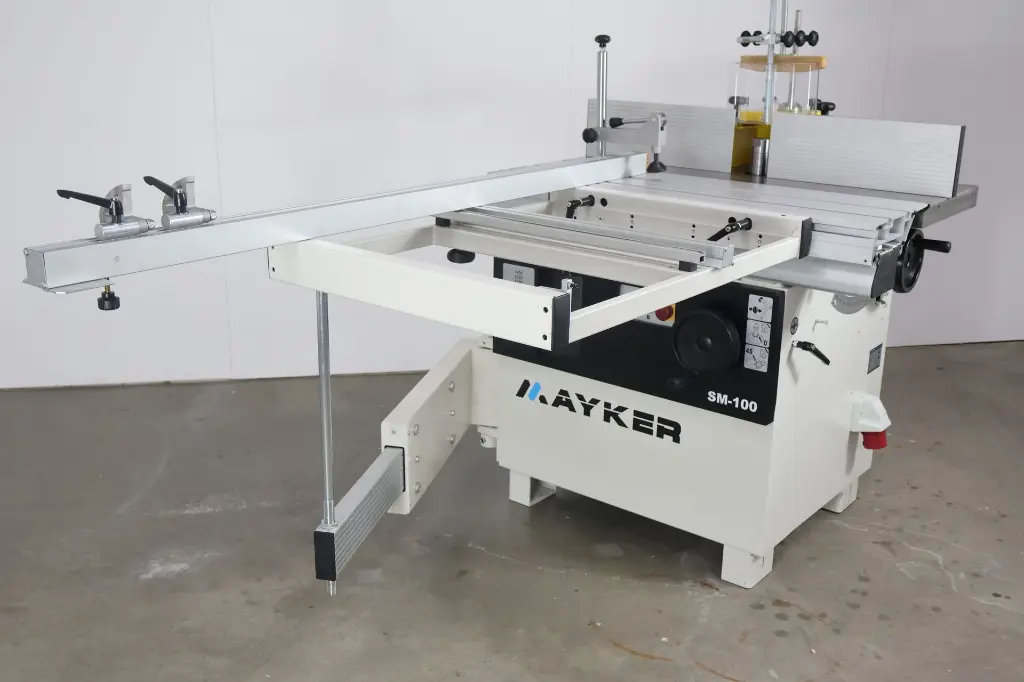

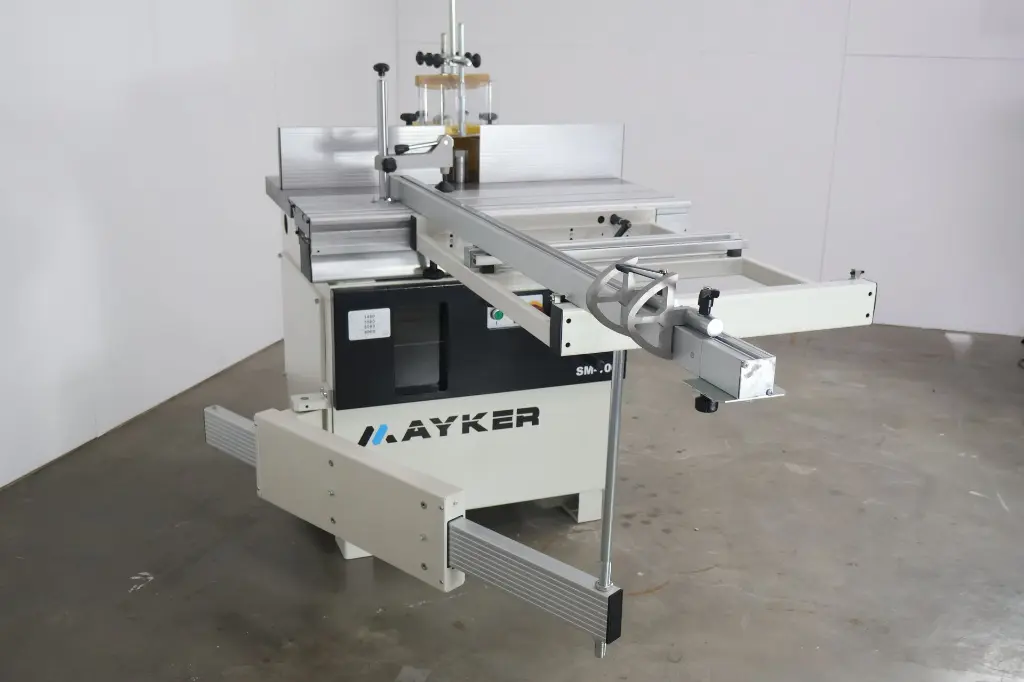

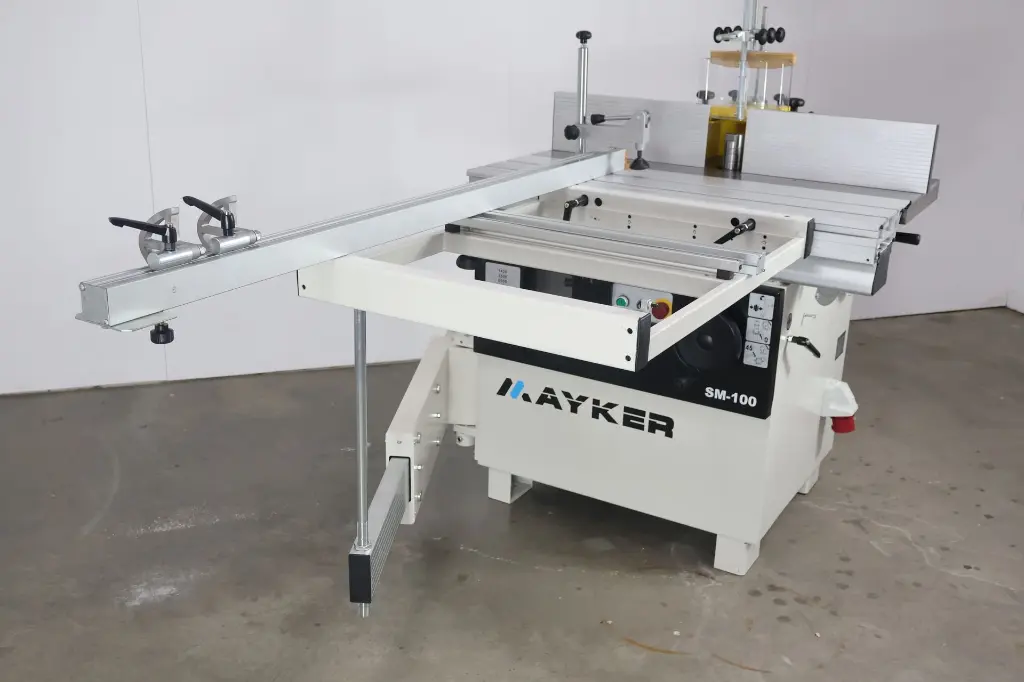

Mayker SM100 Spindle Moulder
Precision and Durability for Professional Workshops
The SM100 Spindle Moulder is expertly crafted for professional workshops, offering unmatched accuracy and durability. Its cast iron bed, precision-ground surface, and robust construction ensure both stability and longevity. This machine is designed to handle intricate moulding tasks with ease, making it an essential tool for any woodworking professional.

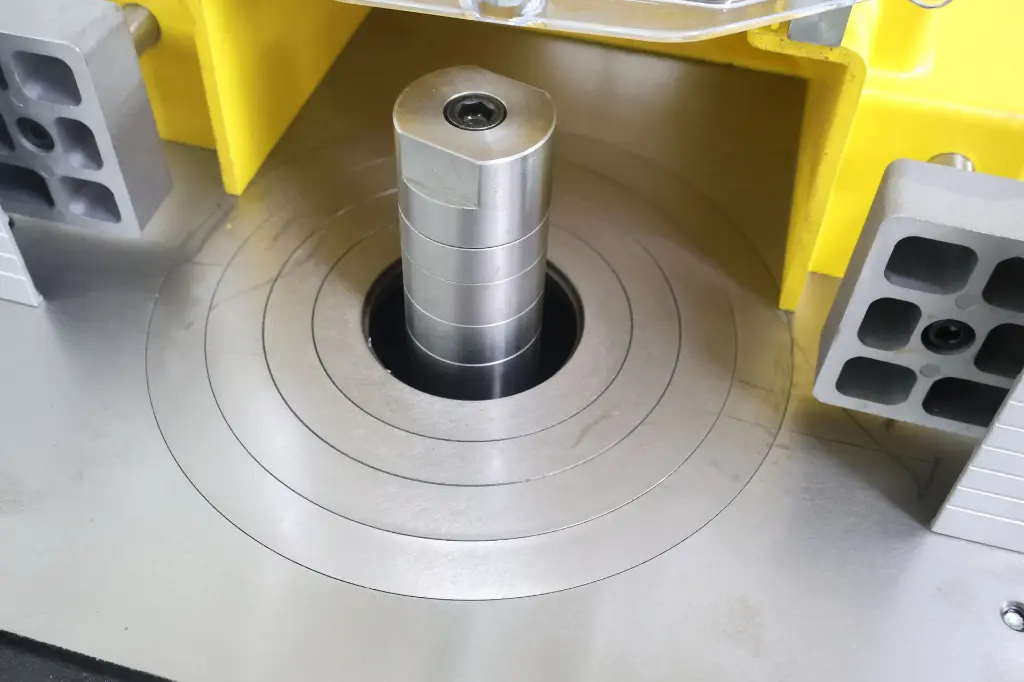

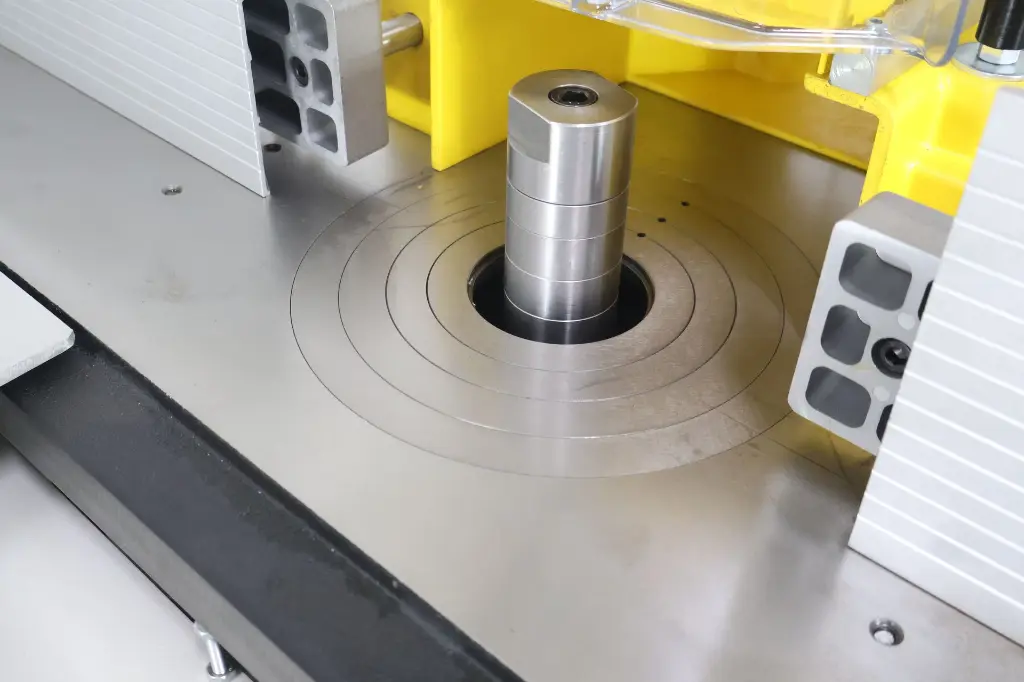

- Spindle Diameter: 30mm (optional 32, 35, or 40mm)

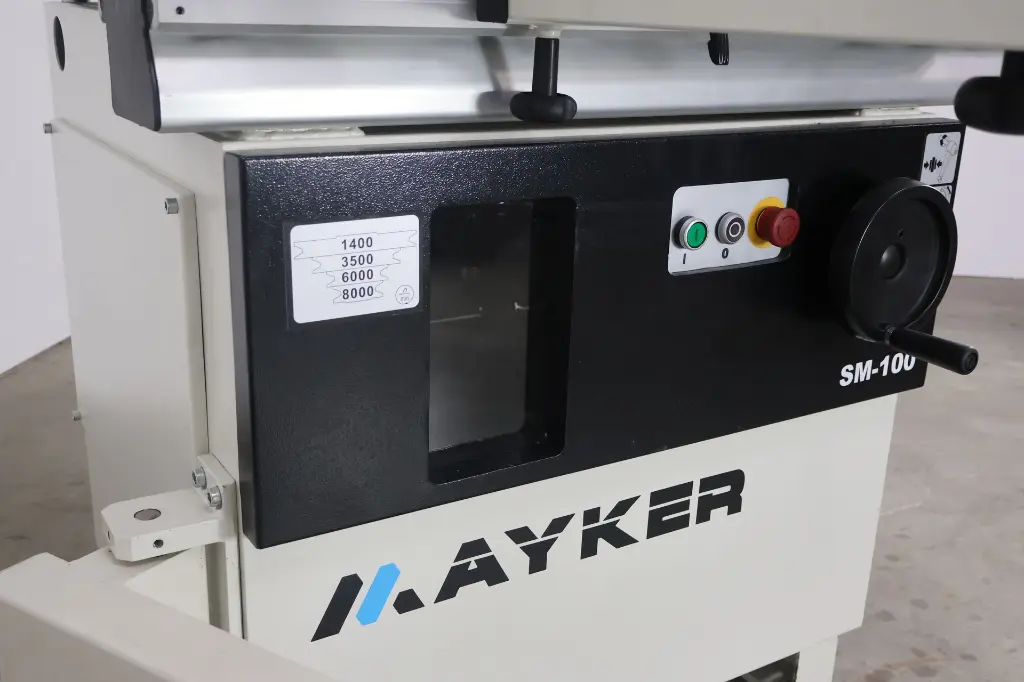

- Spindle Speed Range: 1400/3500/6000/8000 RPM
- Maximum Tool Diameter (Under Table): 175mm

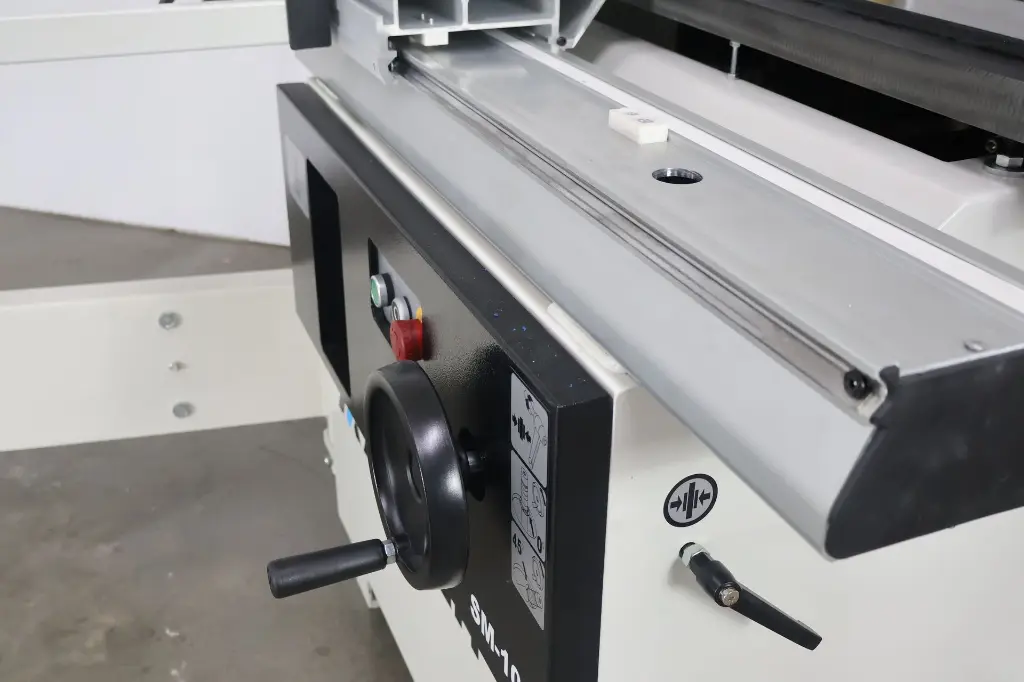

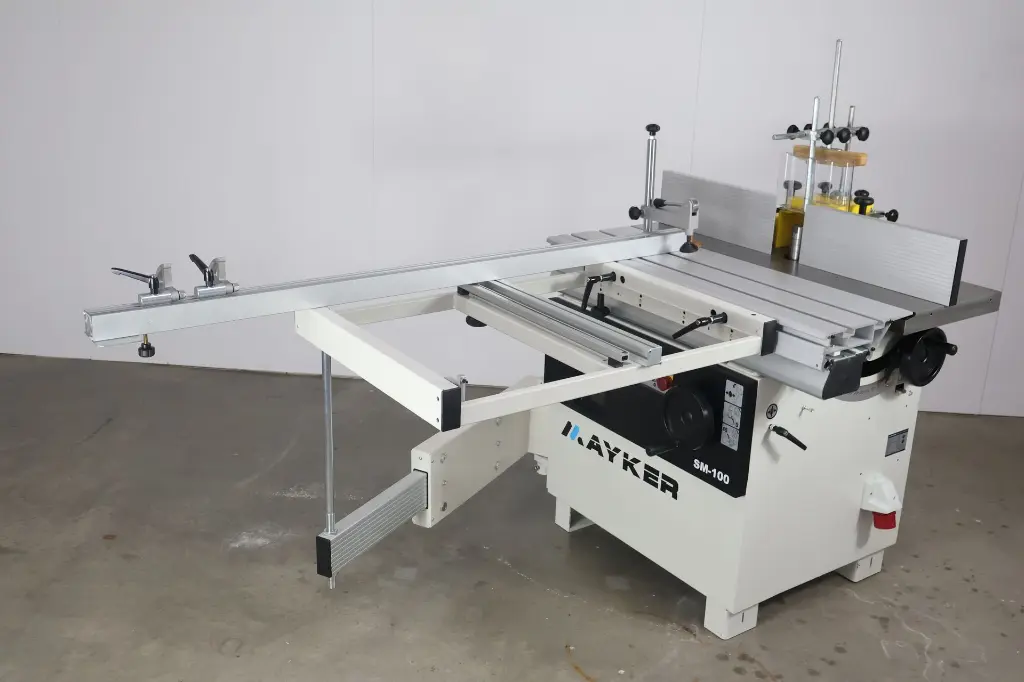

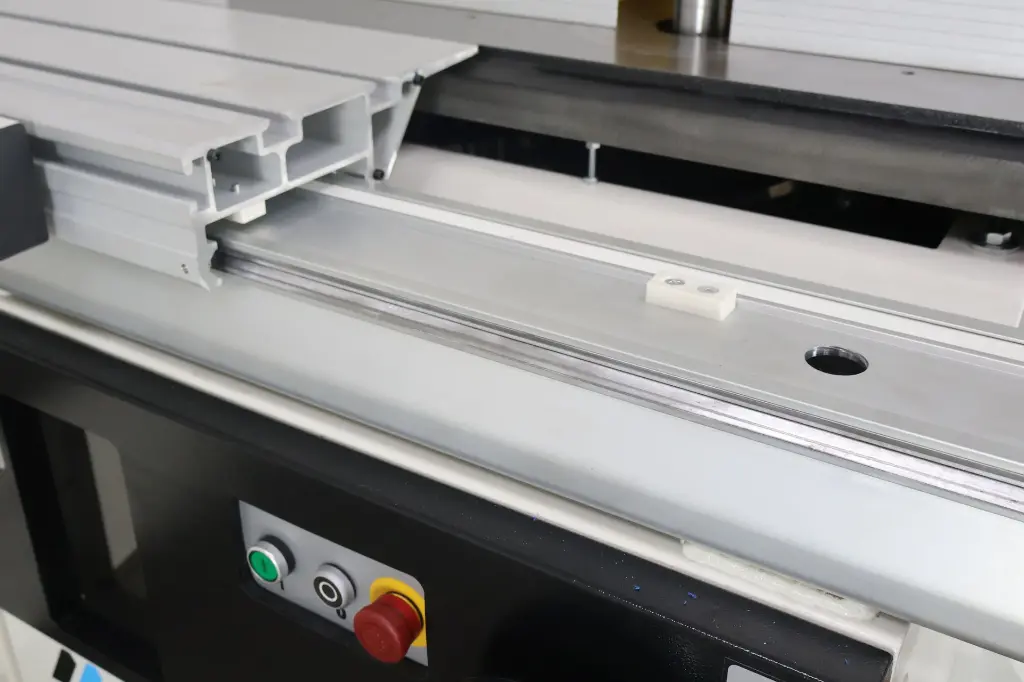

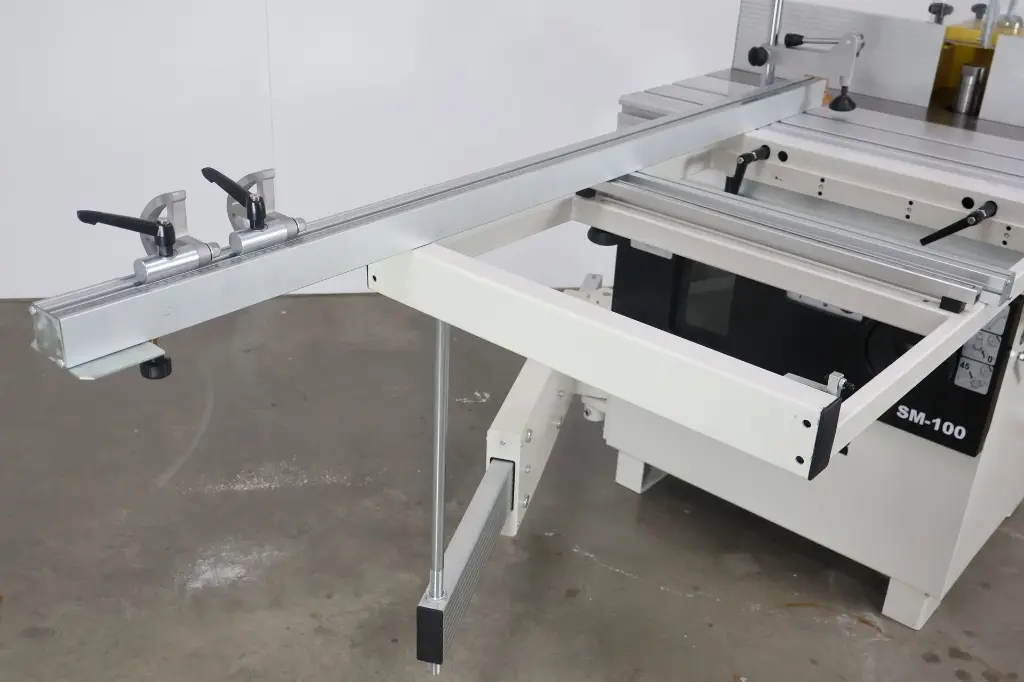

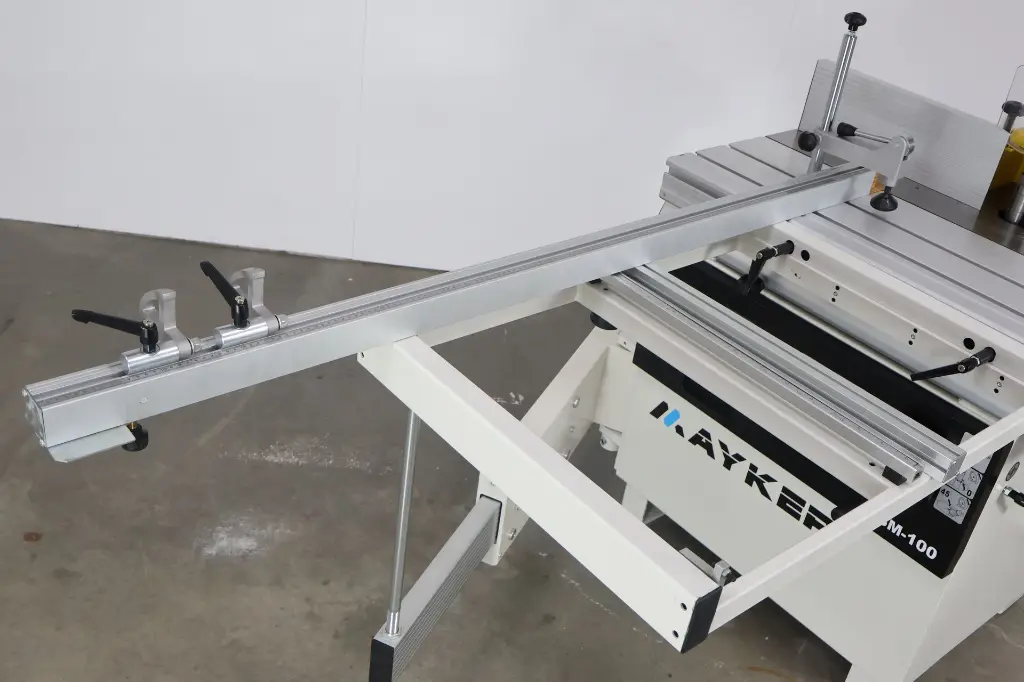

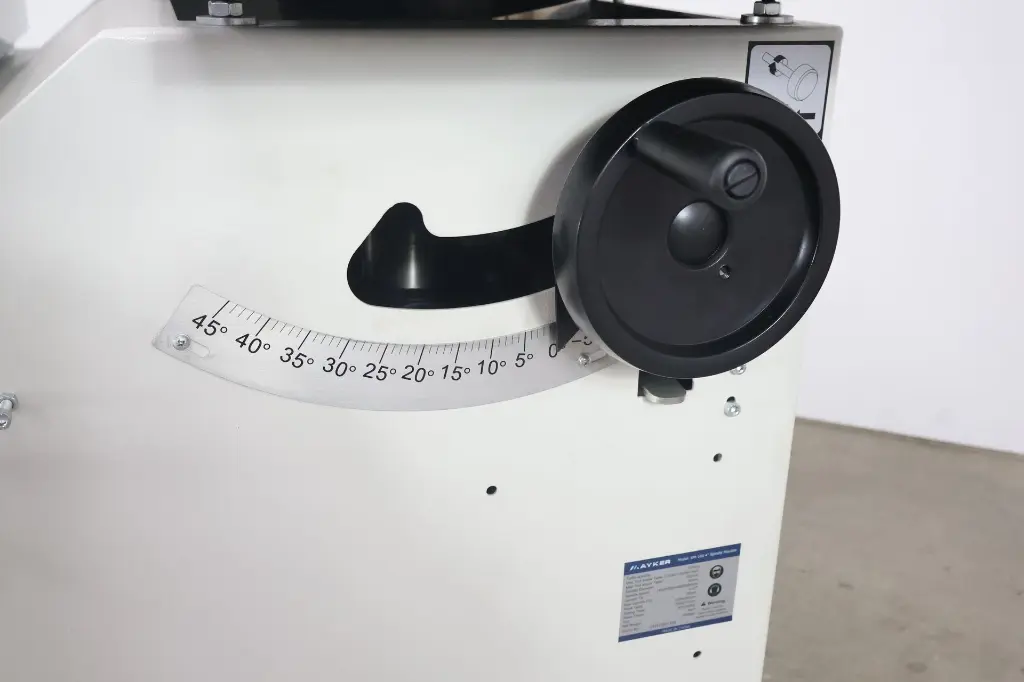

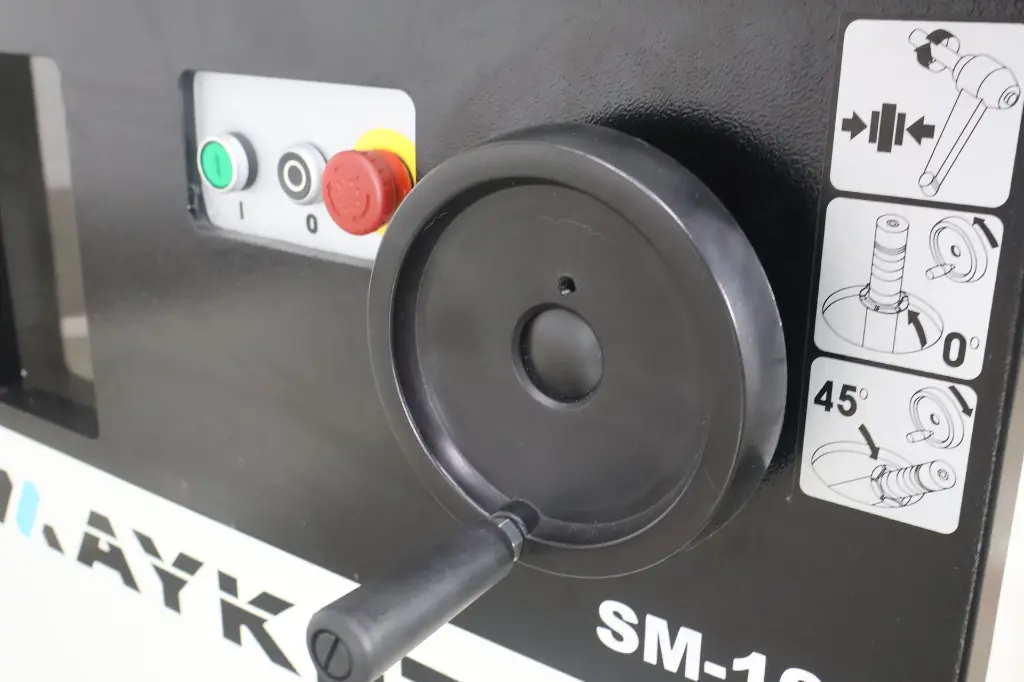

With a 1200mm sliding table for ultra-smooth gliding and a tilting spindle that adjusts from -5° to 45°, the SM100 delivers versatility for a wide range of applications. Whether handling small blocks or larger panel fielding cutters up to 200mm, this spindle moulder ensures precision and control at every stage.
Specifications – SM100 Spindle Moulder
| Feature | Specification |
|---|---|
| Spindle Diameter | 30mm (32/35/40mm optional) |

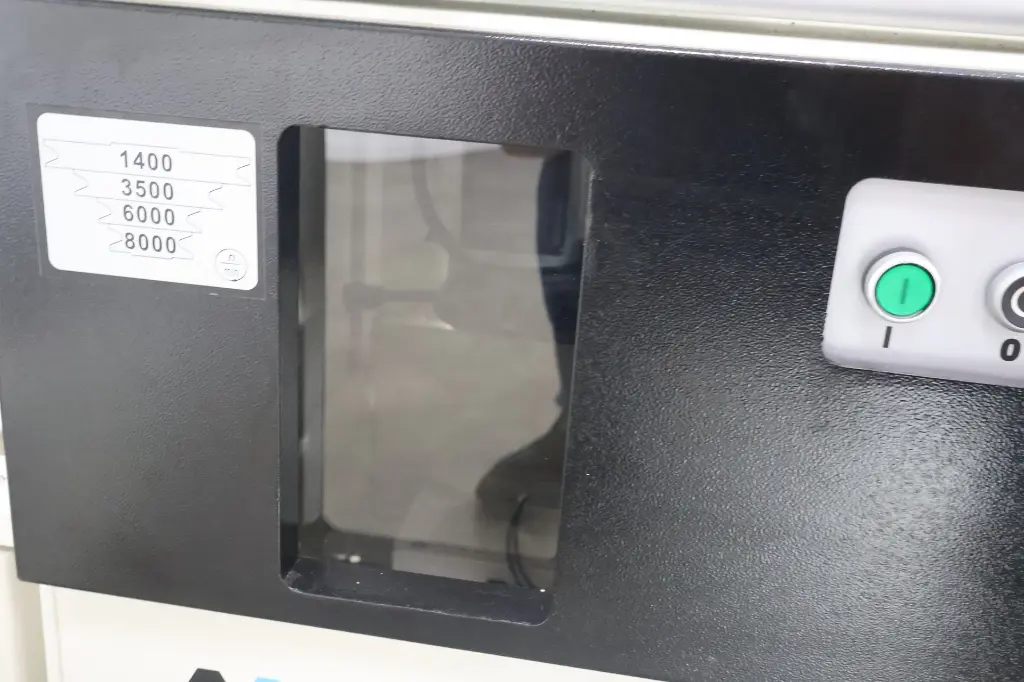

| Spindle Speeds | 1400/3500/6000/8000 RPM |
| Max Spindle Stroke | 140mm |
| Spindle Length | 130mm |

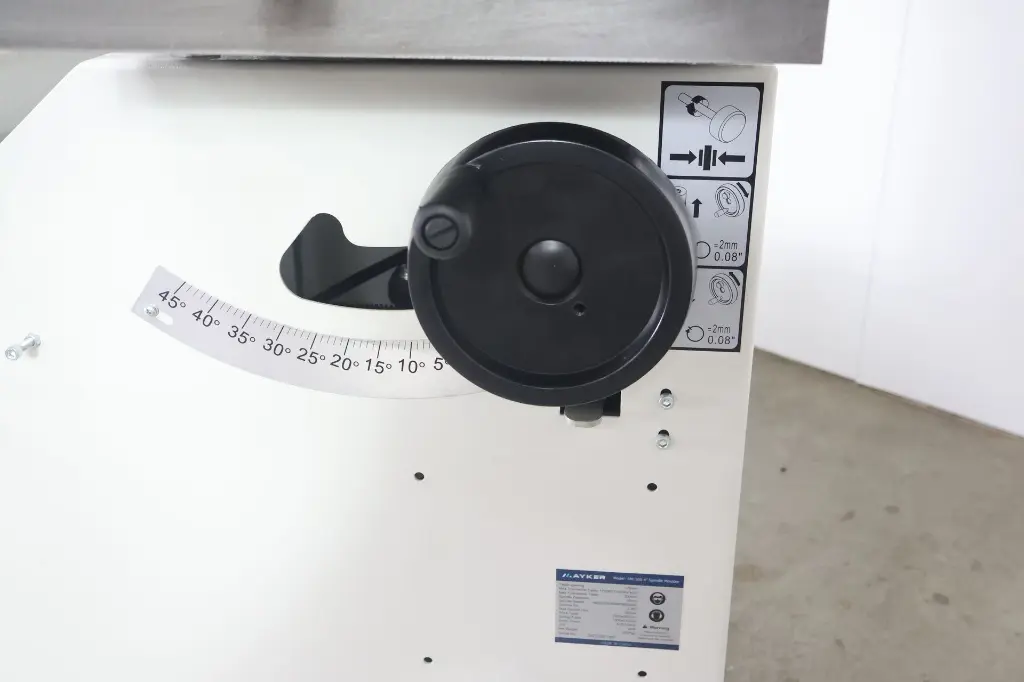

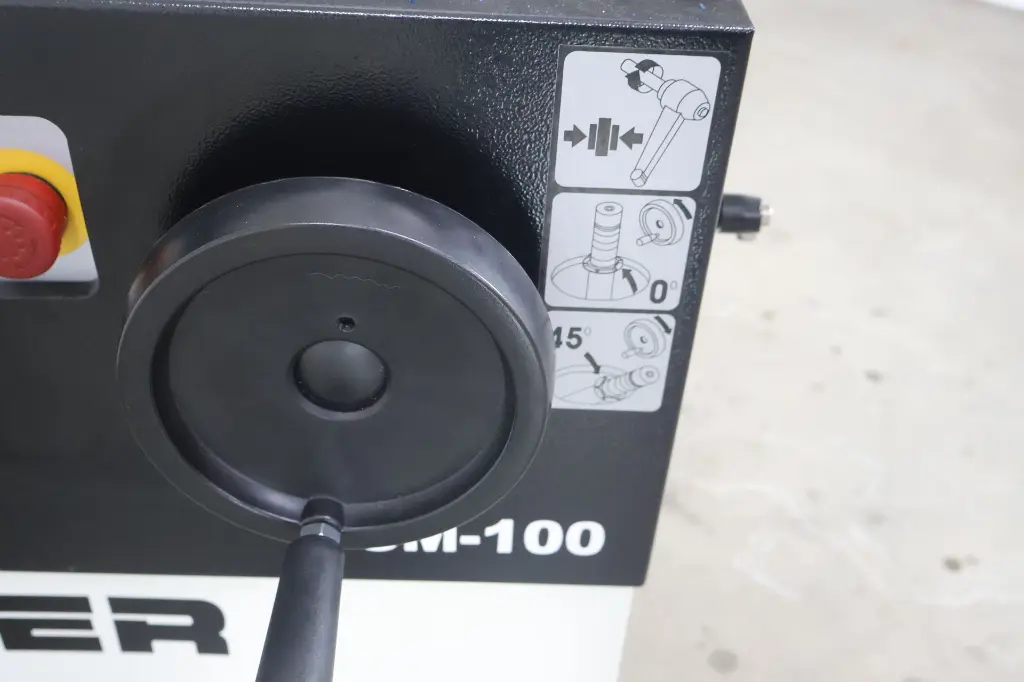

| Spindle Tilting | -5° to 45° |
| Max Diameter of Table Opening | 220mm |
| Max Tool Diameter (Under Table) | 175mm |
| Max Tool Diameter (Above Table) | 200/250mm |
| Height of Table | 890mm |
| Max Height of Machine | 1300mm |
| Table Size | 1000x350mm |
| Suction Dust Hood Diameter | 100mm |

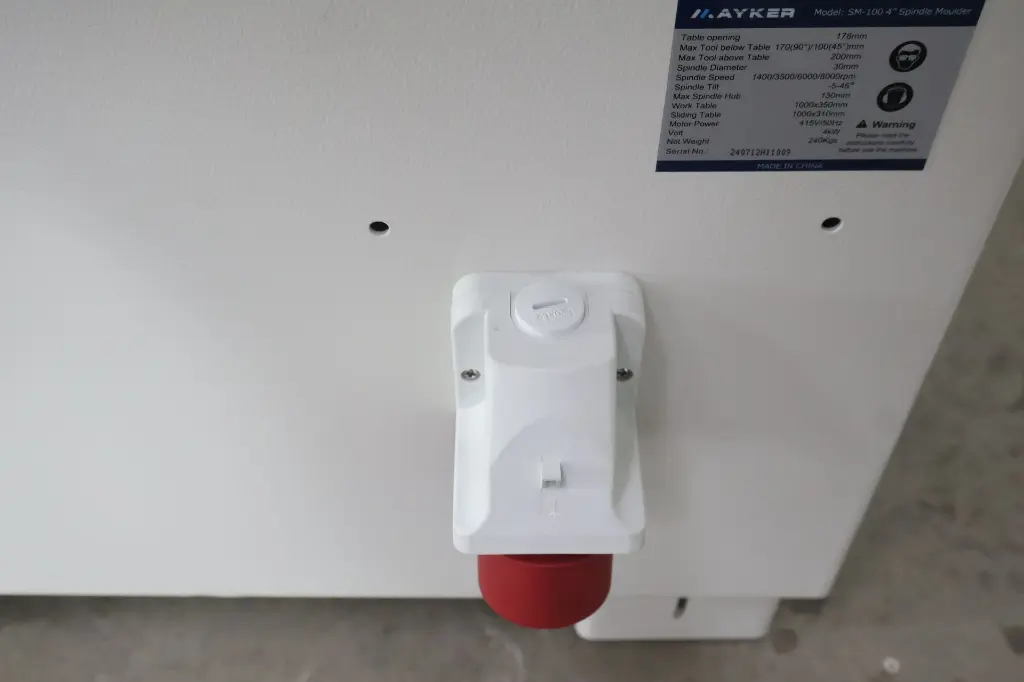

| Motor Options | Single-phase: 3kW S6 |
| Three-phase: 4kW S6 | |
| Net/Gross Weight | 235kg / 280kg |
| Package Size | 1150x900x1085mm |
| Container Load Qty | 20' Container: 24 |
| 40'GP Container: 52 |
